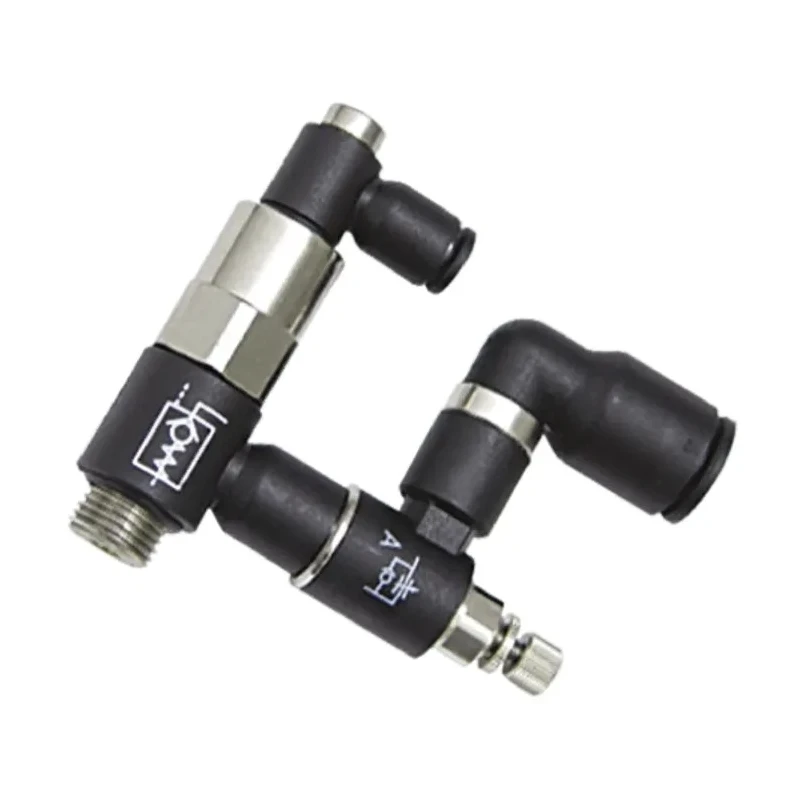

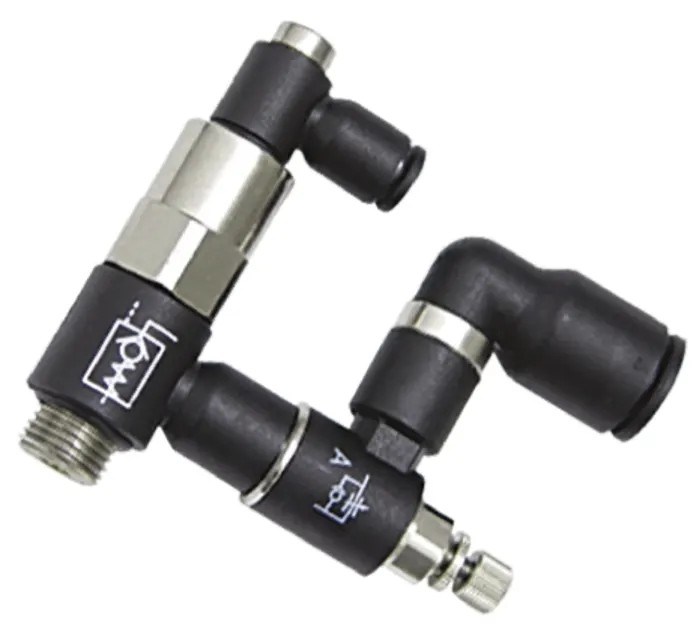

Legris Pneumatic Solenoid Valve Pilot G 3/8 in Port Size 10 bar Pressure 7894 10 17
Specifications
| Country of Origin | India |
|---|---|
| Brand | Legris |
| Body Material | Polymer, Nickel Plated Brass |
| Maximum Operating Pressure | 10 bar |
| Series | 7894 |
| Maximum Operating Temperature | 60°C |
| Thread Size | 3/8 in |
| Port Size | 3/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Pilot |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 1bar |
| Valve Function | Non-Return, Manual Exhaust, Flow Control |
Key Features
- Constructed with polymer and nickel plated brass body for enhanced durability.
- Equipped with nitrile rubber (NBR) seals to ensure reliable sealing performance.
- Operates within temperature range of -5°C to 60°C.
- Valve functions include non-return, manual exhaust, and flow control operations.
- Ports are configurable to fit diverse pneumatic system layouts.
- Minimum pilot pressure requirement of 1 bar for efficient valve actuation.
- Complies with machinery directive 2006/42/EC for safety and performance standards.
- Ideal for automotive and food process pneumatic installations.
Product Description
Legris 7894 10 17 pneumatic solenoid valve is a pilot-actuated valve designed for industrial and pneumatic system applications. It features a 3/8 inch G thread port size and operates up to a pressure of 10 bar, making it suitable for demanding pneumatic control tasks.
The valve body is crafted from polymer combined with nickel plated brass, providing excellent corrosion resistance and mechanical strength. Sealing is ensured by nitrile rubber (NBR) material, offering reliable operation across a temperature range from -5°C to 60°C.
This valve combines multiple functions including non-return to prevent backflow, manual exhaust for controlled venting, and flow control to regulate air movement. The pilot valve design requires a minimum pressure of 1 bar to actuate, enhancing system responsiveness.
The ports on the valve can be oriented flexibly to accommodate various pneumatic system configurations. The product conforms to the European machinery directive 2006/42/EC, underscoring its compliance with safety and regulatory standards.
Commonly used in automotive manufacturing and food processing lines, this valve supports safer pneumatic installations by integrating a stop cylinder, flow regulator, and manual vent button within a single unit.
Constructed with a robust polymer and nickel plated brass body. Features nitrile rubber seals for effective sealing. Maximum operating pressure of 10 bar ensures reliability. Multiple valve functions enhance operational versatility.
Flexible port placement suits diverse system needs. Conforms to machinery directive 2006/42/EC. Designed for automotive and food process pneumatic applications. Explore more Pneumatic Solenoid Valves and components in the Industrial Valves category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
The valve body is made from polymer and nickel plated brass, while the seals are constructed from nitrile rubber (NBR).
This valve requires a minimum pilot pressure of 1 bar for efficient actuation.
It operates within a temperature range of -5°C to 60°C.
It features non-return, manual exhaust, and flow control functions.
The port size is 3/8 inch with a G thread standard.
It is commonly used in automotive manufacturing and food processing installations.
This model complies with the European machinery directive 2006/42/EC for safety and performance standards.
Yes, the ports are configurable to fit diverse pneumatic system layouts.
The actuation type of this valve is pilot.
The weight of this model is not specified in the provided data.
The nitrile rubber seals ensure reliable sealing performance during operation.
