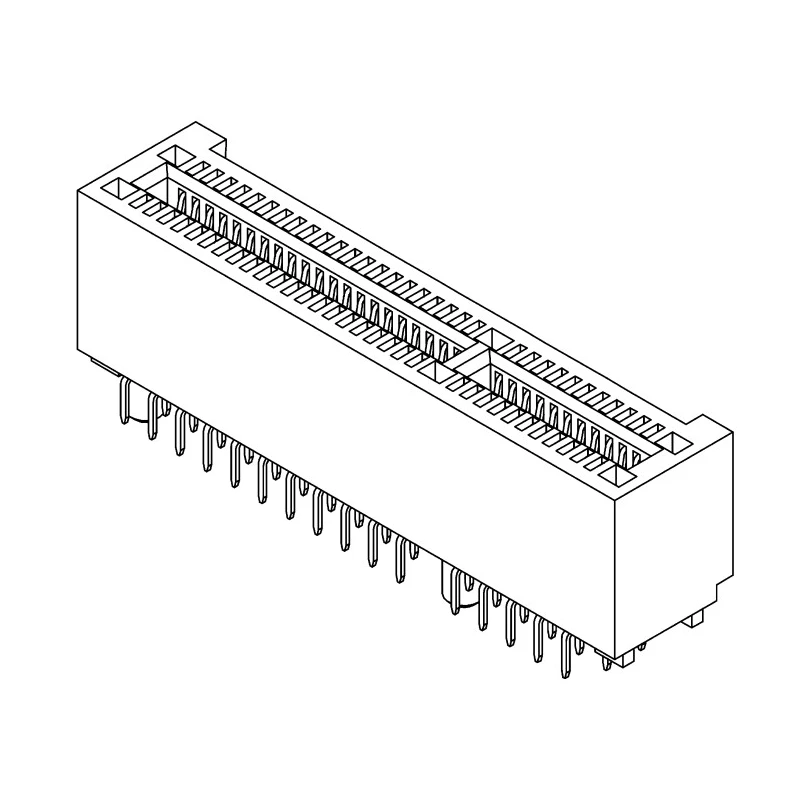

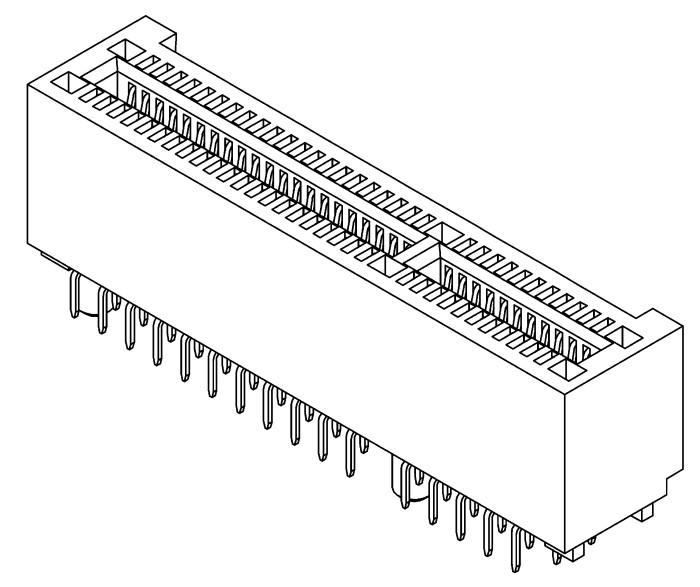

Samtec PCIe Series Straight Edge Connector Female, Through Hole, 164-Contacts, 1 mm Pitch, 2 Row, Solder PCIE-164-02-F-D-TH

Samtec PCIE-164-02-F-D-TH PCIe Series Straight Edge Connector Female is engineered to deliver reliable connections in electronic and electrical applications. This edge connector features 164 contacts arranged in two rows with a precise 1 mm pitch, suitable for PCI Express cards with a thickness of 1.6 mm. The connector is designed for through hole mounting and solder termination, ensuring durability and strong mechanical support on printed circuit boards.

The contacts are fabricated from phosphor bronze and plated with gold over nickel, enhancing electrical conductivity and corrosion resistance. The nylon housing offers robust insulation and protection for the contacts while maintaining structural integrity under operating conditions ranging from -55°C to 125°C.

Rated for a maximum current of 2.5 amperes and voltage of 215 volts, this connector is intended for demanding industrial, manufacturing, laboratory, and commercial electronics environments. It supports PCI Express card applications requiring high-density connections with reliable performance.

The connector's straight orientation and through hole mount type facilitate integration into various PCB designs, providing stable and precise connection points for edge card sockets.

Supports 2.5 A current with a voltage rating of 215 V. Constructed with phosphor bronze contacts plated gold over nickel for reliable conductivity. Nylon housing providing durable insulation and structural stability. Suitable for PCI Express card applications with a 1.6 mm card thickness compatibility.

Operating temperature range from -55°C to 125°C for versatile industrial use. Through hole mounting for secure PCB attachment and solder termination. Straight orientation ideal for edge connector applications. Compliant with no specific standards or approvals indicated.

This product is suitable for use in various electronics and electrical systems including industrial automation, instrumentation, computing devices, and telecommunications. It is part of Samtec’s PCIe Series designed for high reliability and precision applications.
