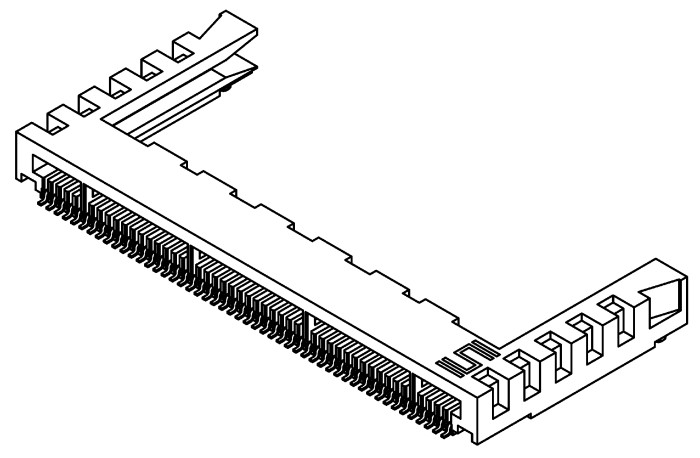

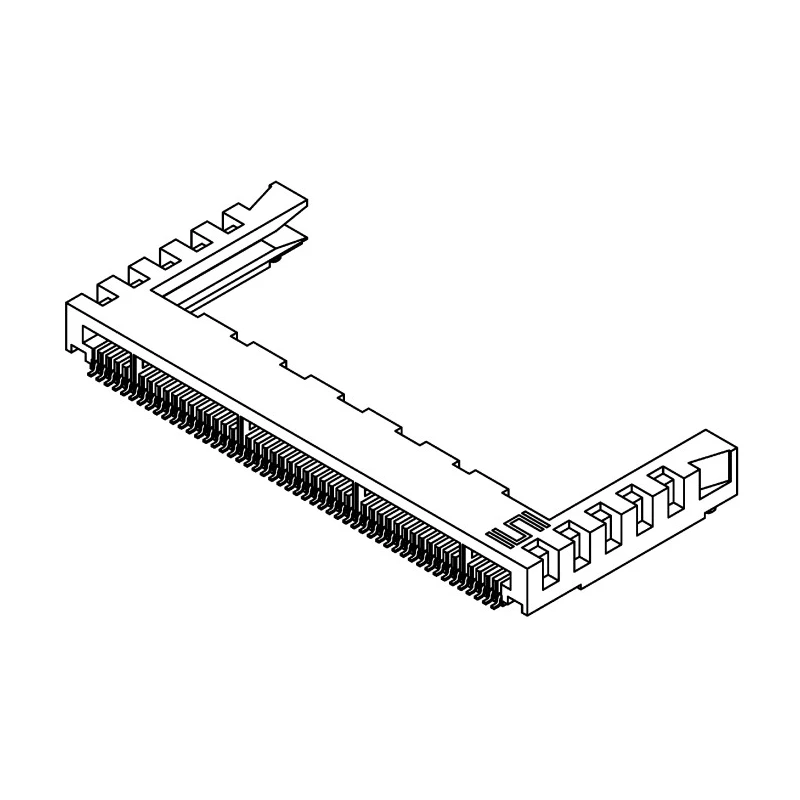

Samtec MB1 Series Straight Edge Connector Female Surface Mount 40 Contacts 1 mm Pitch 1 Row Solder MB1-140-01-L-S-02-SL

Samtec MB1-140-01-L-S-02-SL is a straight edge connector female designed for surface mounting with 40 contacts arranged in a single row at a 1 mm pitch. This connector is engineered for reliable solder termination applications in electronic assemblies.

The contacts are plated with gold over nickel, providing excellent conductivity and resistance to corrosion. The contact material consists of a beryllium copper alloy, ensuring durability and strong electrical performance. The housing is constructed from liquid crystal polymer with a black LCP insulator, offering high-grade insulation and thermal stability.

Compatible with 1.6 mm thick cards, the MB1 Series connector features an insertion depth ranging between 5.26 mm and 6.1 mm, designed for precision and secure card interfacing. Operating temperature parameters range from -55°C to 125°C, making it suitable for various industrial and electronic environments.

This edge connector supports a maximum current of 2.2A, suitable for demanding electrical applications. The single row 40-contact configuration facilitates compact and efficient circuit designs. It is particularly useful in electronics manufacturing, computing devices, and PCB assembly industries requiring robust and consistent edge connections.

This Edge Connector features a straight orientation suitable for surface mounting. It supports a maximum current of 2.2 amps for reliable electrical performance. The contact plating is gold over nickel, offering enhanced conductivity and corrosion resistance.

Manufactured from beryllium copper alloy contacts, it ensures durability and optimal electrical properties. The housing is made of liquid crystal polymer with black LCP insulator material for robust insulation. Card thickness compatibility is 1.6 mm with an operating temperature range from -55°C to 125°C.

Termination type is solder for secure and permanent connections. This connector is part of the MB1 Series with 1 mm pitch mini edge card sockets and guides.

Ideal for use in industrial, electronic components, and manufacturing sectors, the MB1 Series connectors deliver precise and stable electrical connections for edge card applications. Explore the EnvMart catalog for more connectors and electronic components to enhance your projects.
