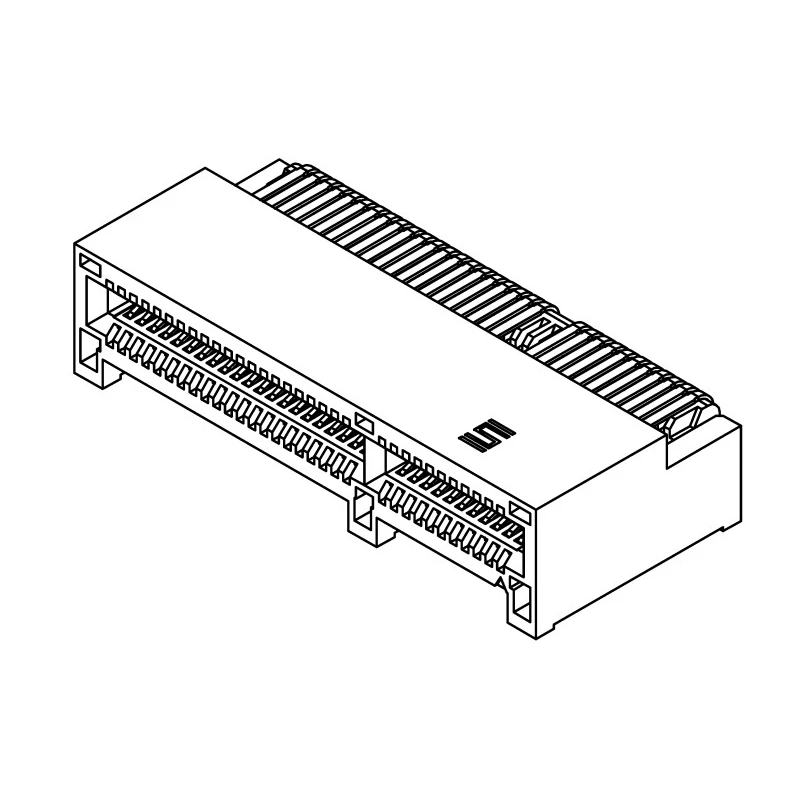

Samtec PCIe Series Right Angle Edge Connector Female, Through Hole, 98-Contacts, 1 mm Pitch, 2 Row, Solder PCIE-098-02-F-D-RA

Samtec PCIE-098-02-F-D-RA is a high-quality PCIe Series right angle edge connector designed for reliable electronic component connections in industrial, computing, and manufacturing applications.

It features 98 female contacts arranged in 2 rows with a pitch of 1 mm, suitable for PCI Express cards with a standard card thickness of 1.6 mm. The connector employs gold over nickel plated phosphor bronze contacts which ensure excellent conductivity and corrosion resistance.

The connector housing is made from robust nylon material, providing mechanical strength and insulation. Operating temperature range is from -55°C to 125°C, enabling use in demanding environments. It supports a maximum current of 2.5 A and voltage of 215 V, making it suitable for a variety of electronic applications.

The mount type is through hole with a solder termination to provide strong and durable PCB attachment. The right angle orientation minimizes PCB space usage and enhances assembly flexibility.

Phosphor bronze contacts with gold over nickel plating. Durable nylon housing material for insulation. Designed for 1.6 mm PCI Express cards. Operating range from -55°C to 125°C. Rated for 2.5 A current and 215 V voltage.

Solder termination ensures secure PCB mounting. Right angle orientation for efficient PCB design. Complies with PCIe series standards.

This Edge Connector is ideal for a wide range of uses including industrial automation, computing equipment, manufacturing testing setups, and electronic assemblies requiring robust PCI Express connectivity.
