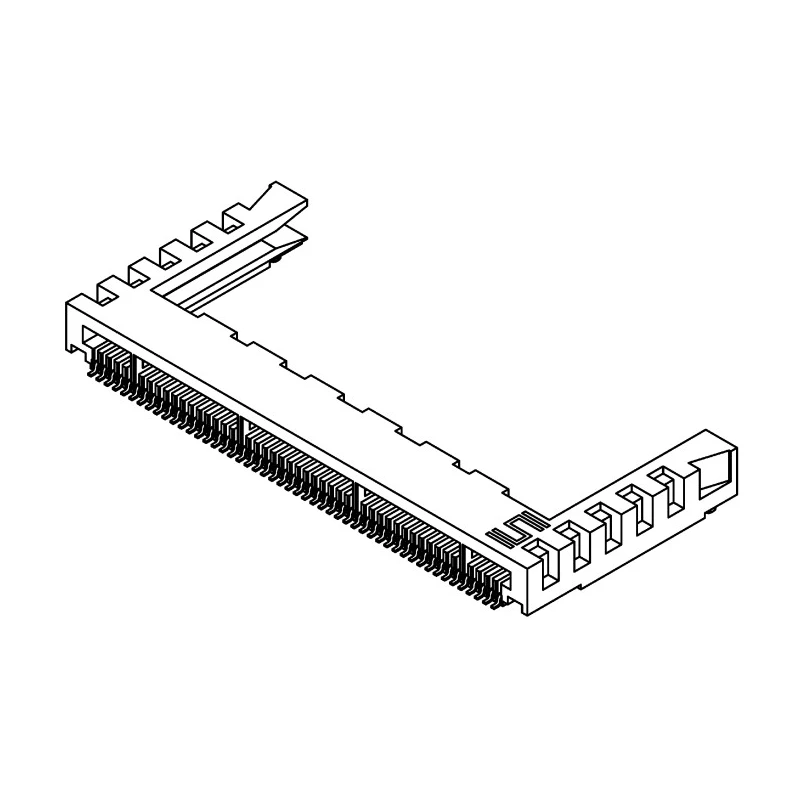

Samtec MB1 Series Straight Edge Connector Female, Surface Mount, 40 Contacts, 1 mm Pitch, 1 Row, Solder MB1-140-01-L-S-02-SL

Samtec MB1-140-01-L-S-02-SL is an MB1 Series straight edge connector engineered for surface mount applications requiring precise and reliable connections. This female connector features 40 contacts arranged in a single row with a 1 mm pitch, designed to accommodate 1.6 mm thick edge cards with an insertion depth ranging from 5.26 to 6.1 mm. The contact material is beryllium copper alloy, with gold plating over nickel, ensuring excellent conductivity and resistance to wear and corrosion.

The connector housing is constructed from a high-performance liquid crystal polymer (LCP), with an insulating layer of black LCP, providing robust mechanical stability and thermal endurance. This allows operation across a broad temperature range from minus 55 degrees Celsius to 125 degrees Celsius, making it suitable for industrial, electronic manufacturing, and telecommunications equipment.

The solder termination type facilitates secure mounting on printed circuit boards, enhancing assembly reliability. The connector carries a current rating of 2.2 amperes, supporting moderate power demands in electronics and control systems. While no specific industry standards or certifications are listed, the construction quality adheres to common industrial needs.

Typical applications for this MB1 Series edge connector include use in computers, telecommunications hardware, industrial control modules, and other environments where compact, high-density edge interfaces are required. Its high precision and durable materials ensure long-lasting performance in demanding operational conditions.

Set includes one Samtec MB1 Series edge connector, ready for PCB assembly and surface mount applications, enhancing your hardware design's connectivity. Leverage Samtec's MB1 Series for trusted quality and mechanical robustness in electronic connector systems.

This connector supports a current rating of 2.2A for reliable electrical performance. The beryllium copper alloy contacts are plated with gold over nickel to ensure durability and corrosion resistance. It is compatible with 1.6 mm thick cards, providing insertion depth between 5.26 and 6.1 mm.

The housing is made from liquid crystal polymer with black LCP insulator material, enabling high mechanical strength. Operating temperature ranges from -55°C to 125°C, suitable for demanding industrial environments. Termination type is solder for a secure and permanent PCB connection.

The connector's compact 1-row layout with 40 contacts suits edge card interfacing in electronics systems. No specific standards or approvals are indicated for this model.

EnvMart offers this Samtec MB1 Series Straight Edge Connector as part of a comprehensive range of electronic components, ideal for demanding industrial and commercial electronics assembly needs.
