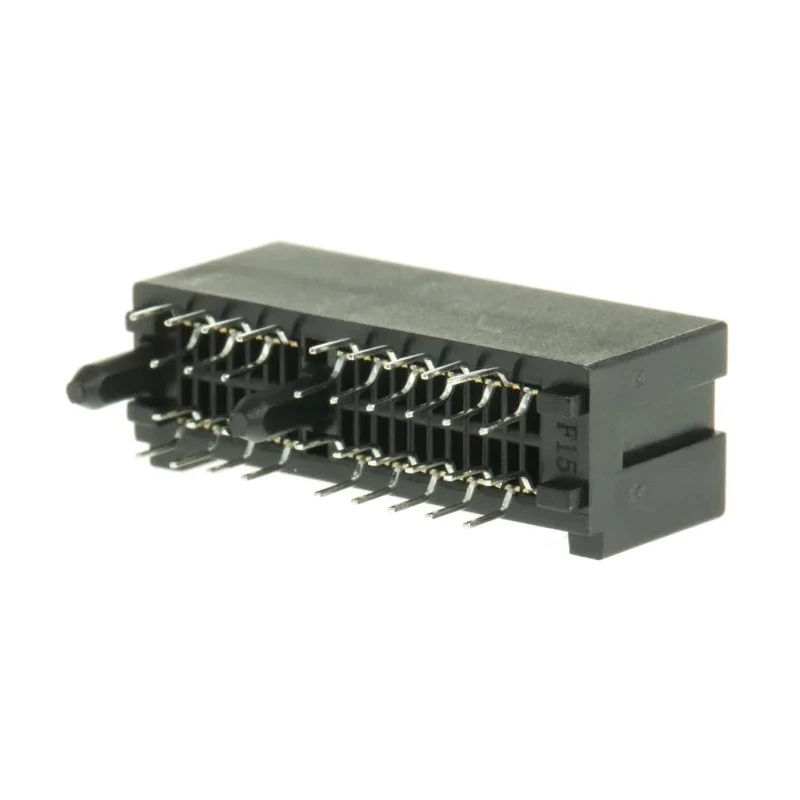

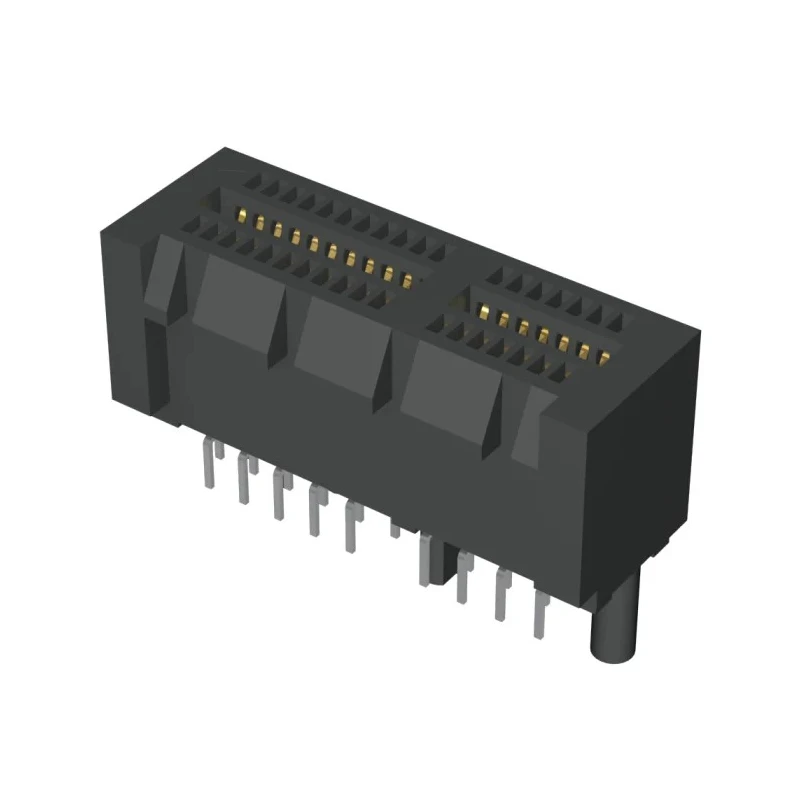

Samtec PCIe Series Straight Edge Connector Female, Through Hole, 36-Contacts, 1 mm Pitch, 2 Row, Solder PCIE-036-02-F-D-TH

Free Delivery in India | Lowest Global Shipping Charges

Samtec PCIe Series Straight Edge Connector Female, Through Hole, 36-Contacts, 1 mm Pitch, 2 Row, Solder PCIE-036-02-F-D-TH

Name: Samtec PCIe Series Straight Edge Connector Female, Through Hole, 36-Contacts, 1 mm Pitch, 2 Row, Solder PCIE-036-02-F-D-TH
Brand: Samtec
SKU: 366732
Price: 2.33 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	215V ac
Brand	Samtec
Orientation	Straight
Current	2.5A
Model	PCIE-036-02-F-D-TH
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	PCIe
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1mm
Contact Plating	Gold over Nickel
Number of Contacts	36
Contact Gender	Female
Connector Gender	Female
Card Type	PCIe
Card Thickness	1.6mm

Key Features

This connector features a straight body orientation for easy integration on PCBs.
Rated for a current of 2.5A and 215V AC voltage, suitable for demanding electronic applications.
Contacts are made of highly conductive phosphor bronze with gold over nickel plating to ensure low resistance and corrosion resistance.
The connector is designed to accept 1.6mm thick expansion cards, providing compatibility with various PCIe devices.
Its nylon housing provides insulation and durability, supporting an operating temperature range from -55°C to 125°C.
The solder termination type allows for secure and reliable mounting through holes on the PCB.
Polarized design with alignment pins enables precise positioning and safe mating without damage.
Compact overall dimensions of 25 mm length, 7.5 mm width, and 11 mm depth fit densely packed PCB layouts.

Product Description

The Samtec PCIE-036-02-F-D-TH is a high-quality PCIe Series Straight Edge Connector Female, designed for secure and efficient PCB connections in demanding electronic assemblies. It features 36 gold-over-nickel plated phosphor bronze contacts configured in two rows with a 1 mm pitch suitable for through hole solder mounting.

Its straight orientation and robust nylon housing provide excellent electrical insulation and mechanical strength, making it suitable for harsh industrial environments. The connector supports a current rating of 2.5A and voltage up to 215V AC, enabling reliable signal and power transmission.

The device accepts 1.6 mm thick expansion cards and operates within a wide temperature range from -55°C to +125°C, allowing use in server rooms, gaming consoles, smart appliances, and military equipment. Its polarization and alignment pins ensure proper and damage-free connections, enhancing system reliability.

Measuring 25 mm long by 7.5 mm wide and 11 mm deep, the compact form factor facilitates high-density PCB layouts without sacrificing performance or durability. This connector features a straight body for easy PCB integration.

It supports 36 female contacts with a pitch of 1 mm. Gold over nickel plating resists corrosion and enhances conductivity. Polarized with alignment pins for precise positioning and damage prevention. Rated for 2.5A current and 215V AC voltage usage.

Nylon housing provides insulation and durability in harsh environments. Through hole solder termination ensures reliable mechanical stability. Compatible with 1.6 mm expansion card thickness. Wide operating temperature from -55°C to +125°C for industrial applications.

This Samtec edge connector is ideal for various industrial, commercial, and military electronic applications, providing reliable PCIe connectivity. Browse more Edge Connectors and related electronic components at EnvMart for your precise engineering needs.
