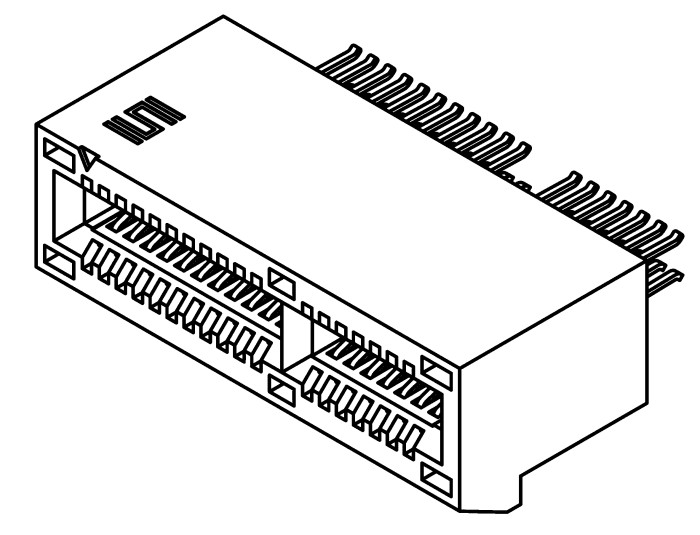

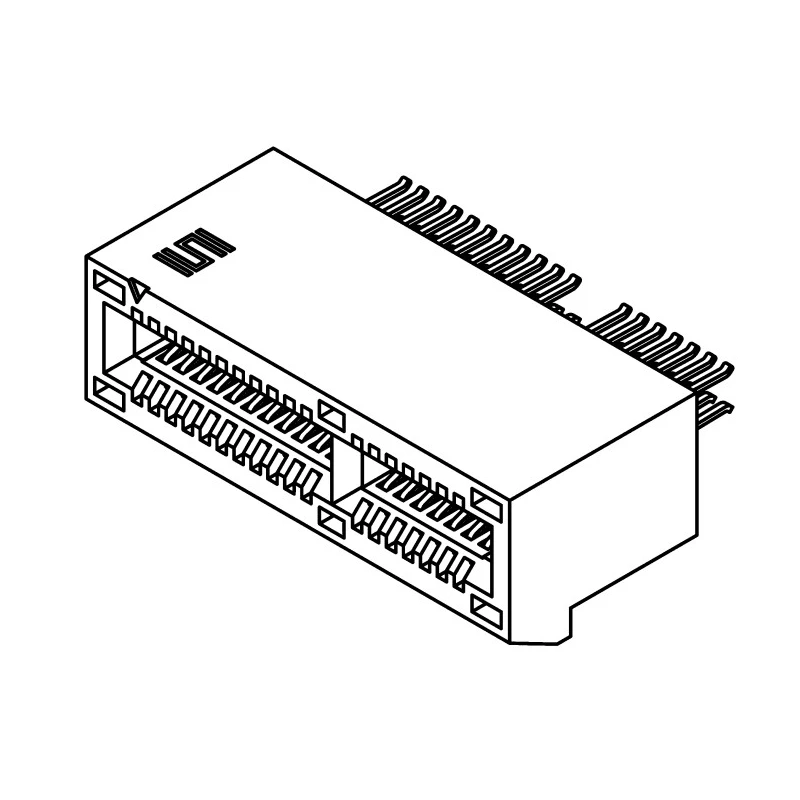

Samtec PCIe Series Straight Edge Connector Female 36-Contacts 1 mm Pitch 2 Row Solder PCIE-036-02-F-D-EMS2

Samtec PCIE-036-02-F-D-EMS2 PCIe Series Straight Edge Connector Female is an edge mount connector designed for 1.60 mm thick PCI EXPRESS cards. It features 36 contacts arranged in 2 rows with a 1 mm pitch to ensure compact and reliable interconnection for high-performance electronics.

The connector's contacts are made of phosphor bronze with gold over nickel plating on the contact surfaces and tin plating on the PCB tails, providing optimal electrical performance and durability. The housing is made of nylon, offering mechanical robustness and thermal stability.

This connector supports a current capacity of 2.5A and voltage ratings up to 215V, withstanding operating temperatures from -55°C to 125°C, making it suitable for demanding industrial, electronic manufacturing, laboratory, and commercial applications.

Its straight orientation edge mount design facilitates easy solder termination and reliable mechanical support on PCBs. The inclusion of a keying way prevents incorrect mating, enhancing system reliability.

The PCIe series connectors have nominal insertion depths of 8.0 mm for cards, with a board extension length of 11.05 mm and a width of 8.41 mm, ensuring compatibility with standard PCI EXPRESS cards.

Designed for PCI EXPRESS CARD applications with PCIe series sockets. Features gold over nickel contact plating for corrosion resistance. Phosphor bronze contacts and nylon housing provide durability. Operating temperature range from -55°C to 125°C.

Current rating of 2.5A and voltage rating up to 215V. Keying way ensures correct connection. Edge mount with straight orientation for 1.6 mm thick cards. Ideal for industrial, laboratory, manufacturing, and commercial PCB uses.
