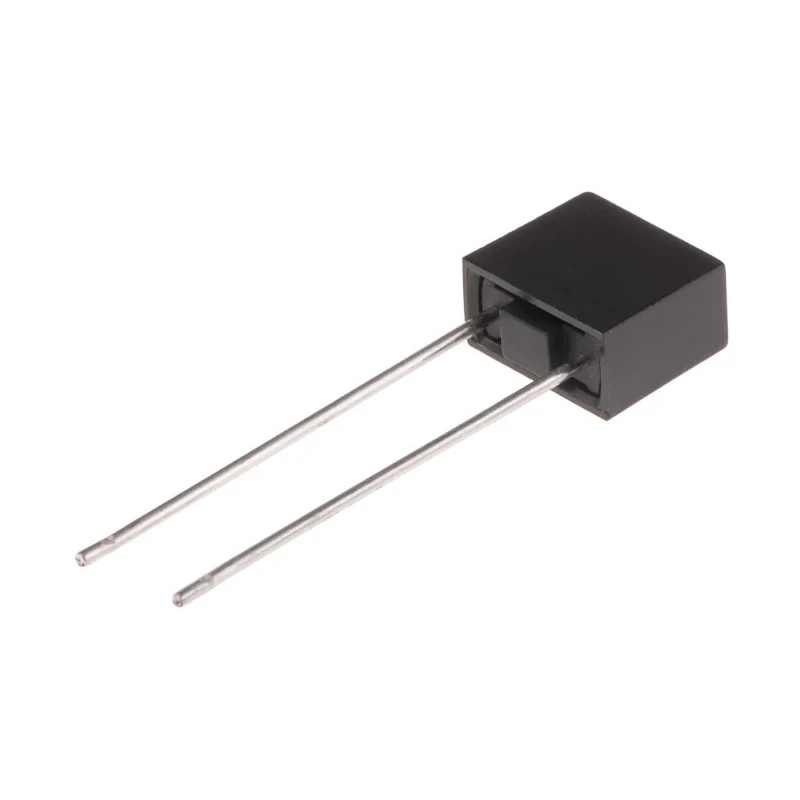

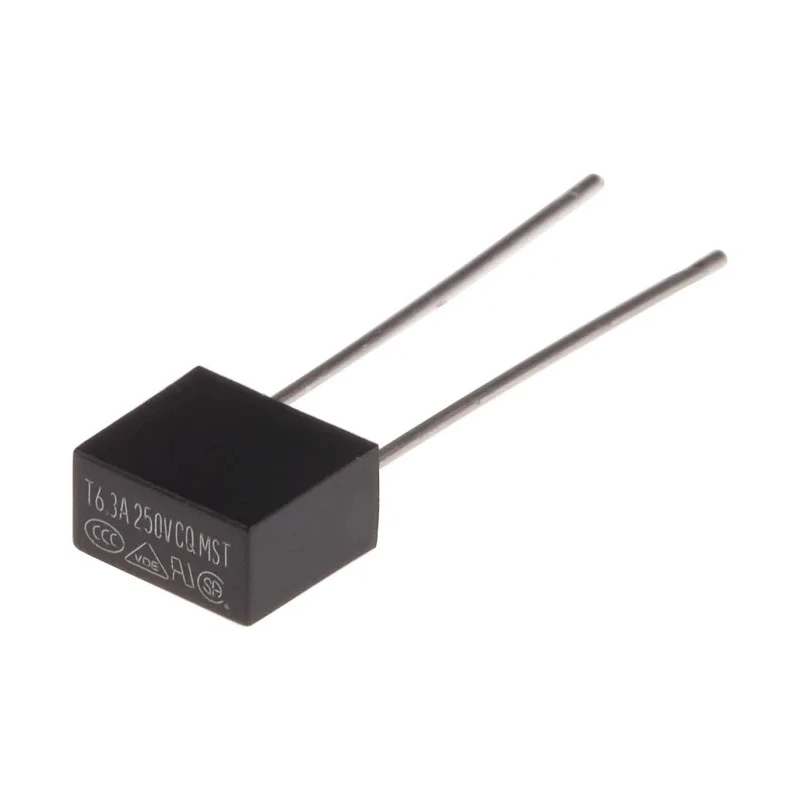

RS PRO Non-Resettable Fuse Radial 6.3A 250V AC Thermoplastic Body RS PRO 767-5068
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5068 |
| Width | 4.3mm |
| Current Rating | 6.3A |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | CSA, RoHS |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- The fuse body is made from durable thermoplastic material ensuring high safety standards.
- It features a time delay fuse characteristic suitable for various electrical applications.
- The fuse supports a breaking capacity of 35A for safe interruption of fault currents.
- Operating temperature ranges between -55°C minimum and 125°C maximum for industrial robustness.
- Its compact size includes dimensions with length 8.35mm, width 4.3mm, height 7.7mm, and lead length 22mm.
- Radial lead orientation and 0.62mm diameter tin-plated copper pins ensure easy PCB mounting.
- Certified to CSA and RoHS standards, ideal for electrical and automation systems.
- Built to withstand harsh conditions including vibration, thermal shock, and salt spray as per MIL-STD requirements.
Product Description
RS PRO 767-5068 is a Non-Resettable Fuse with radial leads, rated at 6.3A current and 250V AC voltage, providing effective circuit protection in industrial and electronic environments. Its thermoplastic body ensures electrical insulation and durability under demanding conditions.
This fuse is ideal for use in electrical automation, control gear, and other industrial applications requiring reliable protection against overcurrent. The time delay characteristic allows it to tolerate temporary surges without nuisance blowing.
It has a robust design featuring a breaking capacity of 35A, making it capable of safely interrupting fault currents. The temperature range from -55°C to 125°C supports operation in extreme environments.
The radial lead configuration and precise dimensions (8.35mm length, 4.3mm width, 7.7mm height, 22mm lead length) enable straightforward PCB installation. Tin-plated copper pins with 0.62mm diameter enhance conductivity and resistance to corrosion.
Compliance with CSA and RoHS standards guarantees adherence to safety, environmental, and quality requirements. The fuse also passes rigorous tests for vibration, salt spray exposure, thermal shock, and resistance to solder heat according to MIL-STD-202G norms.
Manufactured in Taiwan, this RS PRO fuse is a dependable component for use in electronics manufacturing, industrial control systems, and automation equipment, offering long-term protection and reliability.
The fuse body is made from durable thermoplastic material ensuring high safety standards. It features a time delay fuse characteristic suitable for various electrical applications. The fuse supports a breaking capacity of 35A for safe interruption of fault currents.
Operating temperature ranges between -55°C minimum and 125°C maximum for industrial robustness. Its compact size includes dimensions with length 8.35mm, width 4.3mm, height 7.7mm, and lead length 22mm. Radial lead orientation and 0.62mm diameter tin-plated copper pins ensure easy PCB mounting.
Certified to CSA and RoHS standards, ideal for electrical and automation systems. Built to withstand harsh conditions including vibration, thermal shock, and salt spray as per MIL-STD requirements. Explore more RS PRO industrial electrical components on EnvMart for reliable and certified automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This non-resettable fuse has a current rating of 6.3A.
It can handle a maximum voltage of 250V AC.
The fuse has a breaking capacity of 35A, allowing it to safely interrupt fault currents.
The fuse has dimensions of 8.35mm in length, 4.3mm in width, and 7.7mm in height, with a lead length of 22mm.
It operates within a temperature range of -55°C to 125°C.
The fuse body is made from thermoplastic material, ensuring electrical insulation and durability.
It features a time delay fuse characteristic, suitable for tolerating temporary surges without nuisance blowing.
This fuse has a radial lead orientation, which facilitates easy PCB mounting.
It is certified to CSA and RoHS standards, ensuring adherence to safety and environmental requirements.
This fuse is manufactured in Taiwan.
The lead pins have a diameter of 0.62mm, which enhances conductivity and resistance to corrosion.
It is suitable for various electrical applications, particularly in electrical automation and control gear systems.
