APEM Pull Release Emergency Stop Push Button Panel Mount 34 mm Cutout 2 NC IP65 ES1S4

The APEM ES1S4 series pull release Emergency Stop Push Button offers a reliable solution for emergency shutdown requirements in industrial settings. This panel mount device features a red anodised mushroom style head with a diameter of 34.5 mm made from aluminium, providing both ergonomic operation and durability for safety-critical applications.

With a panel cutout diameter of 34 mm and a compact behind-panel depth of 42.3 mm, the switch is easy to install while maintaining minimal space usage. The push button acts by pull release mechanism, ensuring that the emergency stop must be physically reset after activation, enhancing operational safety.

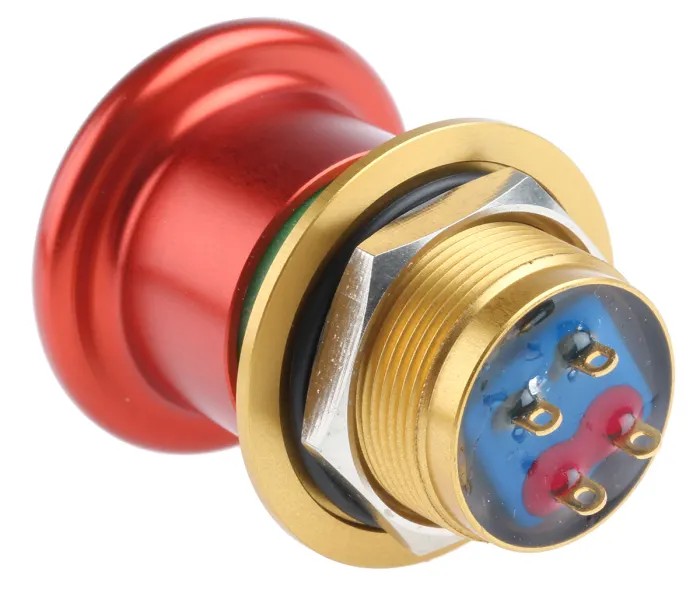

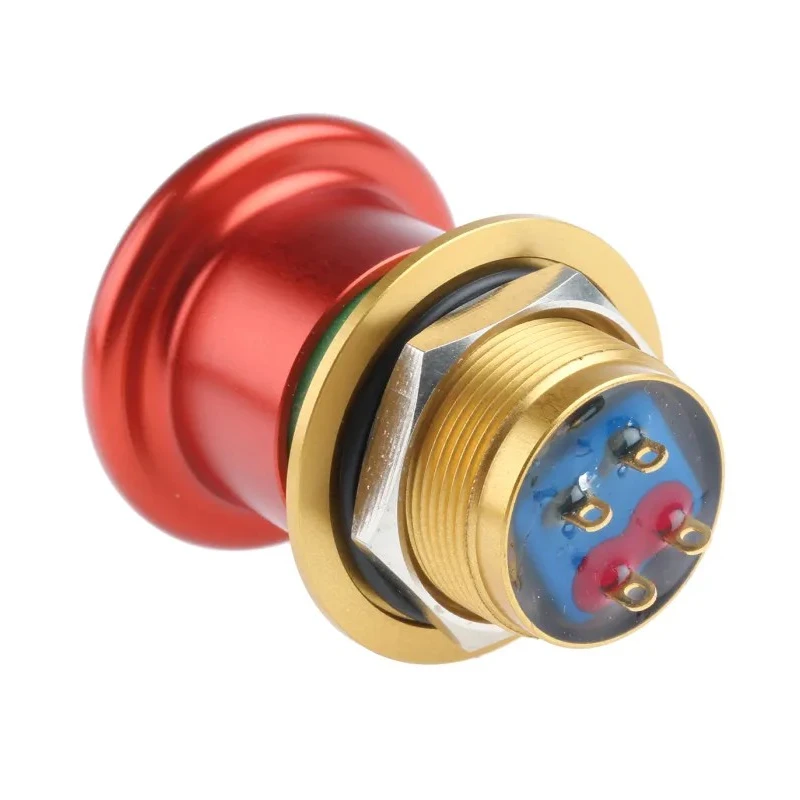

The housing is constructed from diallylphthalate (DAP) material, offering commendable mechanical strength and resistance to chemical and thermal stress. Electrical ratings include a contact voltage of 24 V DC and a contact current of 1 Ampere, supported by a double pole single throw (DPST) 2 normally closed (NC) contact configuration.

Rated IP65 for ingress protection, this push button safeguards against dust ingress and water jets, making it suitable for use in demanding industrial environments. The product is also IK10 rated, highlighting its robustness against mechanical impacts and shocks.

The APEM ES1S4 series is compliant with EN 60947-5-1 standards, ensuring it meets stringent European industrial electrical safety requirements. It is particularly applicable in industrial lifts, air-conditioning control panels, and the oil and food industries where safety stop functions are paramount.

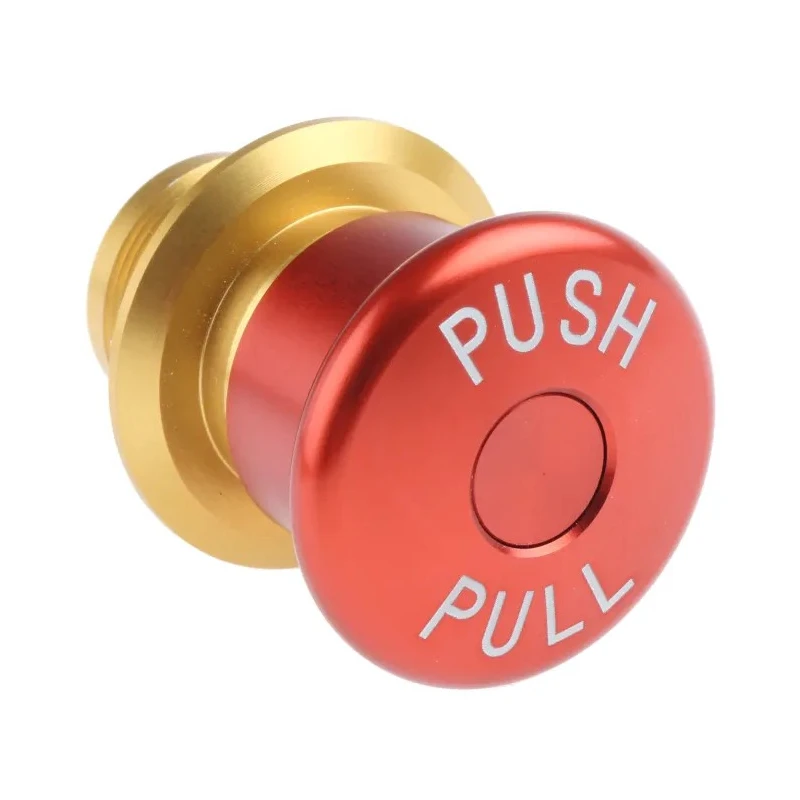

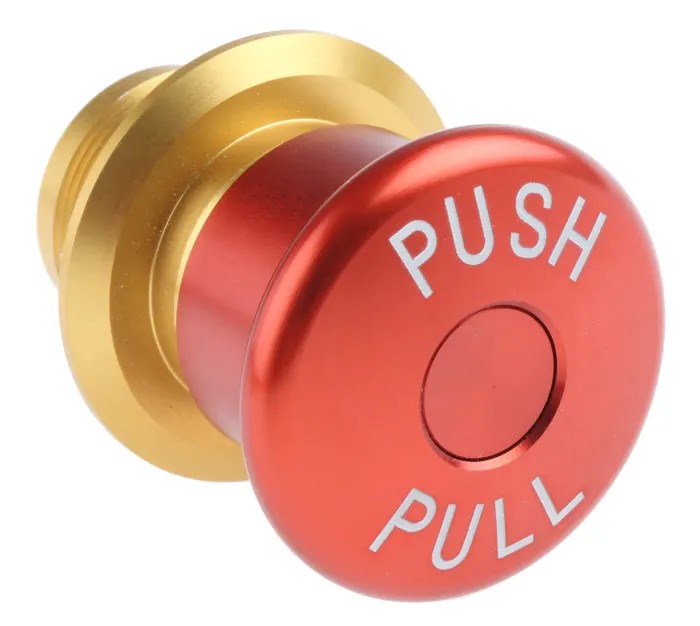

The push button features a 34.5 mm red anodised mushroom head made of aluminium with a PUSH-PULL marking. It operates via pull release actuation for quick and secure emergency stops. Designed with diallylphthalate (DAP) housing material to ensure durability and resistance to shocks.

Compatible with 24 V DC contact voltage and supports 1 A contact current. Provides IP65 ingress protection, suitable for harsh environments with dust and water exposure. Panel cutout diameter of 34 mm allows secure and easy mounting with a shallow 42.3 mm depth behind the panel.

Double pole single throw switch configuration with 2 NC contacts improves electrical contact reliability. Meets EN 60947-5-1 standards for industrial electrical safety and is IK10 rated for mechanical impact resistance. This non-illuminated emergency stop button is ideal for industrial lifts, air-conditioning panels, and oil and food industry equipment.

Manufactured in France, this new product ensures high quality and compliance with industry standards. For further industrial and electrical control solutions, explore the extensive range of switches and push buttons available at EnvMart.
