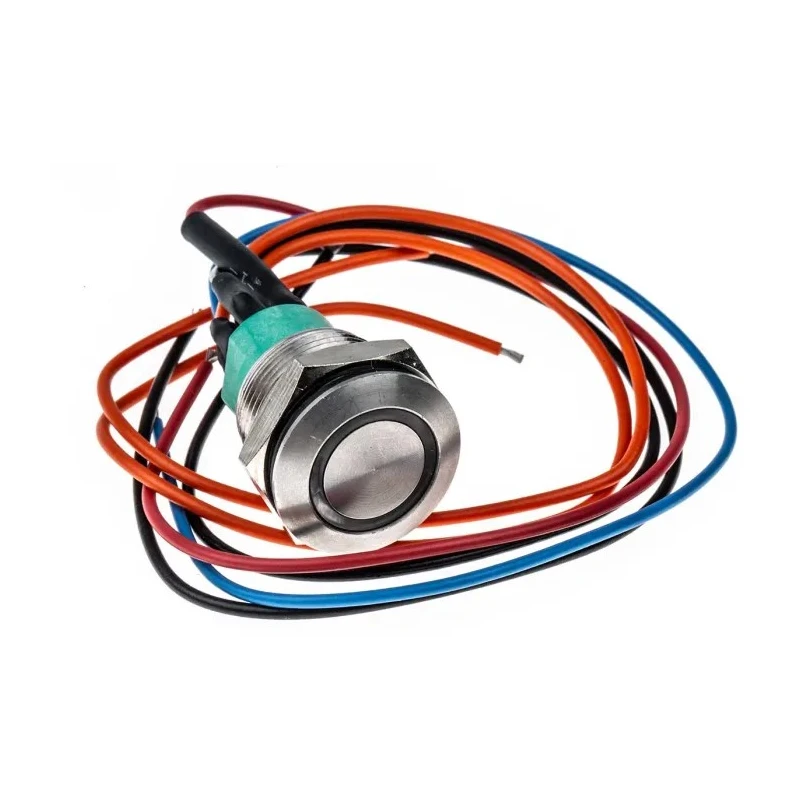

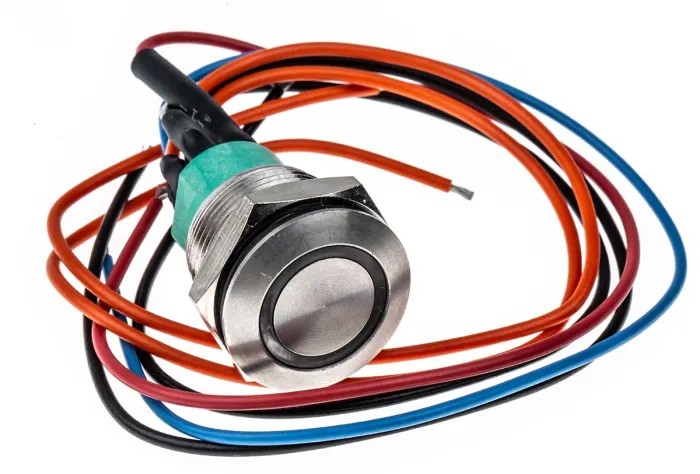

APEM AV Series Illuminated Push Button Switch, Momentary, Panel Mount, 19.2 mm Cutout, SPDT, Green LED AV9V12F1020840K

APEM AV9V12F1020840K Illuminated Push Button Switch is a high-durability momentary switch designed for panel mounting with a 19.2 mm cutout size. It is ideal for industrial, electrical, and automation applications where robust, reliable control input is required.

This switch features a Single Pole Double Throw (SPDT) contact configuration with normally closed (NC) and normally open (NO) switch contacts, operating at 30 V DC and rated for 1 ampere contact current. The green LED illumination ring provides clear and visual status indication for operational feedback in control panels or machinery.

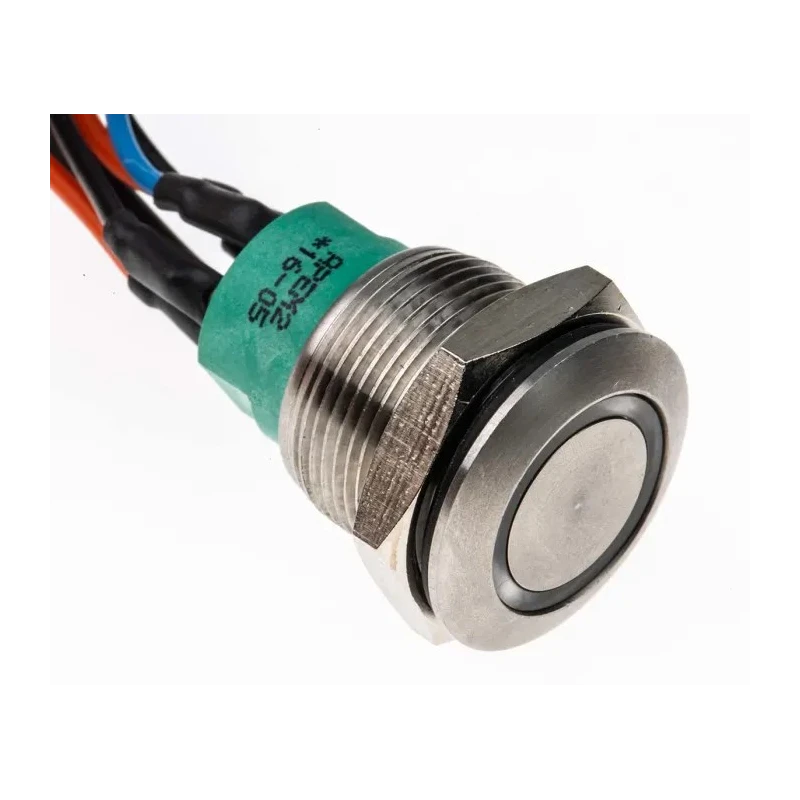

Constructed with a stainless steel actuator and bushing, the AV series switch is designed to withstand vandalism and harsh environments, confirmed by its IK10 impact resistance rating. The IP67 ingress protection ensures complete protection against dust ingress and water immersion, making it suitable for outdoor and industrial use cases.

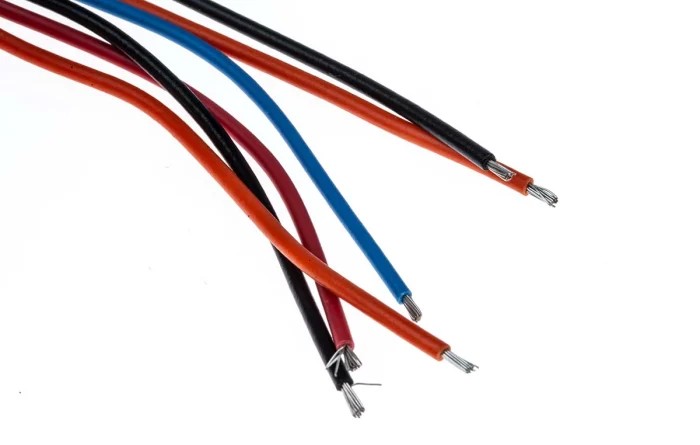

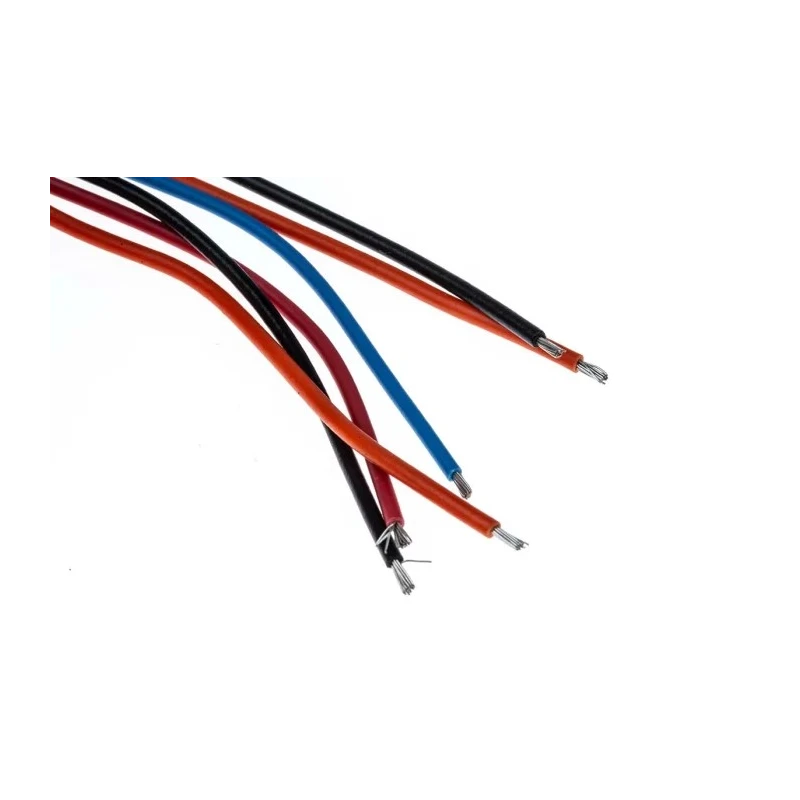

The switch supports an operating temperature range from -20°C up to 55°C, supporting applications in variable environmental conditions. It has a flat actuator style and flying lead terminals to facilitate straightforward electrical connections. The length dimension of 200 mm adds convenience for wiring and panel integration.

Compliant with RoHS, the switch meets environmental and safety standards while offering long life and fire resistance. The green LED illuminated Push Button Switch improves user interface visibility. Robust stainless steel construction delivers extended service life and vandal resistance.

IP67 rating protects against dust and water, suitable for indoor/outdoor industrial control panels. Momentary operation provides precise momentary actuation with anti-jamming construction. Suitable for electrical automation, HVAC controls, manufacturing machinery, and instrumentation panels.

Designed with short travel to prevent foreign object insertion and crushing, ensuring reliability. Highlights include 19.2 mm panel cutout for convenient mounting and flexible flying lead terminals. Meets RoHS directive for environmental compliance and safe disposal.

French origin ensures high-quality European manufacturing standards. Explore EnvMart’s comprehensive catalog for additional industrial switches and automation components to meet diverse application needs.
