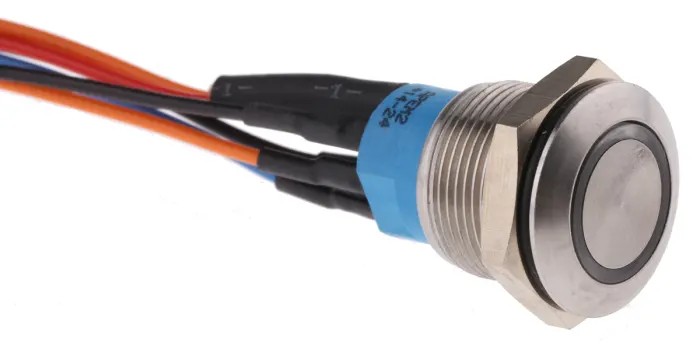

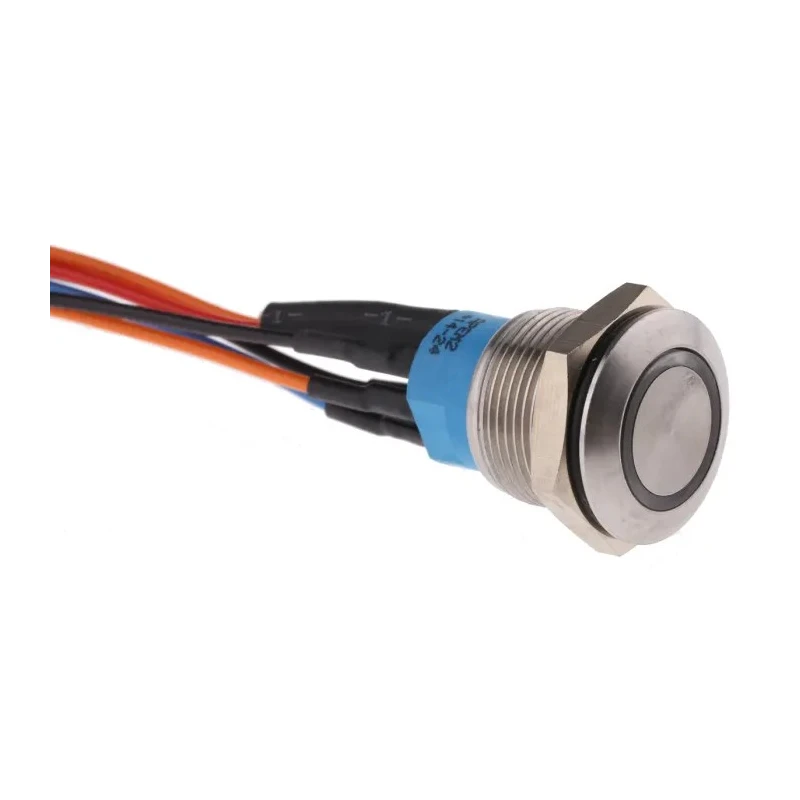

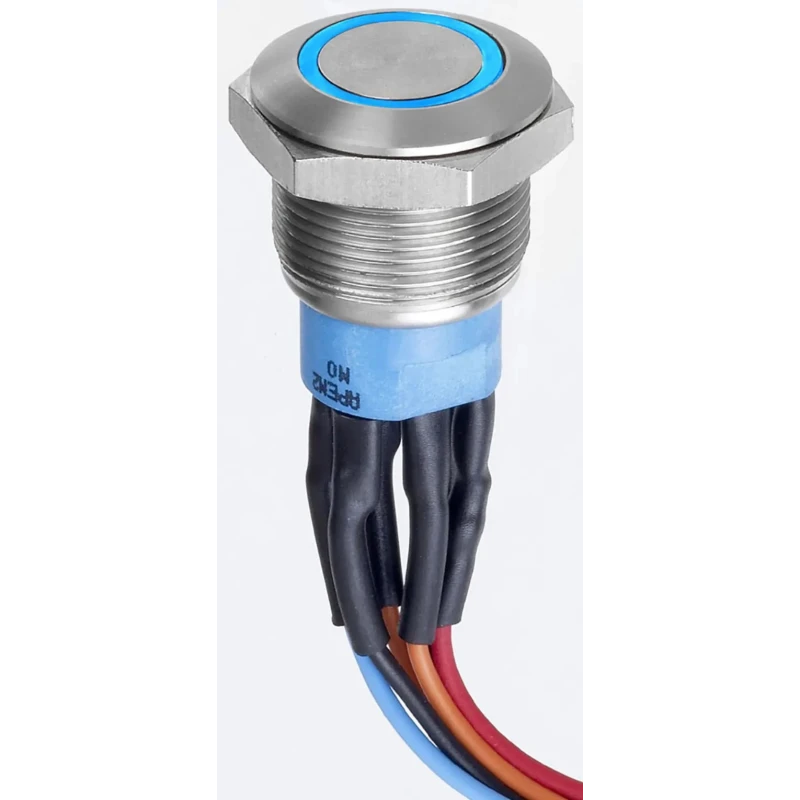

APEM AV Series Illuminated Push Button Switch Momentary Panel Mount 19.2 mm Cutout SPDT Blue LED IP67 30 V dc AV9112F1020840K

APEM AV9112F1020840K is a high-quality illuminated push button switch designed for panel mounting applications in industrial, automation, and electrical control systems. This momentary switch features a 19.2 mm panel cutout allowing convenient replacement or new installations with standard dimensions.

The switch incorporates a silver stainless steel flat actuator with anti-vandal features to prevent jamming and crushing, offering long operational life and reliable performance under demanding conditions. The AV Series push button switch is constructed to meet IK10 impact resistance standards, signifying excellent robustness against mechanical shock and vandalism attempts.

Illuminated by a bright blue LED, the switch ensures clear visual feedback for the user, making it ideal for control panels where status indication is critical. The SPDT contact configuration supports both normally closed (NC) and normally open (NO) operations, suitable for diverse switching requirements.

Electrical specifications include a 30 V dc contact rating with 1 amp contact current, making it compatible with various control circuit voltages. The switch terminals are provided as flying leads with 200 mm length, facilitating easy wiring and connection in panel assemblies.

It is rated with IP67 ingress protection, offering complete protection against dust and temporary immersion in water, which makes it suitable for harsh industrial environments, outdoor controls, and machinery applications. The operational temperature range of -20°C to 55°C ensures reliable functioning across a wide range of ambient conditions.

Momentary operation with SPDT (NC/NO) contact configuration. Anti-vandal stainless steel actuator and bushing with IK10 impact resistance. Blue LED illuminated ring for clear status indication. Panel mount with 19.2 mm cutout for standard installation.

Flying lead terminals with 200 mm length for flexible wiring. Electrical rating: 30 V dc, 1A contact current. IP67 ingress protection ensures dust-tight and water immersion resistance. Operational temperature from -20°C to 55°C for harsh conditions.

This switch is suitable for use in industrial automation systems, electrical panels, machinery control stations, HVAC panels, and other applications requiring robust, illuminated push button control.
