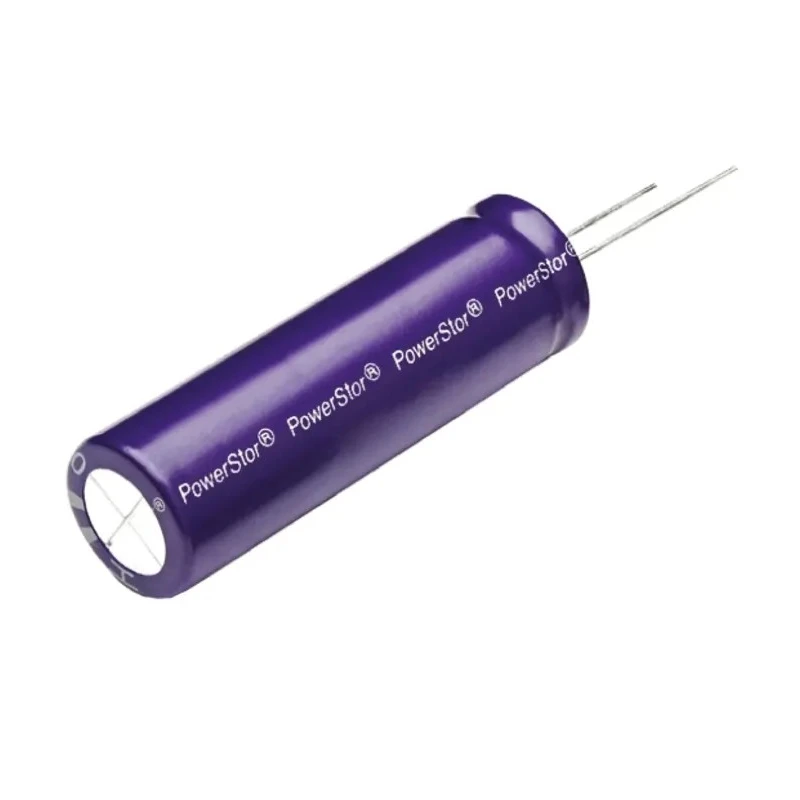

Eaton 15F Electric Double Layer Supercapacitor 2.5V DC Through Hole Mount -10 to 30% Tolerance HB1325-2R5156-R

Eaton HB1325-2R5156-R 15F Electric Double Layer Supercapacitor is a high-performance energy storage component designed for applications requiring high capacitance and low voltage operation. Featuring 15 farads capacitance and rated for 2.5 volts DC, this supercapacitor is housed in a compact through hole mount package, optimizing its ease of integration on printed circuit boards. It offers a capacitance tolerance ranging from -10% to 30%, allowing for flexible design parameters in various electronic circuits.

The HB series (Supercap HB) employs advanced electrochemical double layer capacitor (EDLC) construction using aluminum electrodes and high performance materials to achieve ultra-high capacitance with low equivalent series resistance (ESR) of 50 milliohms. This low ESR attribute ensures efficient power delivery suitable for high current demands without substantial energy loss. Its leakage current is tightly controlled at 22 microamperes to minimize self-discharge, maintaining stored energy effectively over time.

This supercapacitor supports a broad operating temperature range from -25°C to 70°C, making it suitable for industrial, automotive, and consumer electronic applications exposed to varying thermal conditions. It complies fully with UL safety certifications and RoHS environmental directives, safeguarding regulatory adherence without compromising performance. With a rated lifetime of 1000 hours, this Eaton device ensures dependable durability in energy storage deployments.

The package includes a bag mounting with solder terminal type and 2 pins spaced with a lead pitch of 5 mm and lead diameter of 0.6 mm for robust electrical and mechanical connection. The diameter of the capacitor is 13.5 mm with a height and depth of 28.4 mm each, facilitating compact design in circuit layouts.

Industrial and commercial applications of the Eaton HB1325-2R5156-R include power management systems, backup power supplies, energy harvesting modules, and other high-capacity storage uses in electronics manufacturing, laboratory instrumentation, and automotive electronics.

Choose this Eaton supercapacitor for combination of high energy density, reliable voltage rating, and compact design optimized for through hole electronics assembly. Eaton is renowned for quality and innovation in passive electronic components, trusted globally in demanding environments.

Explore EnvMart's comprehensive electronics components catalog to discover more Eaton supercapacitors and compatible parts for your projects and industrial needs. Designed for high capacitance with 15 farads capacity. Operating voltage of 2.5 volts DC suitable for low voltage applications.

Through hole mounting for secure PCB attachment. Features low equivalent series resistance (ESR) of 50 milliohms for efficiency. Leakage current rated at 22 microamperes for minimal power loss. Operating temperature range from -25°C to 70°C for varied environments.

Constructed with aluminum and electric double layer capacitor technology. Complies with UL and RoHS standards ensuring safety and environmental compliance. Lifetime expectancy of 1000 hours supporting long-term use. Pin count of 2 with solder-type terminals for ease of installation.
