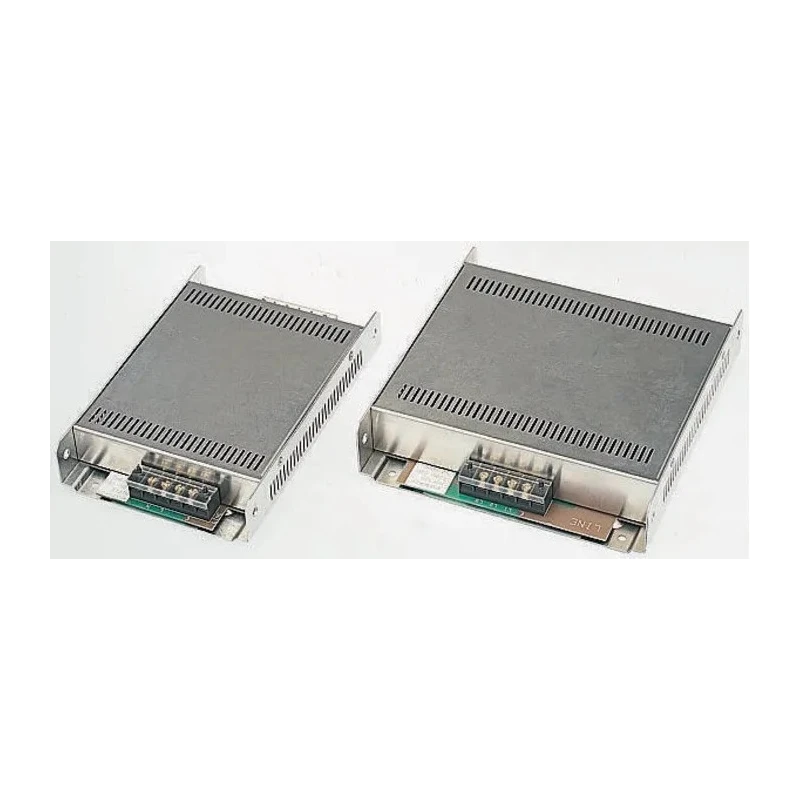

Deltron Single Phase Flange EMI Filter 240V AC 60Hz 32A Screw Termination MIF32
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Deltron |
| Height | 50mm |
| Length | 214mm |
| Model | MIF32 |
| Depth | 204mm |
| Mount Type | Flange |
| Operating Frequency | 60Hz |
| Series | MIF |
| Maximum Operating Temperature | 85°C |
| Resistance | 9.8mΩ |
| Capacitance | 3.3μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 32A |
| Number of Phases | 1 |
| Leakage Current | 90mA |
| Maximum Voltage | 240V ac |
| Inductance | 2.6mH |
| Standards/Approvals | UL1283 |
| Termination Style | Screw |
| Power Loss | 10W |
Key Features
- Suitable for single phase inverter drives operating at 240V AC and 60Hz.
- Flange mount type with screw terminal style for secure installation.
- Capacitance of 3.3μF and inductance of 2.6mH reduce EMI effectively.
- Operating temperature range from -25°C to 85°C for versatile applications.
- Compliance with UL1283 safety and performance standard.
- Designed for industrial environments requiring EMI noise reduction.
- Leakage current rated at 90mA and low resistance of 9.8 milliohms.
- Power loss rated at 10W ensuring efficient operation.
Product Description
Deltron MIF32 flange EMI filter is a single phase, multi-stage power line filter designed primarily for motor inverter drives. Operating at 240V AC and 60Hz frequency, it supports a maximum continuous current of 32A, effectively mitigating electromagnetic interference in industrial applications.
The filter features a flange mount type with screw termination style, ensuring reliable mechanical and electrical connections. Its capacitance of 3.3μF combined with an inductance value of 2.6mH provides effective attenuation of conducted noise and EMC compliance with stringent EN55022B limits.
Designed to operate in ambient temperatures from -25°C up to 85°C, the filter is suitable for diverse industrial environments. Compact in size with dimensions of 214mm length, 204mm depth, and 50mm height, it occupies minimal panel space.
Additional technical details include a leakage current of 90mA, a low resistance of 9.8 milliohms, and an efficient power loss rating of 10 watts. The product meets UL1283 standards for safety and electromagnetic compatibility, assuring reliable long-term operation.
Single phase operation with maximum current of 32A. Flange mounting with screw termination. Capacitance 3.3μF and inductance 2.6mH. Operating temperature range -25°C to 85°C. Dimensions: 214mm (L) x 204mm (D) x 50mm (H).
Leakage current 90mA and resistance 9.8mΩ. Power loss of 10W for efficient energy use. Certification compliance: UL1283. Typical industrial applications include motor control, inverter systems, and equipment requiring robust EMI suppression for compliance and noise reduction.
Country of origin is United Kingdom. This Deltron MIF32 EMI filter is a reliable choice for demanding industrial EMC filtering needs and is part of the MIF series of motor inverter filters.
Explore more EMI Filters and power line filters in the Electronics Components category on EnvMart for comprehensive electromagnetic compatibility solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous current rating of this model is 32A.
It operates at 240V AC and a frequency of 60Hz.
The dimensions of this unit are 214mm in length, 204mm in depth, and 50mm in height.
This model features a flange mount type with screw termination for secure installation.
The capacitance is 3.3μF and the inductance is 2.6mH, which help in reducing EMI effectively.
It can operate within a temperature range of -25°C to 85°C.
The leakage current is rated at 90mA.
The power loss rating is 10W, ensuring efficient operation.
Yes, it complies with the UL1283 safety and performance standard.
It is suitable for applications such as motor control, inverter systems, and equipment requiring EMI suppression.
The resistance of this model is rated at 9.8 milliohms.
The country of origin for this product is the United Kingdom.
