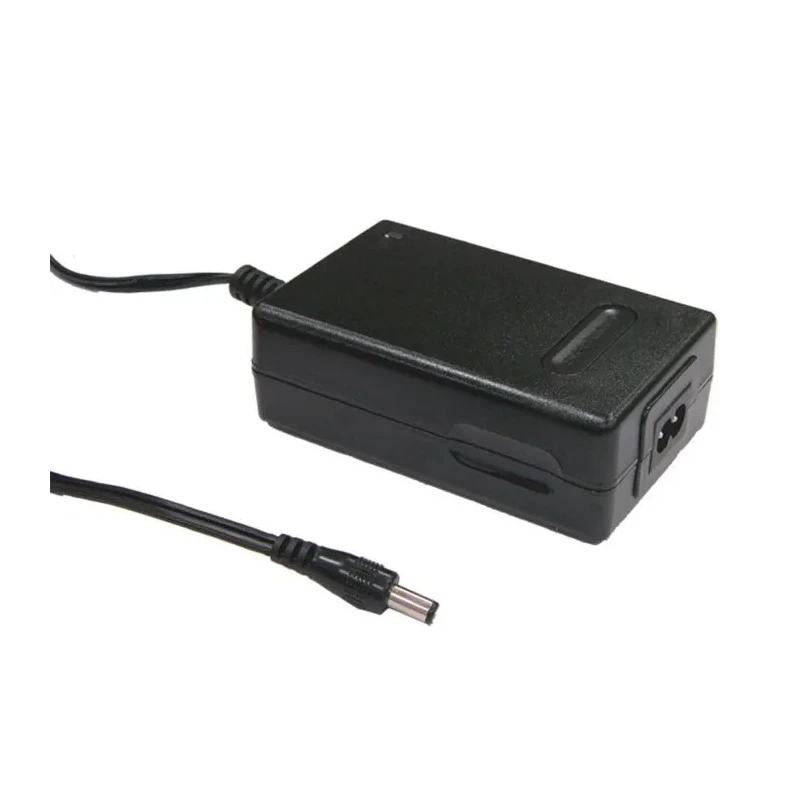

MEAN WELL GC30B Battery Charger for 16.8V Lead Acid and Lithium-ion Batteries 30W 1.6A Output Power GC30B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Model | GC30B |
| Approvals | TUV / CB / FCC / CE |
| Gross Weight | 309g |
| Series | GC30B |
| Maximum Charge Current | 1.6A |
| Termination Type | AWG18 UL1185 Cable |
| Plug Type | Standard P1J |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 264V ac |
| Output Voltage | 16.8V |
| Protections | Short circuit / Overload / Over voltage / Over temp |
| Standards/Approvals | EAC TP TC 020, EN61000-4-2, FCC Part 15 Class B, UL60950-1, CSA22.2, l criteria A, EN60950-1, EN55014-1 Class B, EAC TP TC 004 |
| Minimum Input Voltage | 90V ac |
| Compatible Battery Chemistry | Lead Acid, Lithium-ion |
| Output Connectors | Tuning Fork Type Centre Positive, Standard Type P1J |
| Compatible Number of Batteries | 1 |
| Battery Charger Type | Power Adapter with Charging Function |
| Number of Charge Stages | 2 |
| Mean Well Battery Charger For with Standard P1J plugBrand | Mean Well |
Key Features
- Compatible with Lead Acid and Lithium-ion battery chemistries.
- Equipped with a Standard P1J plug for easy connection.
- Includes AWG18 UL1185 cable termination for secure wiring.
- Provides universal AC input voltage ranging from 90V to 264V AC.
- Features two-stage charging for optimized battery performance and safety.
- Designed with multiple protections including short circuit, overload, over voltage, and over temperature.
- Complies with global safety and EMC standards such as EAC TP TC 020, EN61000-4-2, FCC Part 15 Class B, UL60950-1, CSA22.2, and others.
- Class II power supply with no earth pin and low no-load power consumption for energy savings.
Product Description
MEAN WELL GC30B Battery Charger is a high-quality 30W power adapter designed for charging 16.8V Lead Acid and Lithium-ion batteries with a maximum charge current of 1.6A. This charger supports a single battery and comes equipped with a standard P1J plug and AWG18 UL1185 cable termination to ensure robust and safe connectivity.
The charger features a universal AC input voltage range from 90V to 264V AC, making it suitable for global usage and compatible with various power environments. The two-stage charging process optimizes battery health and charging efficiency while offering protections against short circuit, overload, over voltage, and over temperature conditions to guarantee operational safety.
MEAN WELL GC30B complies with numerous international standards and approvals including EAC TP TC 020, EN61000-4-2, FCC Part 15 Class B, UL60950-1, CSA22.2, and EN55014-1 Class B. Designed as a Class II power supply without an earth pin, it offers energy-efficient operation with minimal no-load power consumption.
Its compact form factor and lightweight build of 309 grams enable easy handling and installation in diverse industrial, laboratory, construction, and commercial applications requiring dependable battery charging solutions. This battery charger is suitable for equipment demanding a high startup current due to its peak current capabilities.
The charger’s output connectors use the tuning fork type centre positive and standard P1J format, ensuring secure and standardized battery connection. Compatible with Lead Acid and Lithium-ion battery chemistries. Equipped with universal AC input from 90V to 264V.
Two-stage charge process for battery longevity and efficiency. Comprehensive protections including short circuit and over temperature. Complies with multiple international safety and EMC approvals. Class II design without earth pin and low standby power consumption.
Compact and lightweight at 309g, ideal for versatile applications. Standard P1J plug and AWG18 UL1185 cable termination. Explore industrial Battery Chargers with MEAN WELL and other trusted brands on EnvMart to find reliable power solutions for your operation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 30W.
It is compatible with Lead Acid and Lithium-ion battery chemistries.
The maximum charge current is 1.6A.
It uses a Standard P1J plug for easy connection.
The charger includes protections against short circuit, overload, over voltage, and over temperature.
The gross weight of this unit is 309 grams.
The output voltage of this charger is 16.8V.
It features a two-stage charging process.
It is equipped with an AWG18 UL1185 cable termination for secure wiring.
This charger complies with standards including EAC TP TC 020, EN61000-4-2, FCC Part 15 Class B, UL60950-1, and CSA22.2.
It is designed to charge a single battery.
