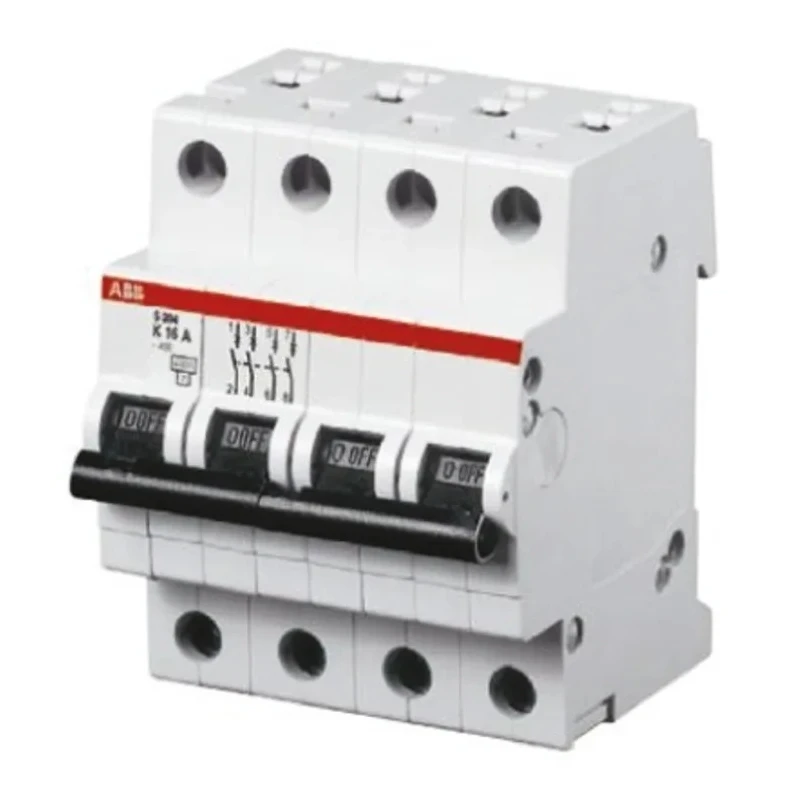

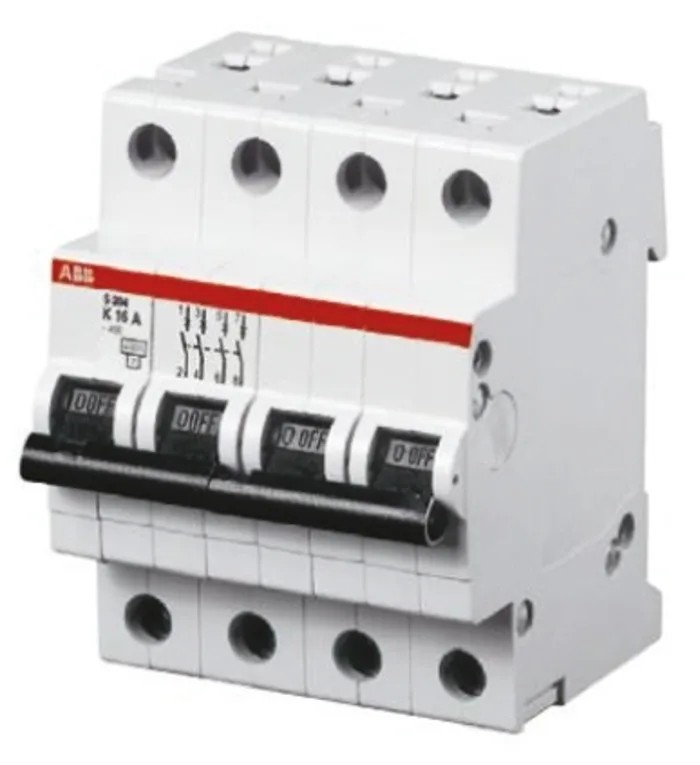

ABB System Pro M Compact S200M Miniature Circuit Breaker, 4-Pole, 40A, Type B, 400V AC, 12V DC, 10 2CDS274001R0405 S204M-B40

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200M Miniature Circuit Breaker, 4-Pole, 40A, Type B, 400V AC, 12V DC, 10 2CDS274001R0405 S204M-B40



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS274001R0405 S204M-B40
Depth	75mm
IP Rating	IP20, IP40
Width	70mm
Mount Type	DIN Rail
Current Rating	40A
Series	S200M
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Rated DC Voltage	12V dc
Tripping Characteristics	Type B
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch

Key Features

Features a Type B tripping characteristic for diverse applications.
Rated for 400V AC and 12V DC operation with a breaking capacity of 10 kA.
Constructed for DIN Rail mounting with compact dimensions for efficient installation.
Equipped with screw terminals for robust electrical connections.
Thermal tripping mechanism enhances safety against overload conditions.
Designed for disassembly to facilitate easier maintenance and recycling.
Encased with IP20 and IP40 ratings ensuring protection against solid objects and water splashes.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for quality and safety.

Product Description

ABB 2CDS274001R0405 S204M-B40 System Pro M Compact S200M Miniature Circuit Breaker offers precise and reliable protection for electrical circuits in commercial and industrial environments. This 4-pole device supports a current rating of 40A and operates at rated voltages of 400V AC and 12V DC, enabling versatile application scenarios.

The compact breaker measures 70mm in width, 88mm in height, and 75mm in depth, making it ideal for DIN Rail mounting and space-conscious electrical enclosures. Its Type B tripping characteristic ensures prompt response to fault currents aligned with sector standards.

The device incorporates a thermal tripping mechanism that interrupts current flow during overloads to safeguard connected equipment and prevent hazards. Screw terminals guarantee secure and durable electrical connections, supporting long-term operational integrity.

Designed for disassembly, this circuit breaker aligns with sustainability goals, facilitating easier maintenance and end-of-life recycling. Its dual IP20 and IP40 ratings provide effective protection against ingress of solid objects and water, increasing the device's durability in varied environments. Compliance with IEC/EN 60898-1 and IEC/EN 60947-2 standards reinforces its reliability and safety credentials.

Applications include commercial electrical installations, industrial automation systems, and mechanical power distribution control. Typical usage involves protecting circuits from overloads and short circuits, ensuring continuous and safe electrical operation across varying power setups.

Features a Type B tripping characteristic for diverse applications. Rated for 400V AC and 12V DC operation with a breaking capacity of 10 kA. Constructed for DIN Rail mounting with compact dimensions for efficient installation.

Equipped with screw terminals for robust electrical connections. Thermal tripping mechanism enhances safety against overload conditions. Designed for disassembly to facilitate easier maintenance and recycling. Encased with IP20 and IP40 ratings ensuring protection against solid objects and water splashes.

Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for quality and safety. Explore the ABB System Pro M Compact S200M series for dependable circuit protection solutions suitable for industrial, commercial, automation, and electrical infrastructure needs.
