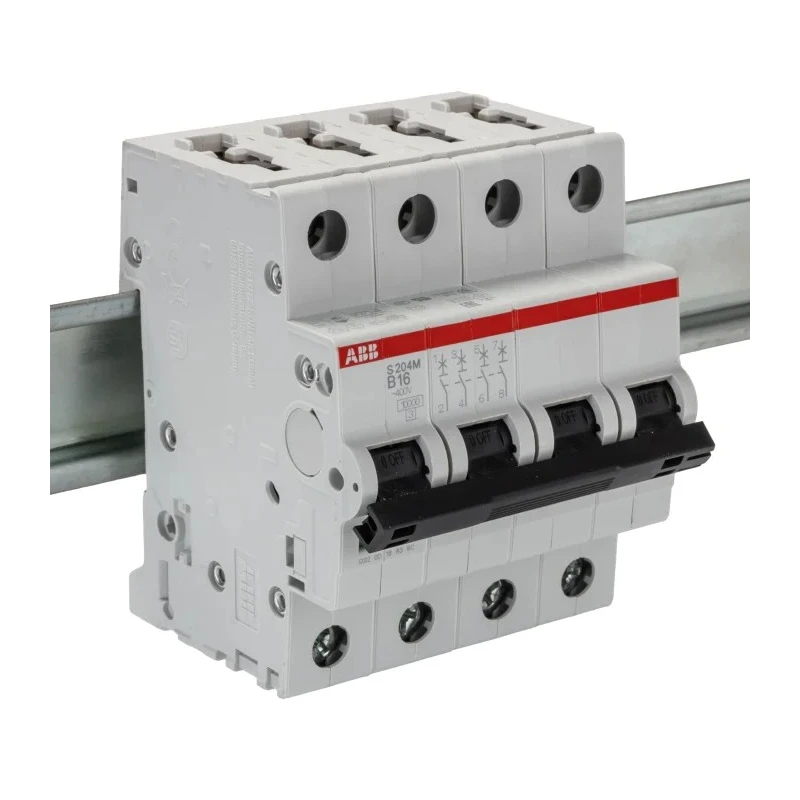

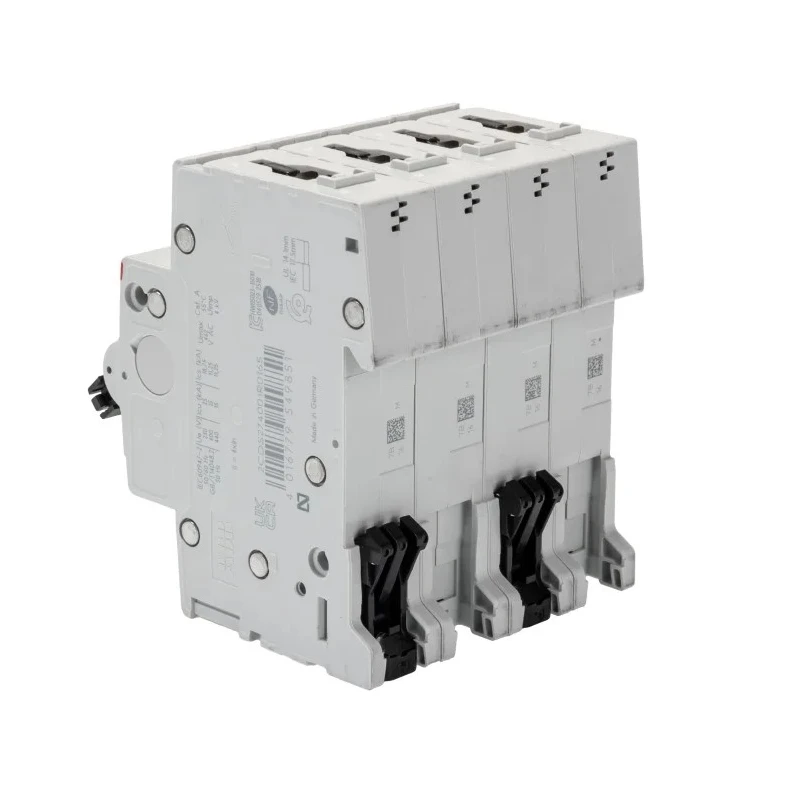

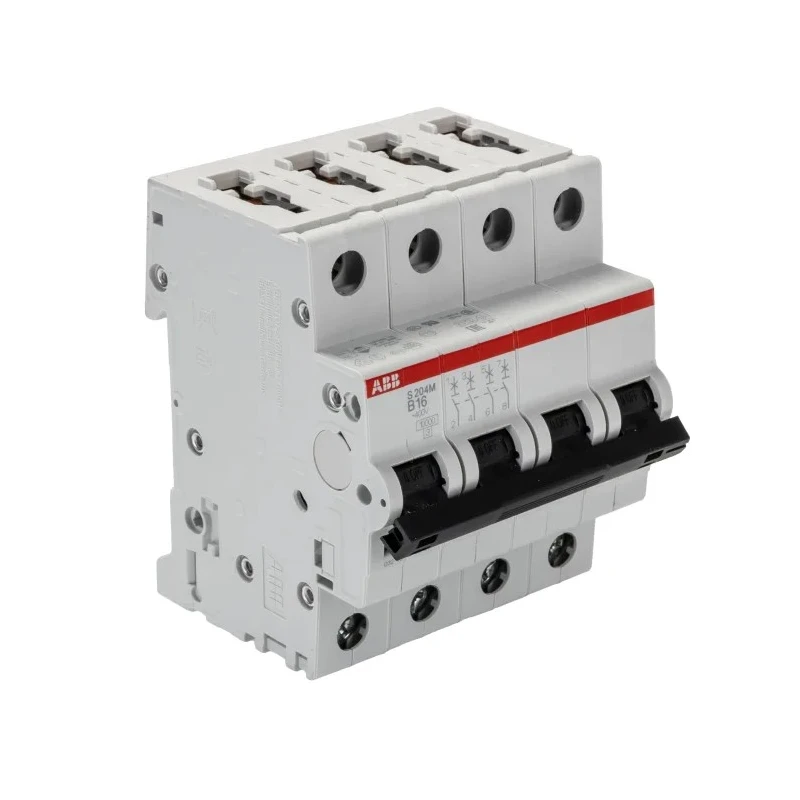

ABB System Pro M Compact S200M Miniature Circuit Breaker, 4-Pole, 16A, Type B, 400V AC, 15 kA 2CDS274001R0165 S204M-B16
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 69mm |
| Model | 2CDS274001R0165 S204M-B16 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | S200M |
| Terminal type | Screw |
| Breaking Capacity | 15kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type B |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Lever |
Key Features
- Features Type B tripping characteristics for protection against overloads and short circuits.
- Compact DIN rail mount design enables easy installation and integration.
- Thermal and electromagnetic tripping mechanism ensures responsive circuit disconnection.
- Equipped with lever reset actuator for manual reset after trip events.
- IP20 and IP40 ratings provide adequate protection against environmental factors.
- Designed for disassembly to support sustainability and ease of maintenance.
- Suitable for commercial and industrial electrical distribution applications.
- Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
Product Description
ABB 2CDS274001R0165 S204M-B16 Miniature Circuit Breaker, part of the System Pro M Compact S200M series, offers precise electrical protection with a 16A current rating and a high breaking capacity of 15 kA at a rated AC voltage of 400V. This 4-pole device is engineered for effective circuit safeguarding in commercial and industrial settings.
The thermal electromechanical tripping mechanism ensures rapid disconnection during overload or short circuit faults, enhancing safety for electrical installations. Its lever-type reset actuator allows manual resetting after resolving fault conditions. The unit is designed for DIN rail mounting, facilitating straightforward installation and integration within electrical panels.
Manufactured to meet IEC/EN 60898-1 and IEC/EN 60947-2 standards, this circuit breaker ensures compliance and reliable performance. Its IP20 and IP40 protection ratings safeguard internal components from dust and contact, suitable for typical industrial environments. Furthermore, the product is designed for disassembly, promoting environmental sustainability and enabling efficient maintenance or recycling.
Typical applications include circuit protection for commercial buildings, electrical distribution in industrial facilities, automated systems requiring dependable protection, and safeguarding machinery and equipment from electrical faults.
Type B tripping characteristic for overload and short circuit protection. Compact and robust DIN rail mount design. Electromagnetic and thermomagnetic tripping mechanism. Lever reset actuator for quick manual reset. IP20 and IP40 rated for environmental protection.
Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards. Designed for disassembly to enhance sustainability. Suitable for commercial and industrial electrical applications. Explore EnvMart's extensive catalog of Miniature Circuit Breakers and ABB electrical components for dependable and safe power distribution solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, making it suitable for various electrical distribution applications.
It has a high breaking capacity of 15 kA, providing effective protection against overloads and short circuits.
The dimensions of this unit are 69mm in height, 70mm in width, and 69mm in depth.
It is designed for DIN rail mounting, which facilitates easy installation and integration within electrical panels.
This circuit breaker has IP20 and IP40 ratings, providing protection against dust and contact in typical industrial environments.
It features Type B tripping characteristics, which are designed for protection against overloads and short circuits.
It is compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring reliable performance in electrical installations.
This model is equipped with a lever reset actuator, allowing for manual reset after trip events.
It utilizes both electromagnetic and thermomagnetic tripping mechanisms for responsive circuit disconnection.
Yes, it is designed for disassembly, promoting environmental sustainability and facilitating maintenance or recycling.
It is suitable for circuit protection in commercial buildings, industrial facilities, and automated systems requiring reliable protection.
It features screw-type terminals for secure electrical connections.
