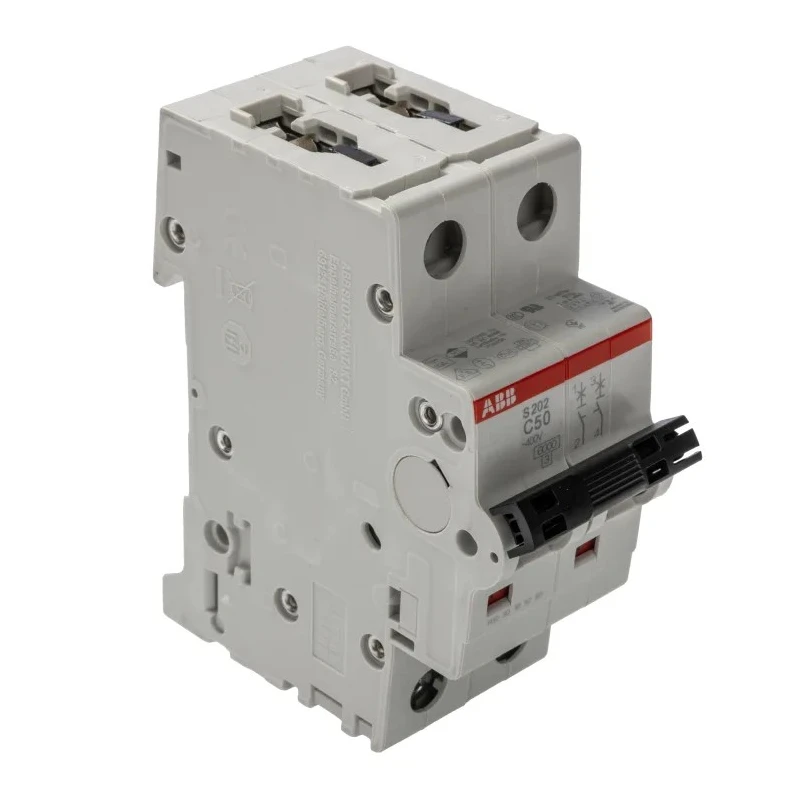

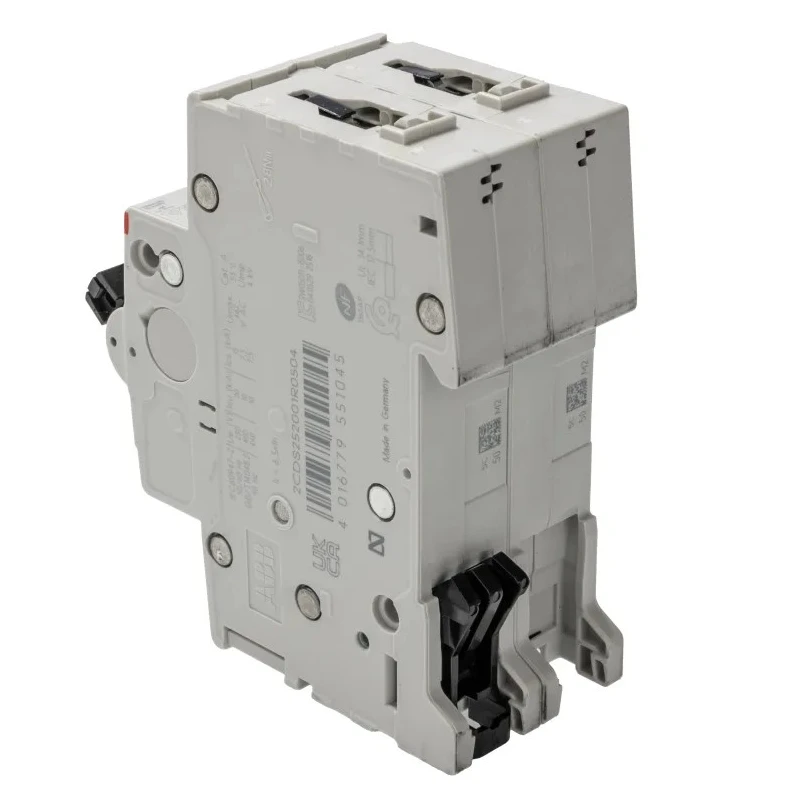

ABB System Pro M Compact S200 Miniature Circuit Breaker 2-Pole 50A Type C 400V AC 125V DC 10kA 2CDS252001R0504 S202-C50

ABB 2CDS252001R0504 S202-C50 System Pro M Compact S200 Miniature Circuit Breaker is a high-quality 2-pole protective device designed to safeguard electrical installations in industrial, commercial, and automated system environments. With a current rating of 50A and tripping characteristics of Type C, it efficiently protects circuits from overload and short circuit events.

Rated for both AC voltage of 400V and DC voltage of 125V, this MCB ensures versatile application across diverse power systems. The breaker offers a breaking capacity of 10kA, providing robust performance against fault currents, maintaining system integrity and safety.

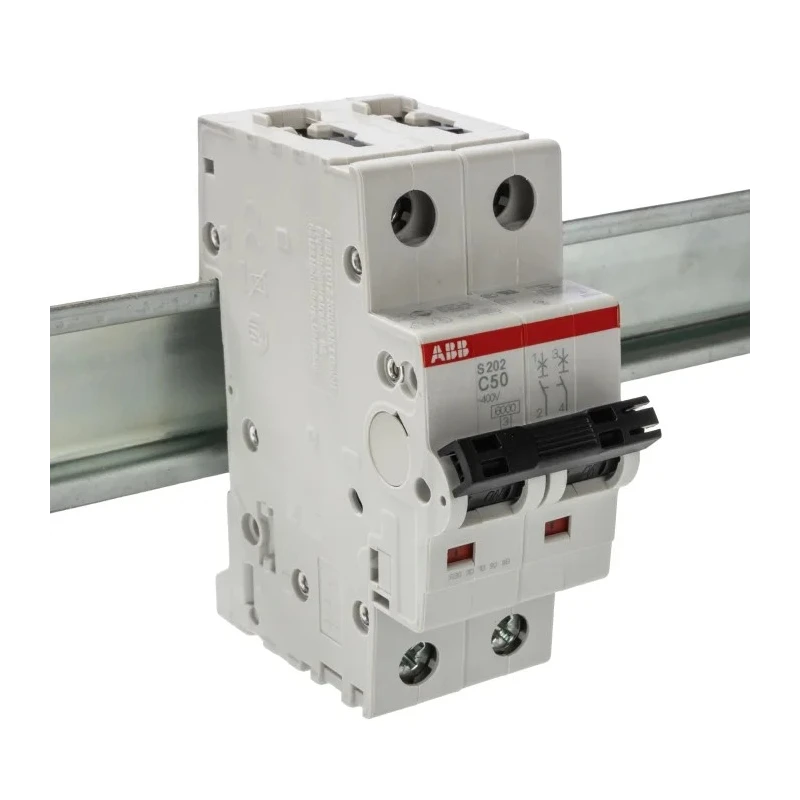

The breaker is designed for DIN rail mounting with screw terminals, facilitating straightforward installation and secure connections. Its compact form factor with dimensions 69mm height, 69mm depth, and 35mm width optimizes panel space.

This Miniature Circuit Breaker employs a combined thermomagnetic and electromagnetic tripping mechanism, enhancing protection accuracy and response speed. Its IP20 and IP40 ratings offer protection against solid foreign objects, adding durability and reliability in installation environments.

Manufactured in Germany, the product complies with international standards IEC/EN 60898-1 and IEC/EN 60947-2, assuring quality and operational safety. The device features a lever type reset actuator, allowing easy manual reset after fault clearance.

Typical applications for this MCB include industrial and commercial electrical systems, automation control panels, power and lighting distribution protection, and critical infrastructure requiring dependable circuit protection.

Designed with thermal and electromagnetic tripping mechanisms for precise circuit protection. Rated for 400V AC and 125V DC, suitable for various electrical systems. Features a high breaking capacity of 10kA for enhanced safety during short circuits.

Compact 2-pole design for space-efficient installation on DIN rails. Constructed with a screw terminal type for secure wiring connections. IP20 and IP40 rated for protection against solid objects and limited ingress of dust.

Manufactured in Germany with compliance to IEC/EN 60898-1 and IEC/EN 60947-2 standards. Includes a lever reset actuator for easy manual resetting after a trip.

This ABB mini circuit breaker from the System Pro M Compact S200 range is an ideal choice for enhancing electrical safety, ensuring reliable overcurrent protection in various industrial, commercial, and automated applications. Browse the Electronics & Electricals category at EnvMart for more quality circuit breakers.
