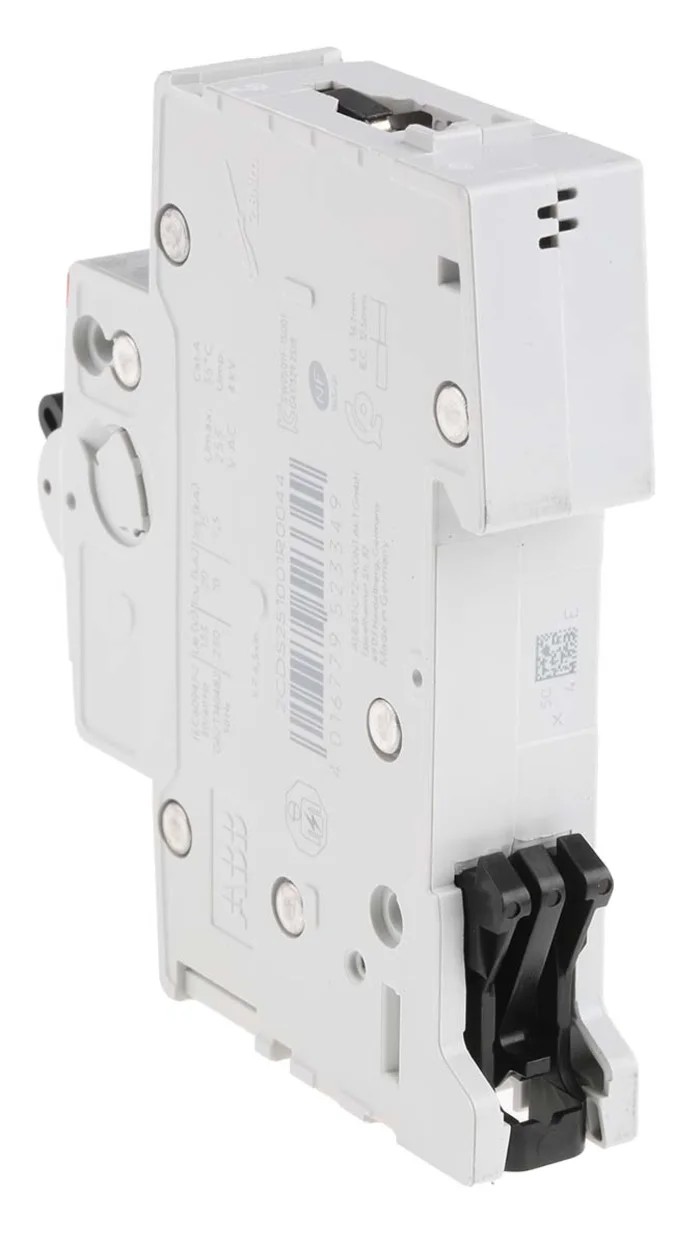

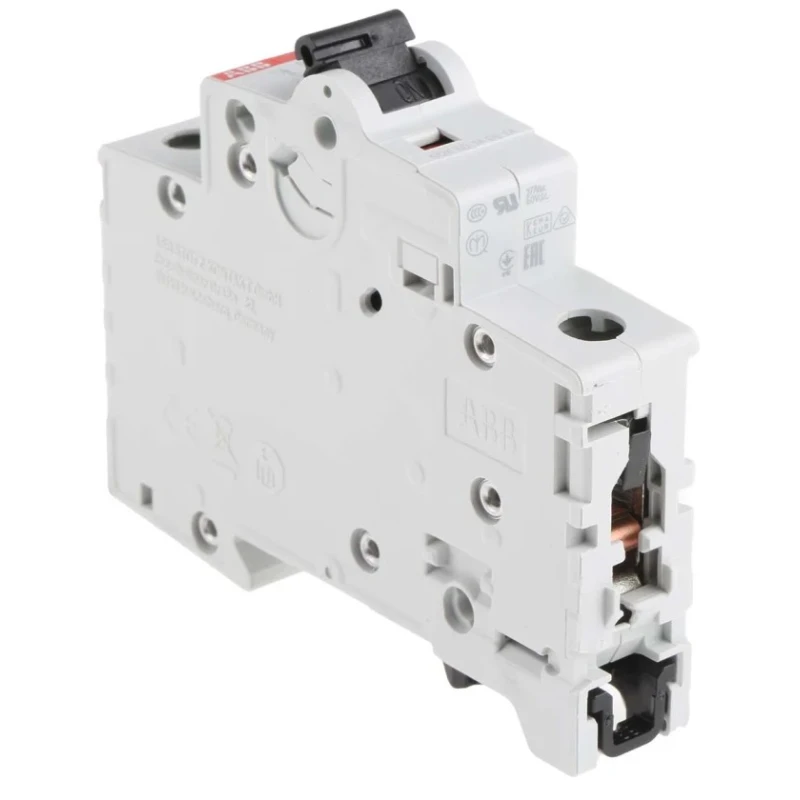

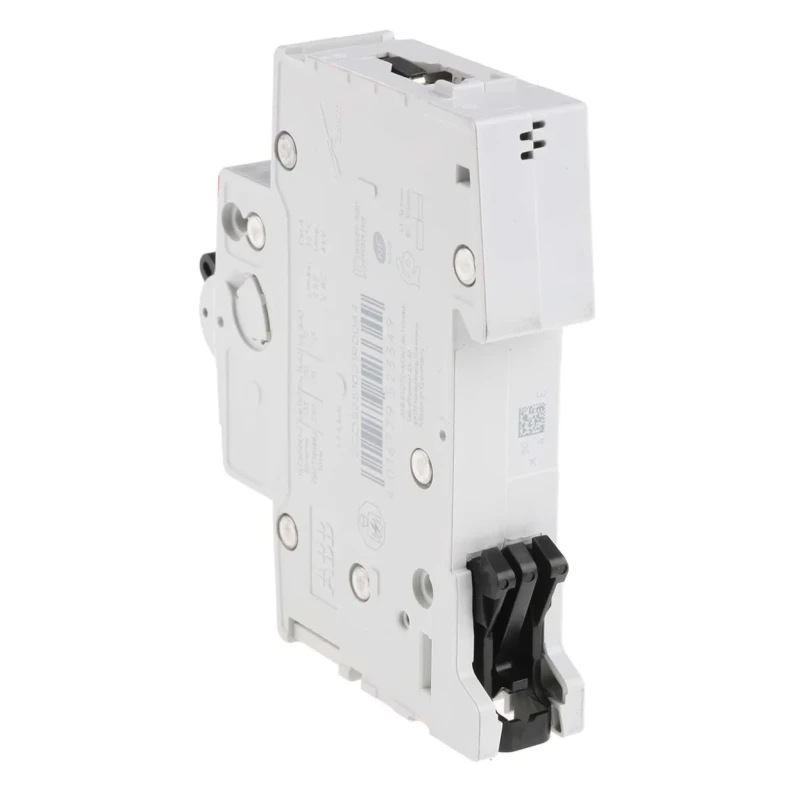

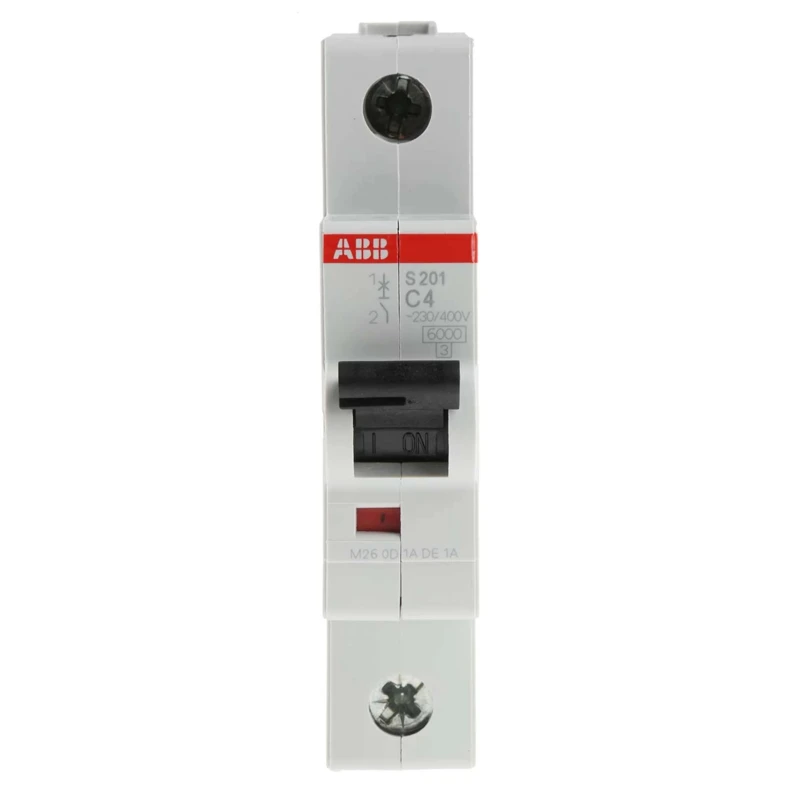

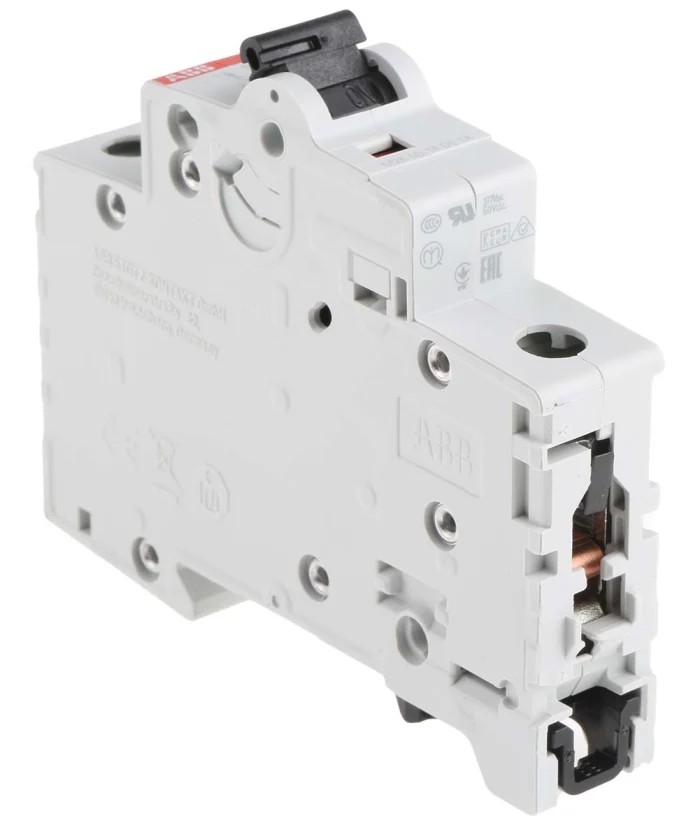

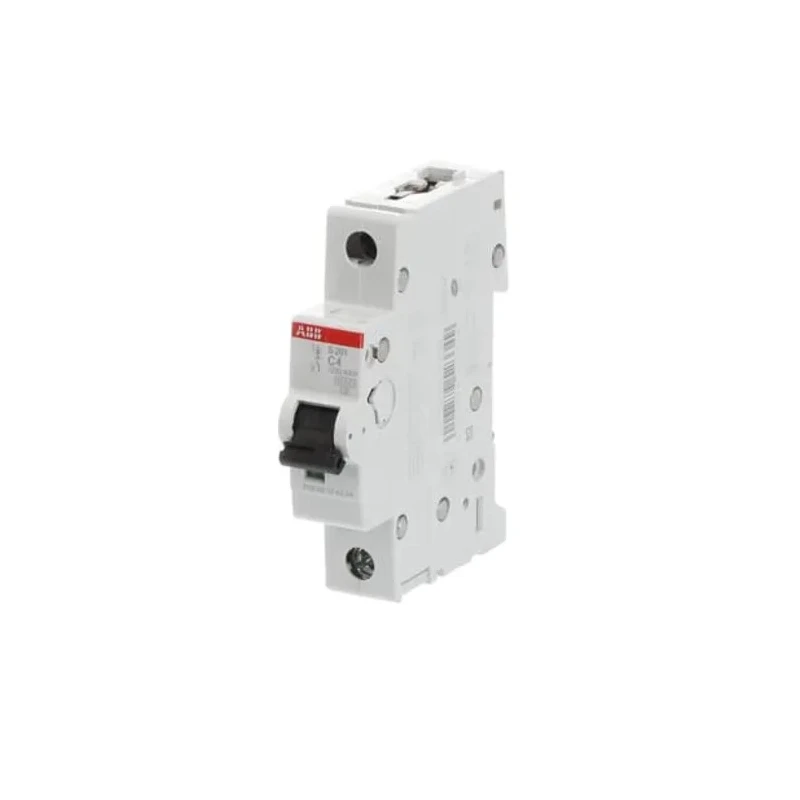

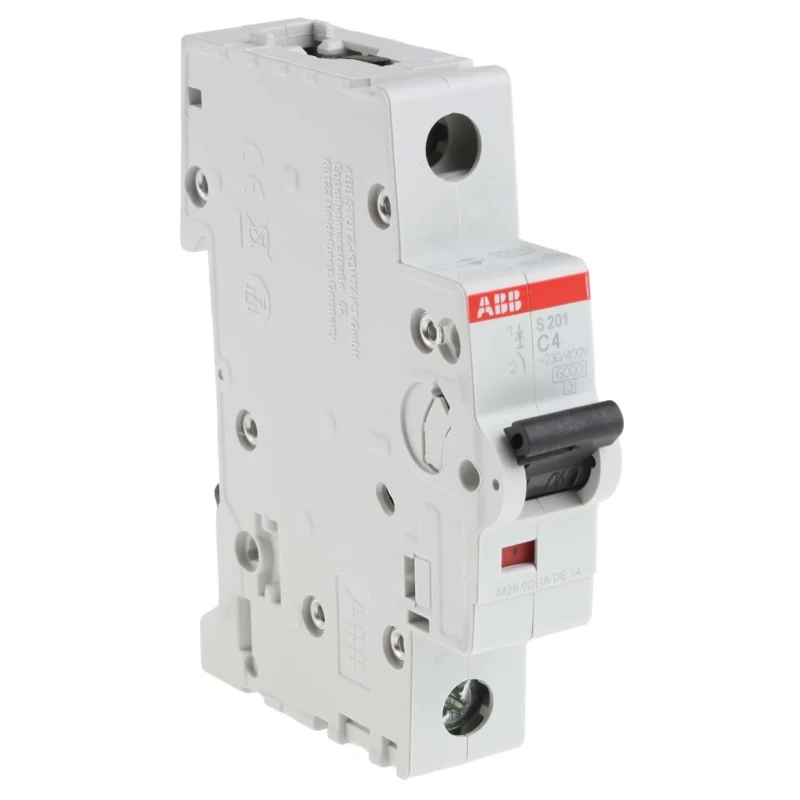

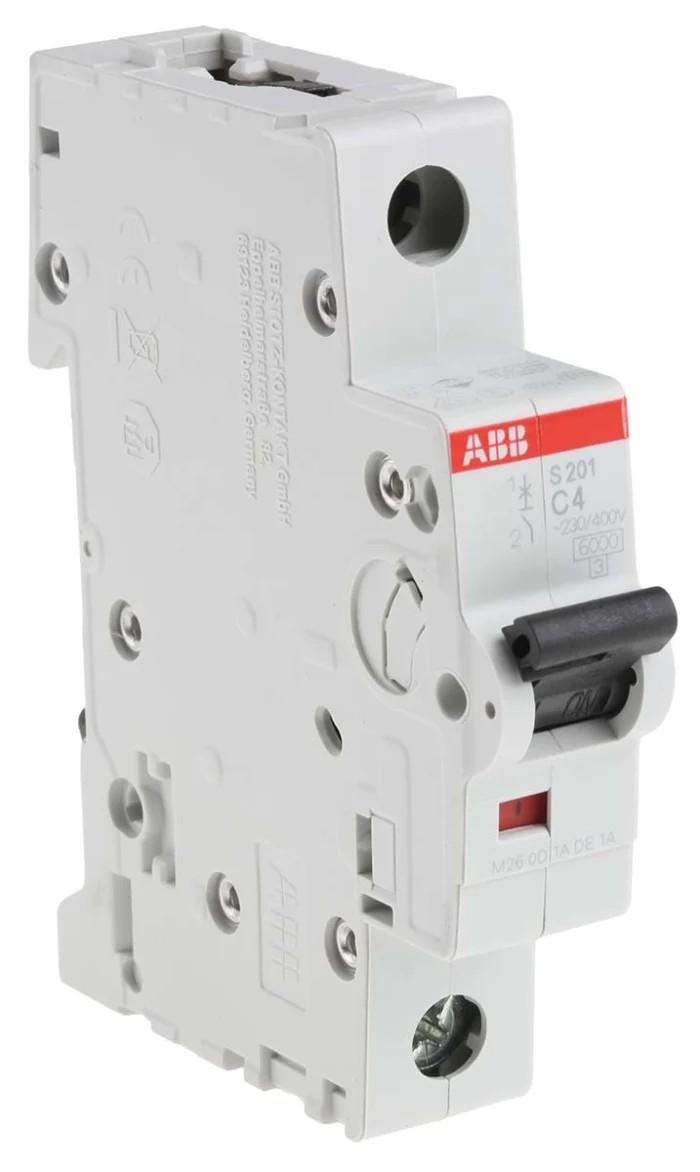

ABB System Pro M Compact S200 Miniature Circuit Breaker 1-Pole 4A Type C 253V AC 72V DC 6kA Breaking 2CDS251001R0044 S201-C4

ABB 2CDS251001R0044 S201-C4 Miniature Circuit Breaker (MCB) from the System Pro M Compact S200 series provides robust protection for electrical installations in industrial, commercial, and residential applications. Operating at a current rating of 4A, this 1-pole circuit breaker is engineered for both AC voltage up to 253V and DC voltage up to 72V.

It features a Type C tripping characteristic, ideal for circuits with moderate inrush currents such as lighting and motor loads. The thermal tripping mechanism protects circuits against overloads, while its 6kA breaking capacity ensures safe interruption of fault currents preventing equipment damage.

The device is designed for DIN rail mounting, simplifying installation and maintenance. Its compact size and screw terminal type allow for efficient use in control panels with limited space. The integrated contact position indicator provides clear visual status of the breaker, aiding quick diagnostics and safety checks.

Engineered for durability, this MCB has a mechanical endurance rating of 20,000 cycles and operates reliably in temperature ranges from -25°C to +55°C, suitable for demanding environments including manufacturing plants, medical facilities, IT infrastructures, and electrical engineering systems.

Featuring IP20 and IP40 protection levels, it offers safeguards against solid objects and limited water exposure, complying with international IEC standards IEC/EN 60898-1 and IEC/EN 60947-2, assuring quality and safety.

Single pole configuration suitable for isolating individual circuits. Type C tripping characteristic activates at 5 to 10 times the rated current providing surge protection. Mounts easily on DIN rails for quick installation.

Thermal tripping mechanism ensures dependable overload protection. Wide operating temperature range from -25°C to +55°C for stable operation in challenging environments. Integrated contact position indicator allows easy status monitoring.

Mechanical endurance rated for 20,000 operation cycles ensuring long service life. Compact dimensions: 88mm height, 69mm depth, and 17.5mm width optimize panel space. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 international standards.

IP20 and IP40 rating for protection against solid objects and partial protection from water ingress.

This ABB MCB is an ideal choice for electrical protection in manufacturing, healthcare, IT sites, and electrical engineering applications where quality, reliability, and safety are paramount. The System Pro M Compact S200 series is engineered to deliver superior performance while supporting sustainability through design for disassembly.
