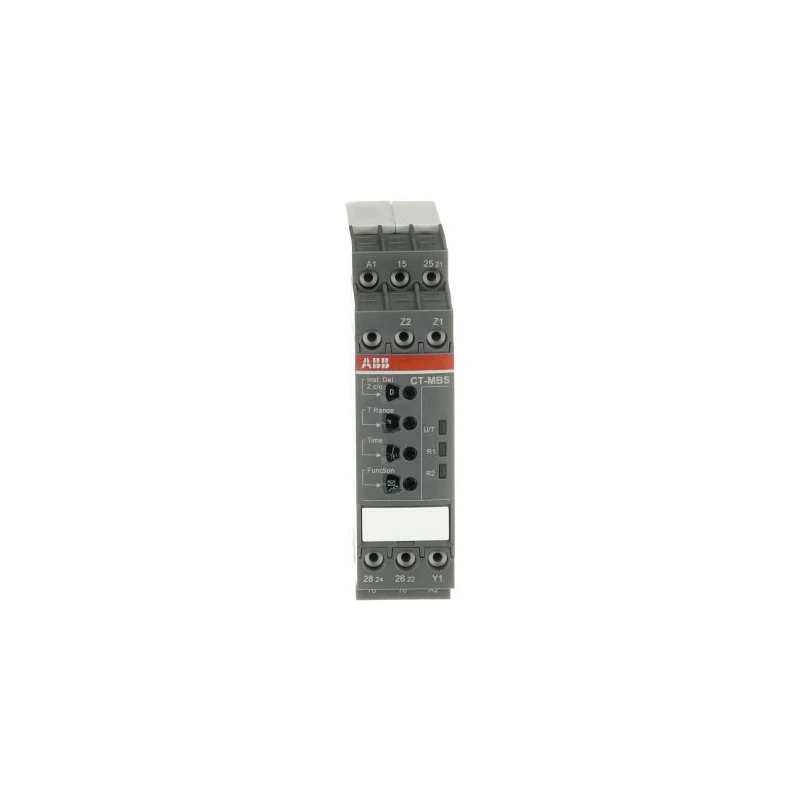

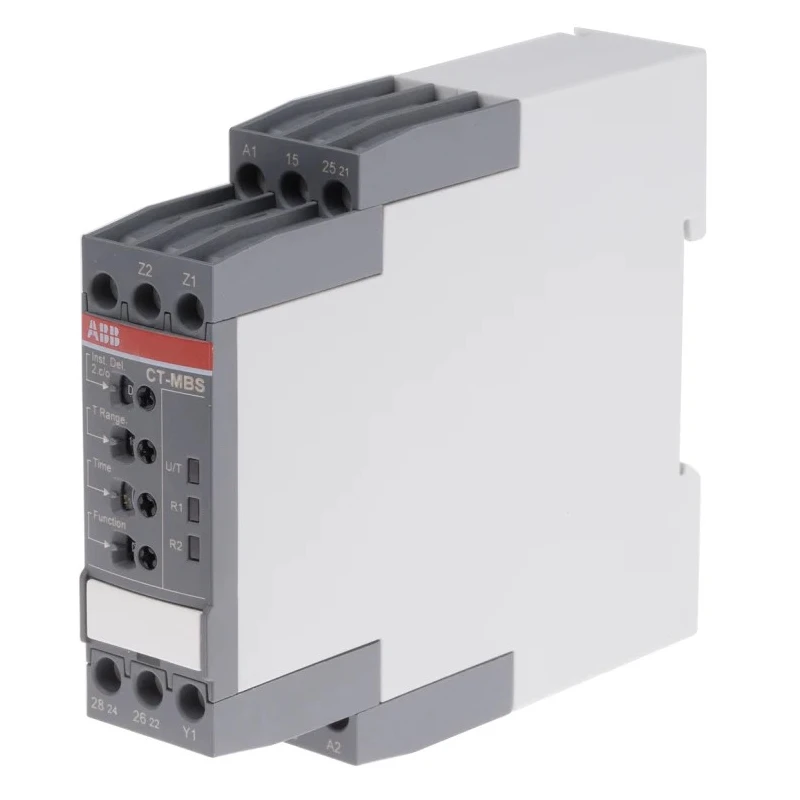

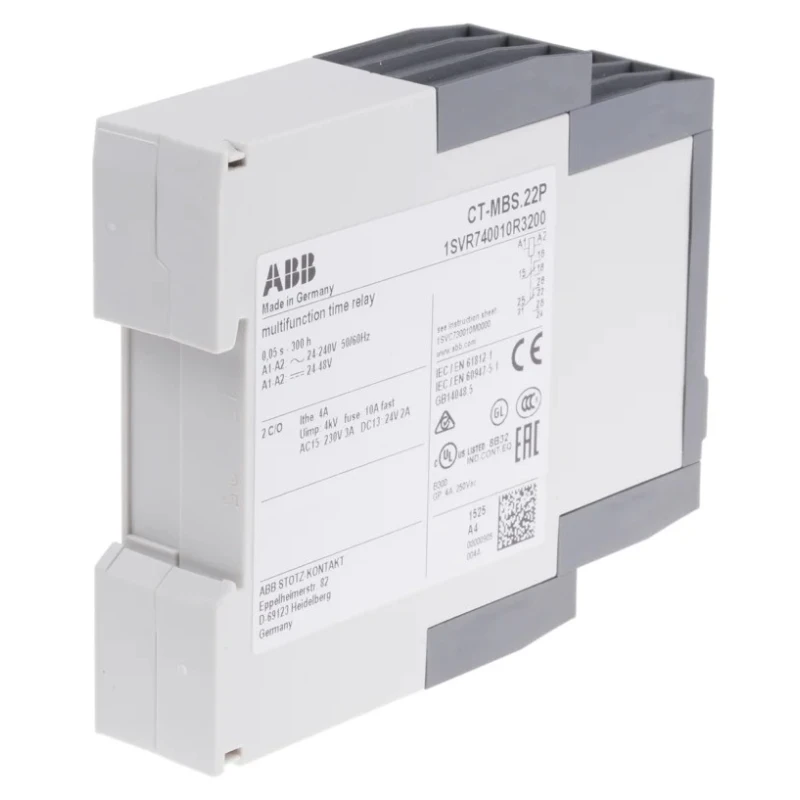

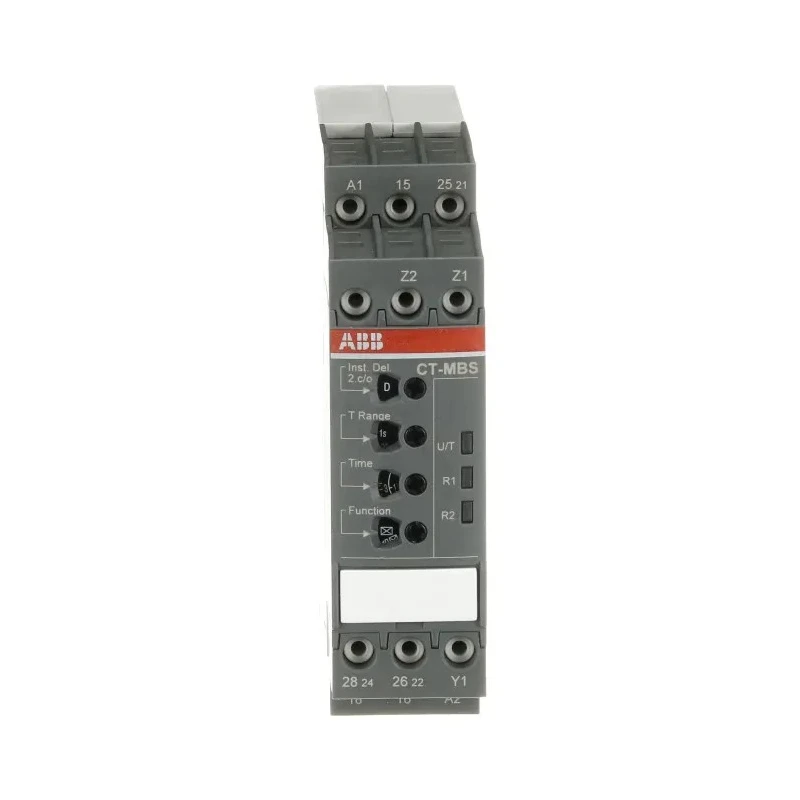

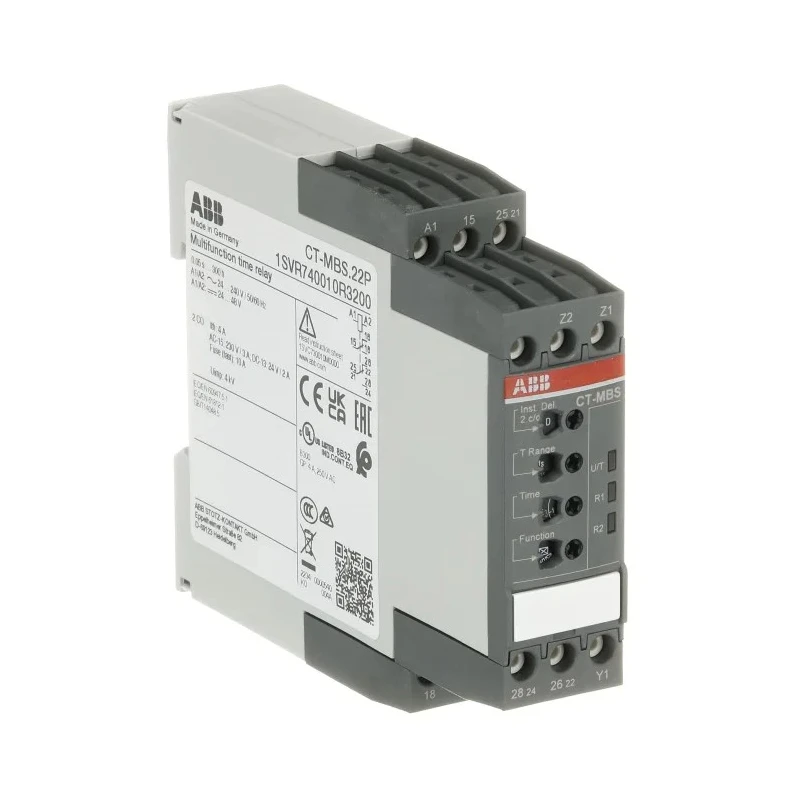

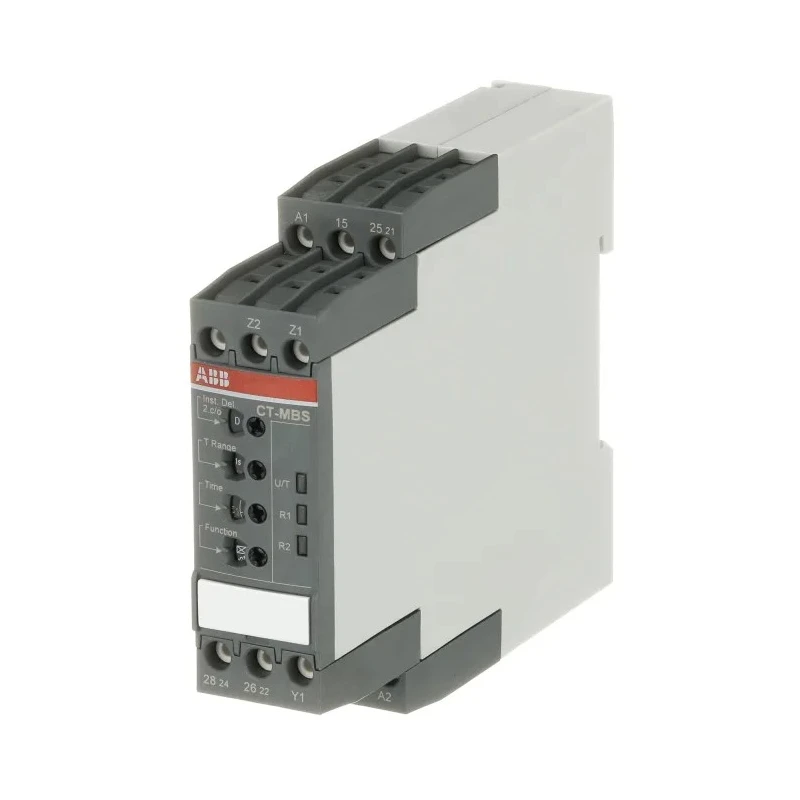

ABB DIN Rail Timer Relay 2-Contact Multifunction, 48 V dc 24V ac 240 V ac, Time Range 0.05 s to 1SVR740010R3200 CT-MBS.22P

ABB 1SVR740010R3200 CT-MBS.22P DIN Rail Timer Relay is a high-performance multifunction timer suitable for a wide range of industrial automation and control applications. Designed to operate on both AC and DC supplies (48 V DC, 24 V AC, and 240 V AC), this relay provides flexible timing capabilities from short durations of 0.05 seconds up to long spans of 300 hours, enabling precise control of time-dependent processes.

This timer relay incorporates two contacts configured as DPDT (double-pole double-throw), able to handle a 4A contact current for moderate control loads. The screwless terminal design facilitates quick and secure wiring without tools, optimizing installation efficiency.

Durability is enhanced through an IP20 and IP50 rated enclosure, protecting the unit against dust and limited ingress of water, making it suitable for various enclosure conditions. The relay can reliably function in a broad operating temperature range from -25°C up to 60°C, suitable for harsh industrial environments.

The compact dimensions (103.7mm length, 22.5mm width, 85.6mm height) make it an excellent choice for panel installations where space is limited, directly mounting onto standard DIN rails.

Applications include automated machinery sequence control, timed lighting and signaling circuits, process control delay functions, as well as pump and motor start sequencing. The multifunction capability allows the relay to be employed in complex control panels requiring versatile timing functions.

Operates with supply voltages of 48 V DC, 24 V AC, and 240 V AC. DPDT 2-contact configuration with 4A rating for reliable switching. Screwless terminals for tool-free wiring and maintenance. IP20 and IP50 protection ensure suitability for different enclosure environments.

Wide time range from 0.05 seconds to 300 hours. Wide temperature range operation from -25°C to 60°C. Compact size facilitating space-saving DIN rail mounting.

This ABB DIN Rail Timer Relay complies with RoHS standards and is ideal for use in industrial, manufacturing, automation, and electrical panel applications. It delivers dependable performance for advanced control and timing requirements.
