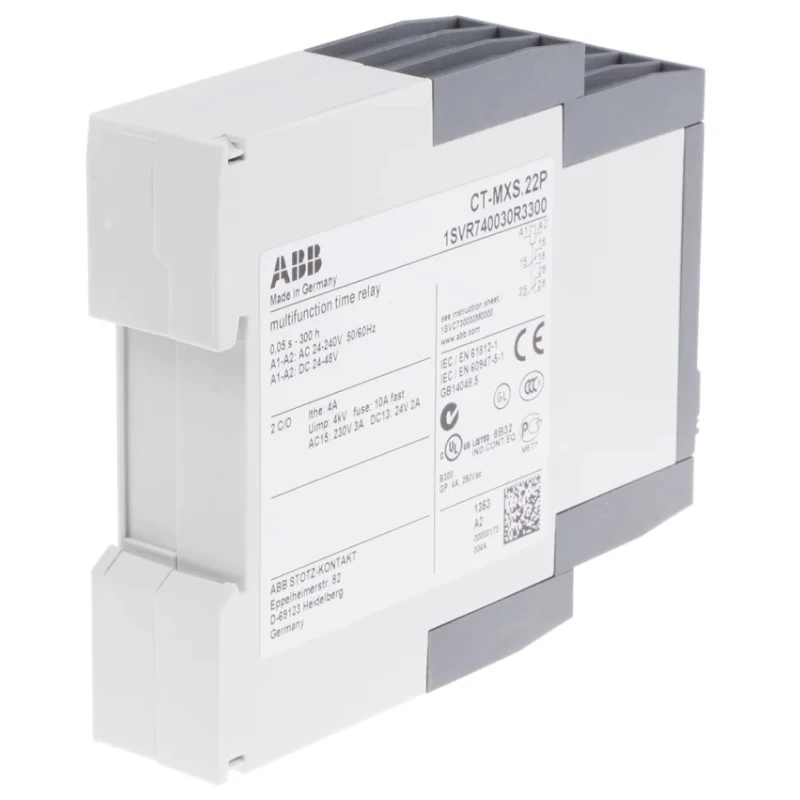

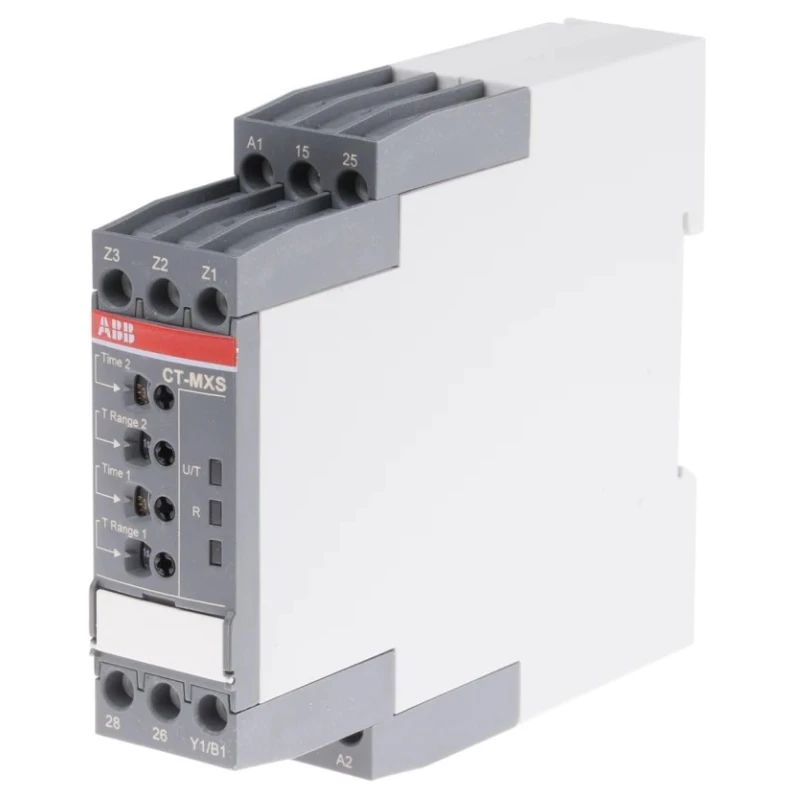

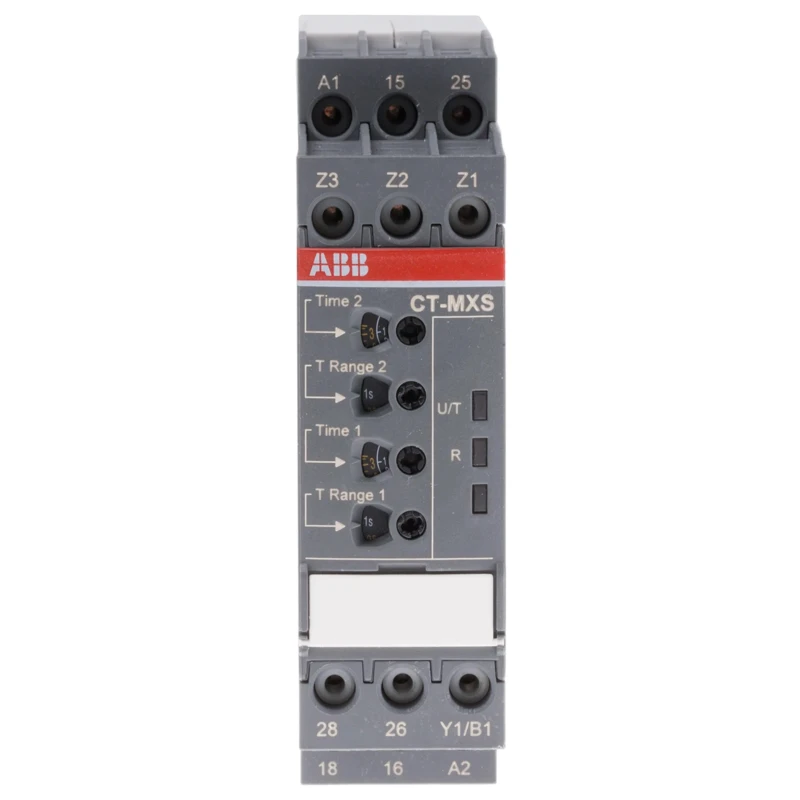

ABB DIN Rail Multifunction Timer Relay 2-Contact DPDT Switch 48 V DC 24 V AC 240 V AC 0.05 s to 1SVR740030R3300 CT-MXS.22P
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Height | 113.4mm |
| Function | Multifunction |
| Length | 85.6mm |
| Model | 1SVR740030R3300 CT-MXS.22P |
| IP Rating | IP50, IP20 |
| Mode | Star-Delta |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Time Range | 0.05 s to 300 h |
| Terminal type | Push-in |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Contact Current | 4A |
| Supply DC Voltage | 48 V dc |
| Supply AC Voltage | 24, 240V ac |
| Timing functions | configurable with DIP switches behind marker label, asymmetrical ON ‑ and OFF ‑ delay, impulse ‑ ON / OFF, pulse generator starting with ON or OFF, single pulse generator, ON / OFF ‑ function |
Key Features
- Multifunctional electronic timer suitable for industrial automation and control applications.
- Supports configurable timing functions with DIP switches behind marker label.
- Operates reliably within temperature range -25°C to 60°C.
- Features push-in terminal type for easy tool-free mounting and demounting on DIN rail.
- Complies with RoHS standards and features IP50, IP20 ingress protection ratings.
- Equipped with 2 C/O (DPDT) contacts rated for 4A contact current.
- Compact dimensions of 113.4mm height, 85.6mm length, and 22.5mm width.
- LED indicators for status indication enable quick operational checks.
Product Description
ABB 1SVR740030R3300 CT-MXS.22P DIN Rail Timer Relay offers multifunction timing capabilities with precise electronic control. Suitable for industrial, electrical, automation, and signal conditioning applications, it features a durable enclosure with fire protection classification and a compact form factor designed for DIN rail mounting.
The relay provides up to 5 timing functions with 2 sets of 10 selectable time ranges, adjustable between 0.05 seconds and 300 hours. Timing functions are configurable via DIP switches, allowing for asymmetrical ON and OFF delay, impulse ON/OFF, pulse generation starting with ON or OFF phases, single pulse generation, and ON/OFF functions.
Designed for robust industrial use, the timer supports supply voltages ranging from 24 to 48 V DC and 24 to 240 V AC, incorporates push-in terminals for efficient tool-free wiring, and includes 2 DPDT contacts rated at 4 A contact current. It operates effectively within a temperature range of -25°C to 60°C and enjoys IP50 and IP20 ingress protection ratings.
The product includes LED status indicators and complies with RoHS standards. The compact size (113.4 mm height × 85.6 mm length × 22.5 mm width) enables space-saving installation in control panels or machinery.
This multifunctional timer relay is applicable in industrial automation systems, electrical panels, HVAC controls, manufacturing machinery, and process control environments. It ensures precise timing control for a wide range of applications requiring programmable delay and pulse functionality.
Multifunction electronic timing with configurable DIP switches. Dual voltage supply: 48 V DC and 24/240 V AC. Tool-free push-in terminal connection on DIN rail. Compact dimensions suited for space-constrained control panels.
Robust operation with IP50/IP20 ingress protection and -25°C to 60°C temperature range. LED indicators for easy status monitoring. 2 DPDT contacts rated for 4 A current. Suitable for industrial automation and electrical control systems.
Explore the variety of Timer Relays and multifunction timers available at EnvMart for enhanced industrial and automation control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay offers a timing range adjustable from 0.05 seconds to 300 hours.
It supports supply voltages of 24 V AC, 240 V AC, and 48 V DC.
The dimensions are 113.4 mm in height, 85.6 mm in length, and 22.5 mm in width.
This model is equipped with 2 DPDT contacts rated for 4 A contact current.
It operates effectively within a temperature range of -25°C to 60°C.
It is designed for DIN rail mounting, featuring push-in terminals for easy installation.
The relay supports multiple timing functions, including asymmetrical ON and OFF delay, impulse ON/OFF, pulse generation, and single pulse generation, all configurable via DIP switches.
It has IP50 and IP20 ingress protection ratings.
Yes, it complies with RoHS standards.
It features push-in terminals for tool-free wiring and demounting.
It is suitable for industrial automation systems, electrical panels, HVAC controls, manufacturing machinery, and process control environments.
This timer relay provides multifunction capabilities with up to 5 timing functions.
