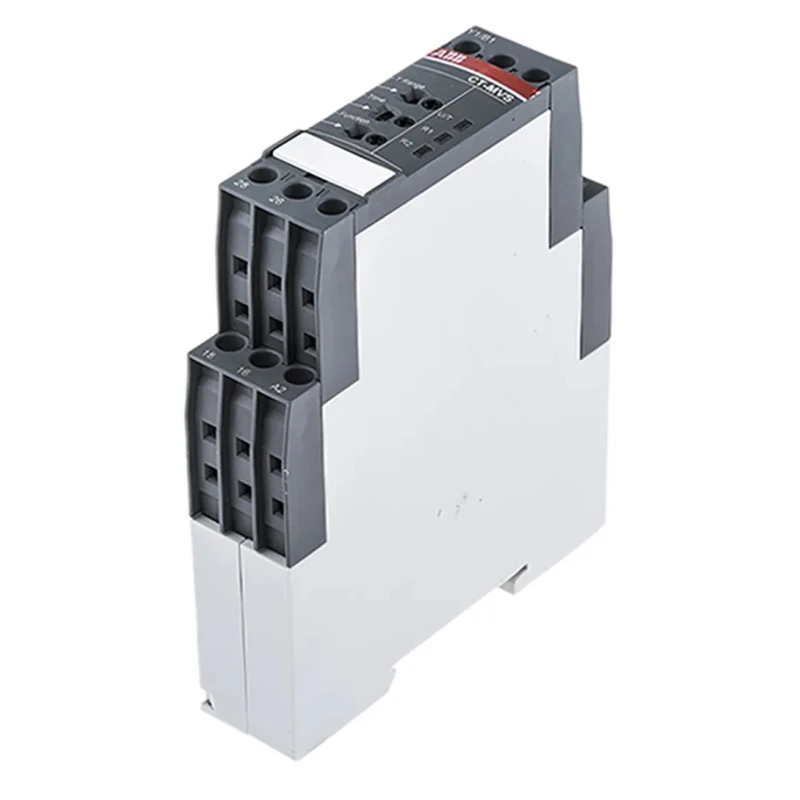

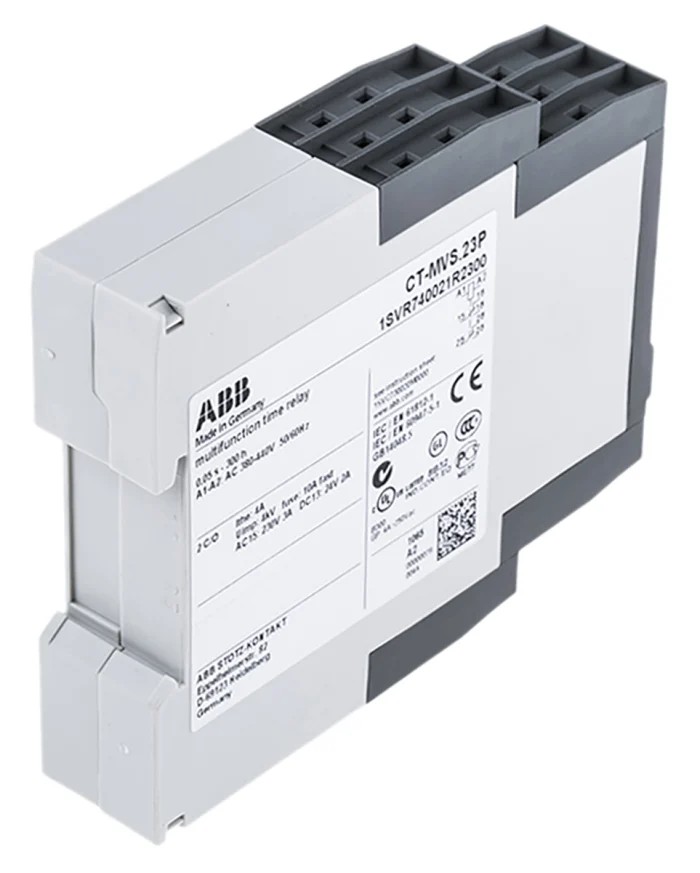

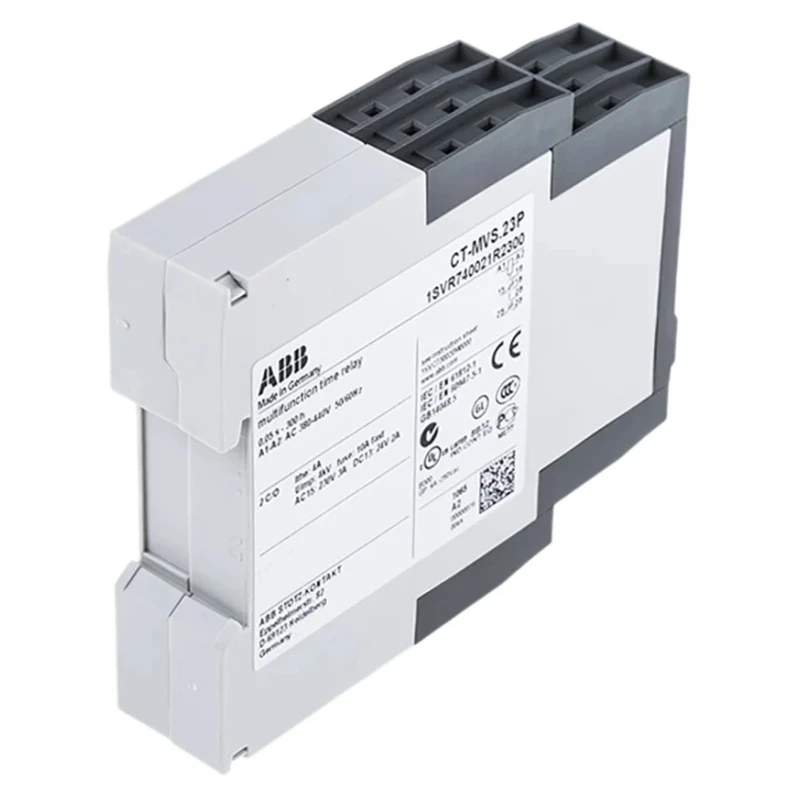

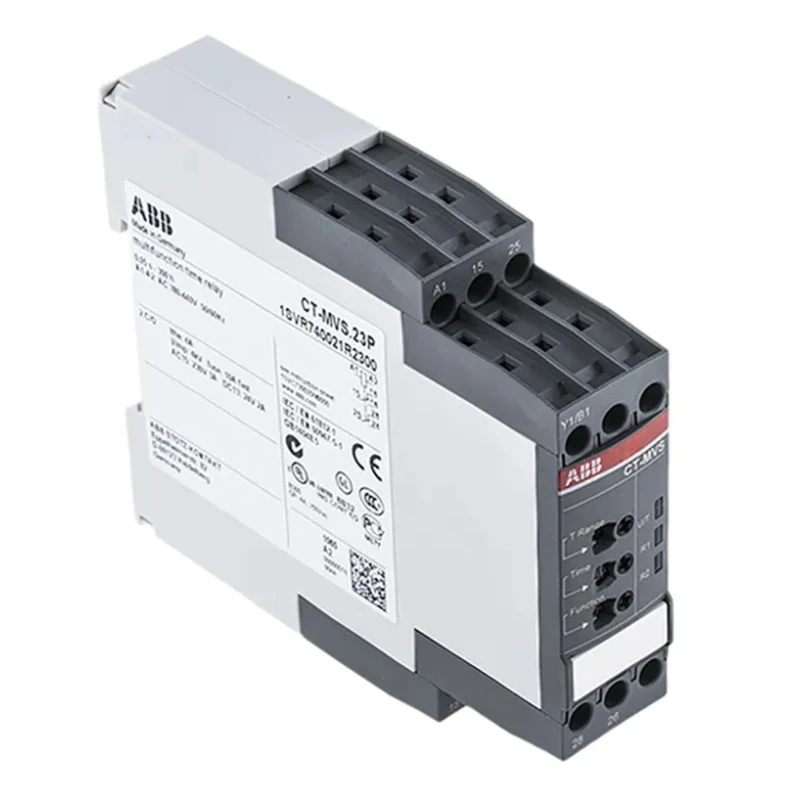

ABB S range Series DIN Rail Timer Relay 2-Contact Multifunction 24 to 240 V ac/dc 440V ac 0.05 s 1SVR740021R2300 CT-MVS.23P

ABB 1SVR740021R2300 CT-MVS.23P DIN Rail Timer Relay features a multifunction timing capability from 0.05 seconds up to 300 hours, making it an essential component for industrial automation and control circuits.

This timer relay is designed for DIN rail mounting and includes 2 double-pole double-throw (DPDT) contacts to manage complex switching operations efficiently. It supports a broad supply voltage range from 24 to 240 V ac/dc and 440V ac, facilitating integration across a variety of electrical systems.

The device operates reliably within an ambient temperature range of -25°C to 60°C, suitable for harsh industrial environments. Its compact form factor (22.5 mm width, and 103.7 mm height and length) ensures space-efficient panel installation. The innovation of screwless cage clamp terminals simplifies wiring and maintenance tasks without compromising connection security.

With IP ratings of IP50 on the front and IP20 on the terminals, this relay ensures protection from dust and accidental contact, enhancing durability in typical control panel applications. Certification to UL94 VO flammability standards and compliance with IEC/EN 60947-1 supports safe industrial usage.

This timer relay finds wide application in timing controls for manufacturing processes, motor control circuits, HVAC systems for scheduled operation, and lighting control systems. The multifunction mode allows the user to select from a variety of timing functions to suit specific application needs.

This timer relay supports multifunction operation for versatile timing control. Equipped with 2 DPDT contacts enhancing switching capabilities. Operates on a wide supply voltage range of 24 to 240 V ac/dc and 440V ac. Rated contact current of 4 A suitable for various control applications.

Robust design allows functioning between -25°C to 60°C operating temperatures. Compact dimensions of 22.5mm width and 103.7mm height and length optimize panel space. Screwless cage clamp terminal design enables quick and easy wiring.

IP50 and IP20 ratings provide protection suitable for control panel environments. Complies with UL94 VO and IEC/EN 60947-1 safety standards ensuring reliability. Ideal for timing control in manufacturing, HVAC, motor control, and lighting systems.

Environmentally robust and technically versatile, the ABB S range Series Timer Relay 1SVR740021R2300 CT-MVS.23P is an excellent choice for industrial, laboratory, manufacturing, HVAC, and commercial automation applications. Explore more quality products and components in our Timer Relay category at EnvMart.
