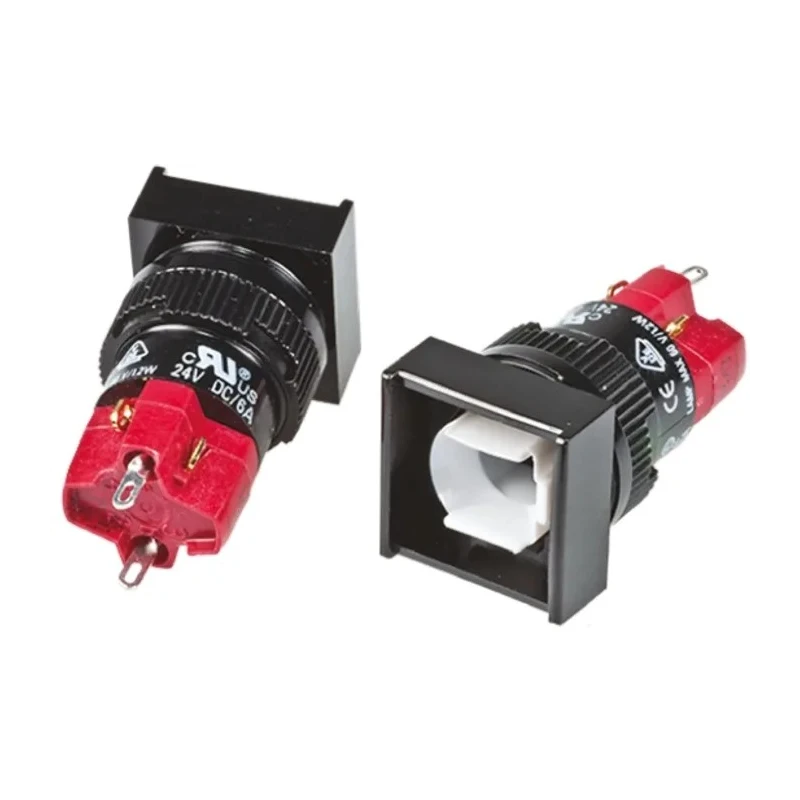

RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPDT 5A 250V AC 745-2568

RS PRO 745-2568 is an illuminated, momentary push button switch designed for panel mounting applications. It requires a 16 mm diameter cutout and features a single pole double throw (SPDT) contact configuration rated at 5A for 250V AC operation. This switch comes with a raised button actuator style for easy operation and is built with solder tag terminals for robust electrical connection.

The switch bezel measures 18x18 mm with a maximum behind-panel depth of 29 mm, making it suitable for panels with thickness between 0.5 and 5 mm. Illumination is enabled through a compatible T1 ¾ (MG5.7s) midget groove filament lamp or LED, which can be combined with various lens colors and shapes manufactured from durable polycarbonate.

Certified to VDE and cUL standards, the RS PRO 745-2568 ensures compliance with international safety and quality regulations. Its design supports industrial, electrical control, automation, and manufacturing environments where reliable and visible operator input devices are necessary.

Square bezel with 18x18 mm dimensions and 29 mm panel depth. Momentary switch operation with SPDT contact configuration. Illuminated with filament lamp or LED for visual indication. Solder tag terminals for secure connections.

Compatible with various polycarbonate lenses in multiple colors and shapes. Suitable for panels 0.5 - 5 mm thick. Meets VDE and cUL approval standards. Manufactured in Taiwan, Province Of China with consistent quality. This product is ideal for electrical panels, industrial machinery controls, automation systems, and other applications requiring durable and visible push button control switches.

Explore the comprehensive selection of Push Button Switches and related automation components available at EnvMart to find compatible lenses, filament lamps, and LEDs for your specific industrial needs.
