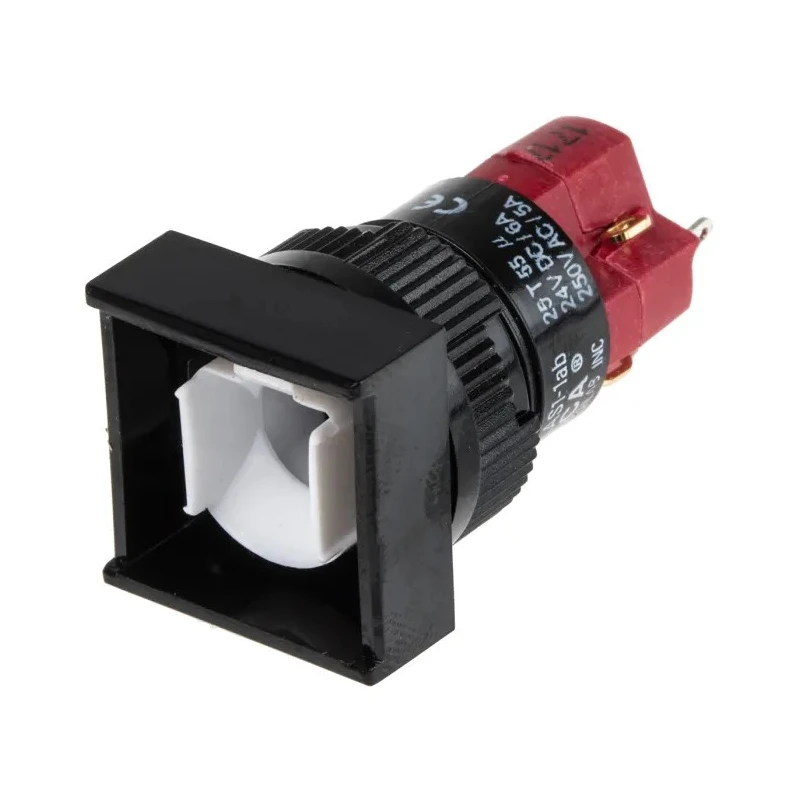

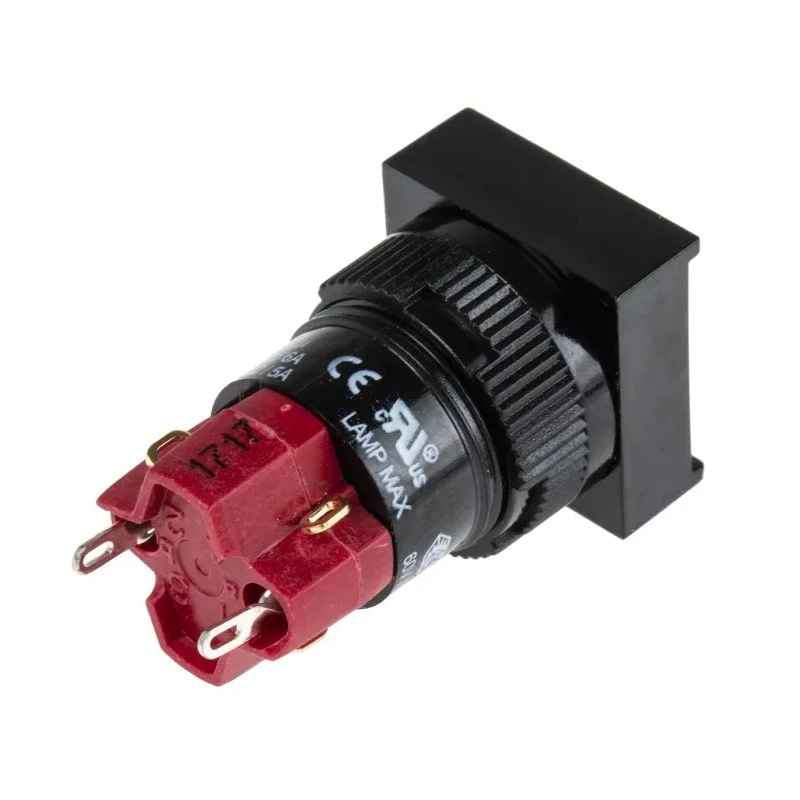

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 16 mm Cutout, SPDT, IP40, 250 V AC, 5A Current 745-2556
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 35.8mm |
| Length | 18mm |
| Model | 745-2556 |
| IP Rating | IP40 |
| Width | 7.2mm |
| Mount Type | Panel |
| Contact Configuration | SPDT |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | cUL, VDE |
| Switch Operation | Latching |
| Contact DC Voltage | 250V |
| Actuator Style | Raised Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- This switch features a raised button actuator style for ease of use.
- Designed for 250 V AC contact voltage and supports a contact current of 5A.
- It has a panel mount type suitable for panels 0.5 to 5mm thick.
- The switch includes solder terminal types for reliable connections.
- Constructed to meet cUL and VDE standards for safety and performance.
- Compact dimensions with a width of 7.2 mm, length of 18 mm, and height of 35.8 mm.
- The product is manufactured in Taiwan, Province Of China.
Product Description
RS PRO 745-2556 is an illuminated, latching push button switch designed specifically for panel mounting applications. It features a 16 mm diameter panel cutout and SPDT (Single Pole Double Throw) contact configuration, making it suitable for various industrial, electrical, and automation control panels. The switch is rated for 250 V AC contact voltage with a current rating of 5A, ensuring reliable operation in demanding environments.
The actuator has a raised button style, providing tactile feedback and ease of operation. The switch is constructed with solder tag terminals to provide a secure electrical connection. It conforms with industry safety standards including cUL and VDE approvals, making it appropriate for commercial and industrial use.
Its IP40 rating offers basic protection against solid objects greater than 1 mm, suitable for indoor panel installations. The product dimensions are compact, with a 7.2 mm width, 18 mm length, and 35.8 mm height, facilitating installation in tight panel spaces.
The switch is part of the SD16 series, designed to fit standard industry 16 mm diameter cut-outs, with compatibility for various lenses and illumination accessories available separately. It supports panel thickness from 0.5 to 5 mm.
This Push Button Switch is ideal for applications in industrial automation, control systems, electrical panels, and machinery where reliable manual control switching is required. This switch has a latching operation mode for on/off control.
The illuminated feature enhances visual status indication on the switch. Complies with cUL and VDE standards ensuring quality and safety. Compact size and panel mount type suit various electrical panels. Manufactured in Taiwan, Province Of China, ensuring high manufacturing standards.
Explore more RS PRO electrical components and switches for your industrial applications here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, suitable for various applications in control panels.
It is rated for a contact voltage of 250 V AC and a contact current of 5A, ensuring reliable operation in demanding environments.
The dimensions of this switch are 7.2 mm in width, 18 mm in length, and 35.8 mm in height, making it compact for installation in tight spaces.
This unit is equipped with solder tag terminals, providing a secure electrical connection for reliable operation.
The switch has an IP40 rating, which offers basic protection against solid objects greater than 1 mm, suitable for indoor installations.
It requires a panel cutout size of 16 mm, allowing it to fit standard industry panel openings.
This model operates in a latching mode, allowing for on/off control in various applications.
It conforms to cUL and VDE standards, ensuring safety and performance in commercial and industrial applications.
The switch features a raised button actuator style, providing tactile feedback and ease of operation.
This switch is designed for panel thicknesses ranging from 0.5 to 5 mm, making it versatile for various mounting scenarios.
It is manufactured in Taiwan, Province Of China, ensuring adherence to high manufacturing standards.
It is ideal for use in industrial automation, control systems, electrical panels, and machinery requiring reliable manual control switching.
