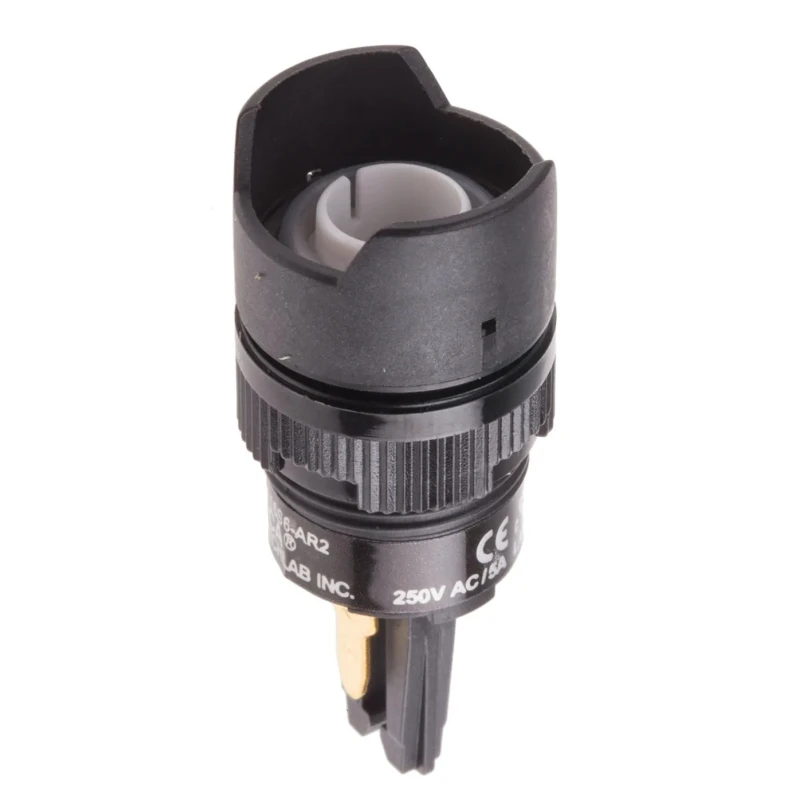

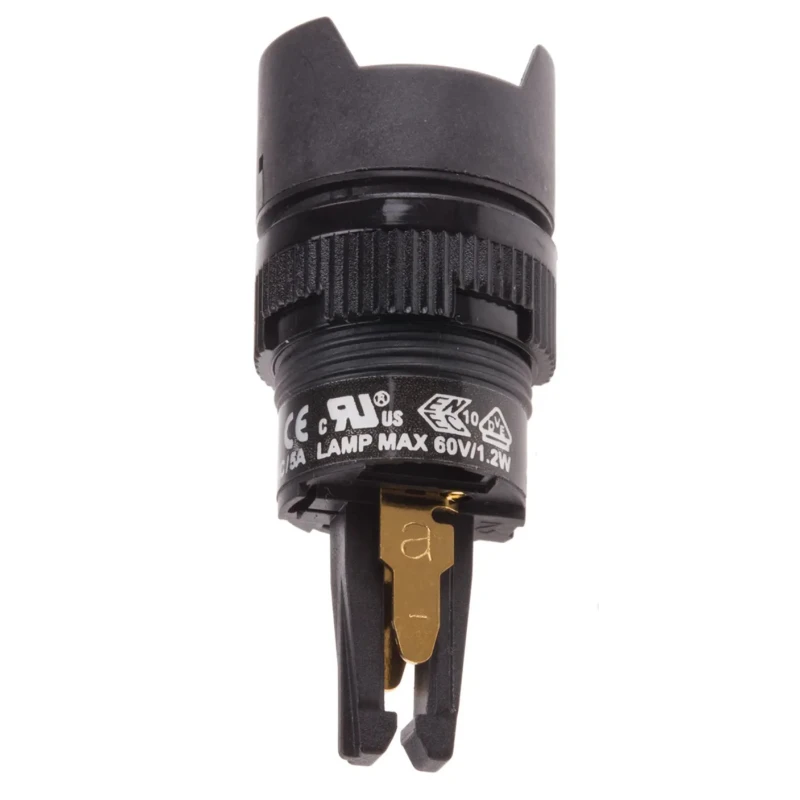

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 16 mm Cutout, IP65, 125 V AC 745-2449
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 745-2449 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Panel Cutout Size | 16 mm |
| Terminal type | Tab |
| Standards/Approvals | VDE, UL, cUL, CE |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Actuator Style | High |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| RS PRO Emergency Stop Push Button, Panel Mount, 16 mm Cutout, DPDT, IP65Brand | RS PRO |
Key Features
- The switch features a black high-style actuator for ease of use.
- Its construction ensures waterproof sealing with an IP65 panel rating.
- Latching operation provides reliable alternate on/off switching.
- Suitable for panel thicknesses between 0.5 and 5 mm with a 16 mm diameter cutout.
- Equipped with tab terminals sized 2.8x0.5 mm for easy connection.
- VDE, UL, cUL, and CE approvals ensure industrial standard compliance.
- Operates safely at a contact AC voltage of 125 V and contact current rating of 5 A.
- The switch has silver contacts and insulation resistance greater than 50 MΩ.
Product Description
RS PRO 745-2449 is an illuminated push button switch designed for demanding industrial and electrical applications. Featuring a latching operation, this switch ensures reliable alternate toggling in control panels and automation systems.
It is engineered for panel mounting with a precise 16 mm diameter cutout to fit panels with thicknesses ranging from 0.5 to 5 mm. Its high actuator style in black provides enhanced user interface ergonomics.
The switch meets IP65 waterproof standards, making it suitable for environments exposed to dust and moisture. The robust construction includes silver contacts, which provide excellent conductivity and durability, along with insulation resistance exceeding 50 MΩ for enhanced safety.
Equipped with tab terminals sized 2.8x0.5 mm, the switch allows for straightforward direct soldering or plug-in receptacle connections. It complies with multiple certifications including VDE, UL, cUL, and CE ensuring reliable performance and safety in industrial electrical controls.
The switch supports contact AC voltage up to 125 V and contact current rating of 5 A. Its operating temperature ranges from -25°C to +55°C without the lamp installed, and up to +70°C when lamp is absent. Designed modularly, the switch can be combined with various contact blocks and lenses for customized illumination and functionality.
The lenses come in multiple colors and shapes and are made from polycarbonate, allowing for engraving and customization. Applications include automation, industrial machinery, manufacturing, and electrical panel controls requiring robust, waterproof illuminated controls.
This RS PRO illuminated push button switch provides a dependable, versatile, and user-friendly interface solution that meets the rigorous demands of modern industrial environments.
Explore the extensive range of RS PRO Push Button Switches and accessories at EnvMart for your electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this switch is 5 A.
It has an IP65 rating, making it suitable for environments exposed to dust and moisture.
This model requires a panel cutout size of 16 mm.
It operates safely at a contact AC voltage of 125 V.
It is equipped with tab terminals sized 2.8x0.5 mm for easy connection.
The operating temperature ranges from -25°C to +55°C without the lamp installed, and up to +70°C when the lamp is absent.
It complies with VDE, UL, cUL, and CE certifications, ensuring industrial standard compliance.
The actuator style is high, and its color is black.
It is suitable for automation, industrial machinery, manufacturing, and electrical panel controls.
The insulation resistance is greater than 50 MΩ, enhancing safety.
This switch is designed for panel mounting.
Yes, it can be combined with various contact blocks and lenses for customized illumination and functionality.
