RS PRO Contact & Light Block for Use with ADA16E Series 250 V ac 2 NO/2 NC ADA16E

Free Delivery in India | Lowest Global Shipping Charges

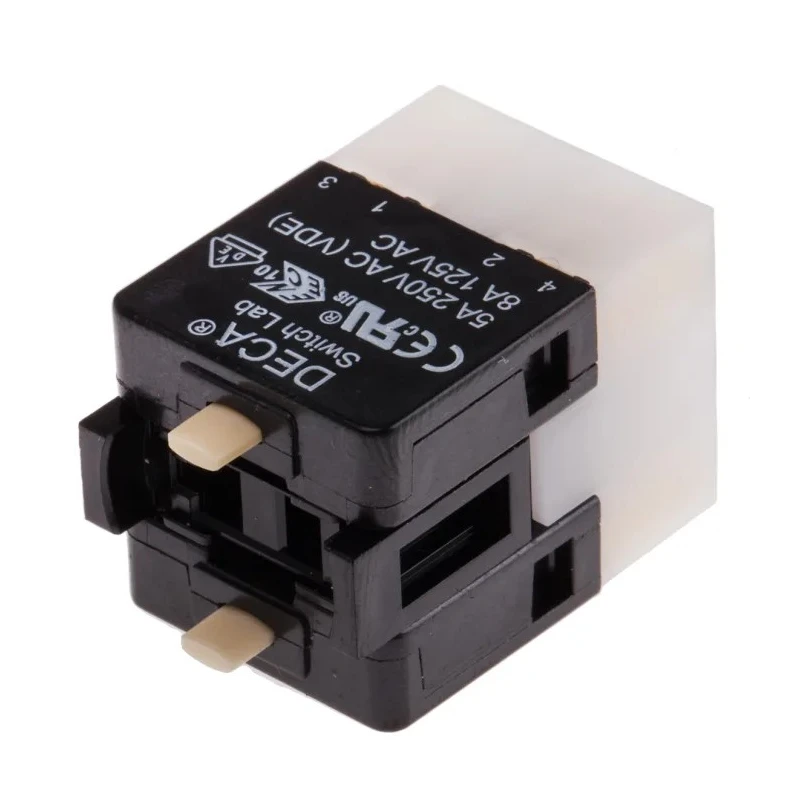

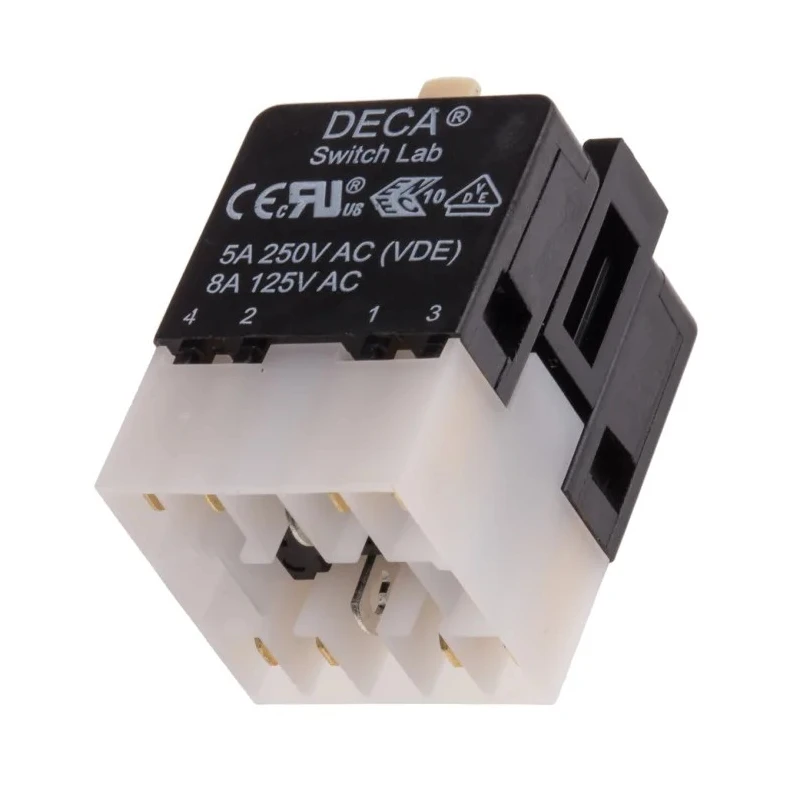

RS PRO Contact & Light Block for Use with ADA16E Series 250 V ac 2 NO/2 NC ADA16E

Name: RS PRO Contact & Light Block for Use with ADA16E Series 250 V ac 2 NO/2 NC ADA16E
Brand: RS PRO
SKU: 362724
Price: 1101.38 INR
Availability: InStock



Category Push Button Contact Blocks & Light Blocks Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	ADA16E
Maximum Operating Temperature	55°C
Contact Configuration	2 NO/2 NC
Minimum Operating Temperature	-25°C
For Use With	ADA16E Series
Contact AC Voltage	250V ac
Saia-Burgess Push Button Switch, Panel Mount, 16.5mm Cutout, DPST, IP67Brand	Saia-Burgess

Key Features

The contact block offers 2 normally open and 2 normally closed contacts to support varied switching needs.
Operates reliably within a temperature range from -25°C to +55°C for versatile industrial environments.
Designed for compatibility with ADA16E series push button switches ensuring easy assembly and customization.
Features silver contacts with high insulation resistance above 50 MΩ ensuring safety and durability.
Universal 2.8x0.5mm terminals accommodate soldering or plug-in connections for straightforward installation.
Panel mounting supports a standard 16mm diameter cut-out in panels of thickness between 0.5mm and 5mm.
Modular design allows combination with push button operators and illumination lenses for complete switch assemblies.
Constructed for commercial and industrial use covering electrical automation, HVAC, manufacturing, and control panels.

Product Description

The RS PRO ADA16E Contact & Light Block Model ADA16E is a high-quality modular component designed for use with ADA16E series push button switches. It supports 250 V ac contact voltage with 2 normally open (NO) and 2 normally closed (NC) contacts, providing flexible control in industrial and automation applications.

Its construction ensures IP65-rated waterproof panel sealing, suitable for environments requiring durable and reliable electrical components, including manufacturing, HVAC, industrial automation, and electrical distribution panels. The product is compatible with 16mm diameter panel cut-outs, accommodating panel thickness from 0.5mm to 5mm. The contact block uses silver contacts and maintains insulation resistance above 50 MΩ, ensuring safety and performance under conditions from -25°C to 55°C.

The contact block features universal terminals (2.8x0.5mm) suitable for soldering or plug-in receptacles, facilitating easy installation and wiring. It forms part of a modular system where push button operators, lenses, and filament lamps or LEDs can be combined to customize switch assemblies. The product is ideal for use in electrical automation, industrial machines, control panels, and other commercial and manufacturing applications requiring dependable push button switch components.

The contact block provides 2 NO and 2 NC contacts for versatile switching control. Waterproof panel sealing rated at IP65 enhances durability in harsh conditions. Compatible with ADA16E series push button switches designed for 16mm panel cut-outs.

Silver contacts and high insulation resistance over 50 MΩ ensure long-lasting operation. Universal terminals allow soldering or plug-in installation for flexibility. Operating temperature range from -25°C up to 55°C suits varied industrial environments.

Supports electrical automation and control panel applications across industries.

Set contains one contact and light block for integration into industrial push button assemblies. Designed and manufactured to provide reliable switching in commercial and industrial settings. Explore more RS PRO electrical switch components and automation solutions on EnvMart.

Explore more products in our Push Button Contact Blocks & Light Blocks category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The contact block features a configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, allowing for versatile switching applications.

It operates reliably at a maximum temperature of 55°C, making it suitable for various industrial environments.

This model supports a contact voltage of 250 V ac, suitable for various electrical applications.

The contact block maintains an insulation resistance above 50 MΩ, ensuring safety and performance in its applications.

It can operate within a temperature range from -25°C to 55°C, accommodating a variety of industrial conditions.

This contact block is designed for compatibility with a standard 16mm diameter panel cut-out.

The minimum operating temperature for this contact block is -25°C, allowing it to function in colder environments.

It features universal terminals sized 2.8x0.5mm, suitable for soldering or plug-in connections, facilitating easy installation.

Yes, it has an IP65 rating for waterproof panel sealing, making it suitable for harsh industrial environments.

This model is specifically designed for use with the ADA16E series push button switches, allowing for easy assembly.

It is ideal for use in electrical automation, HVAC, manufacturing, and control panels, supporting various industrial applications.

The contact block is manufactured in Taiwan, ensuring quality and compliance with industrial standards.
