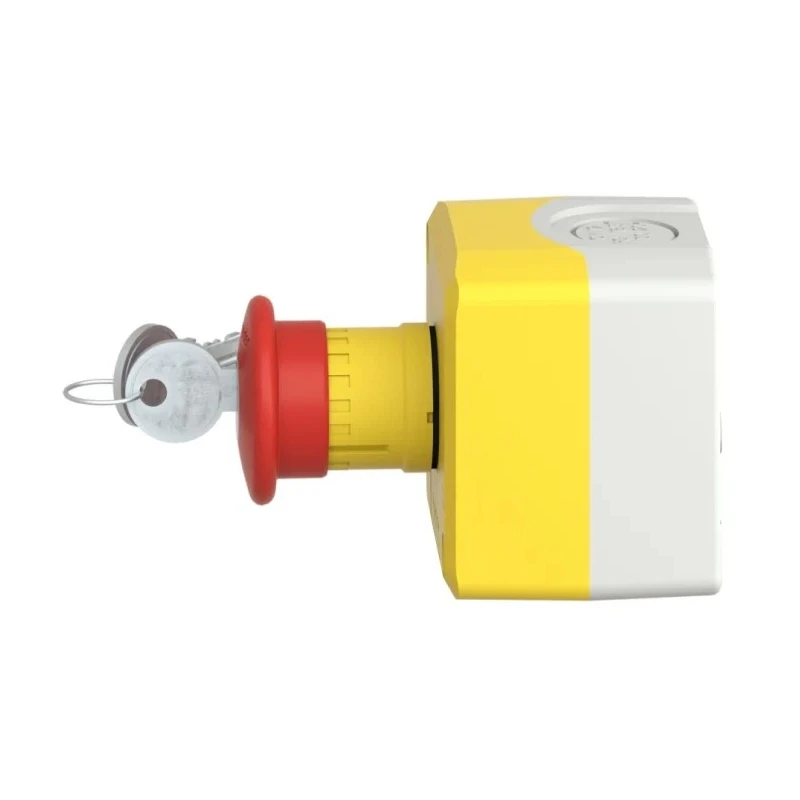

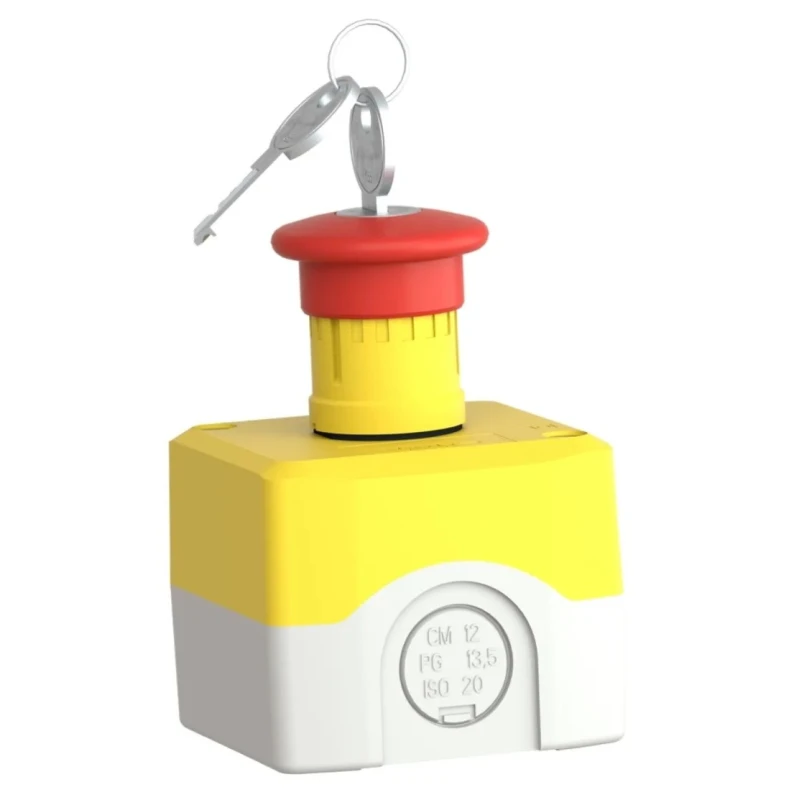

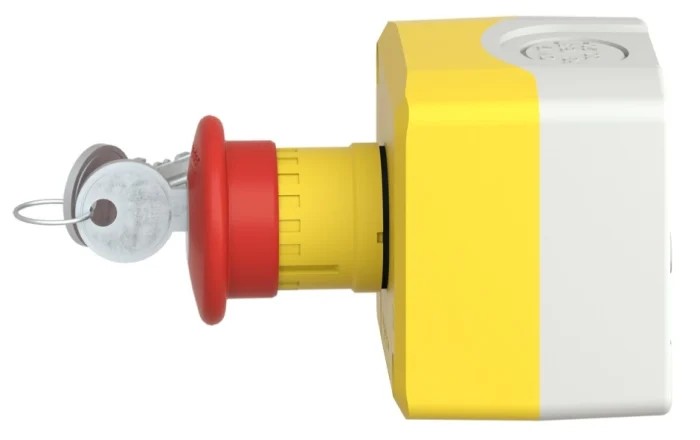

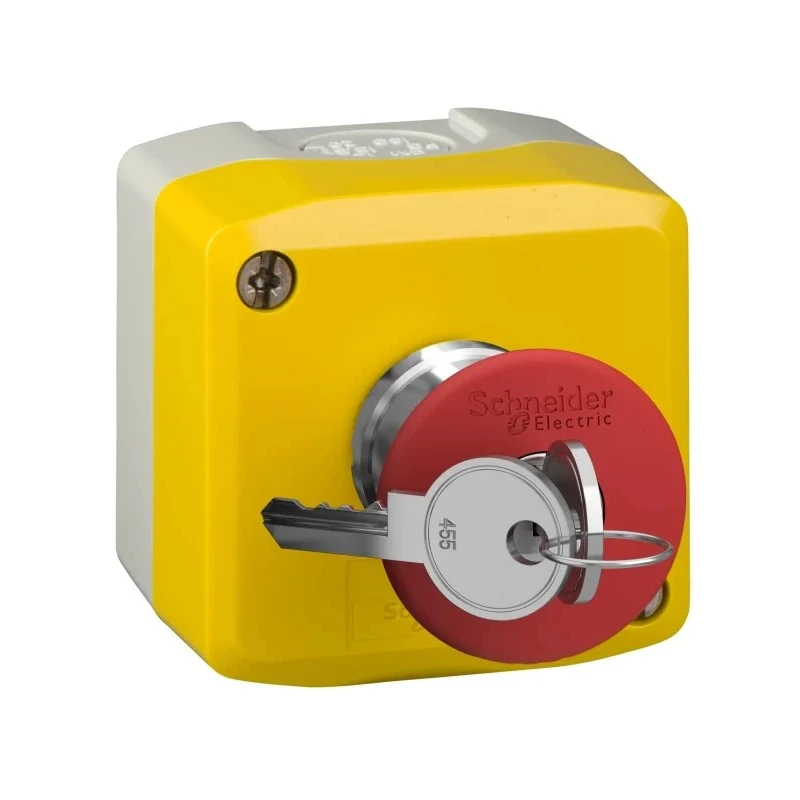

Schneider Electric Harmony Series Key Release Emergency Stop Push Button, Surface Mount, 1 NC, IP69K, IP67, IP66 XALK188

Name: Schneider Electric Harmony Series Key Release Emergency Stop Push Button, Surface Mount, 1 NC, IP69K, IP67, IP66 XALK188
Brand: Schneider Electric
SKU: 372018
Price: 7902.89 INR
Availability: InStock



Category Emergency Stop Push Button Brand Schneider Electric Condition New

Specifications

Country of Origin	Czech Republic
Brand	Schneider Electric
Colour	Yellow
Length	68mm
Model	XALK188
Depth	105.5mm
IP Rating	IP69K, IP67, IP66, IP69
Width	68mm
Mount Type	Surface Mount
Housing Material	Polycarbonate
Series	Harmony
Contact Configuration	1 NC
Hazardous Area Certification	IECEx
Contact AC Voltage	600V ac
Number of Auxiliary Contacts	3
Push Button Actuation	Key Release
Push Button Material	Plastic
Schneider Electric Emergency Stop Push Button, Panel Mount, SPSTBrand	Schneider Electric
Schneider Electric Push Button, IP65Brand	Schneider Electric

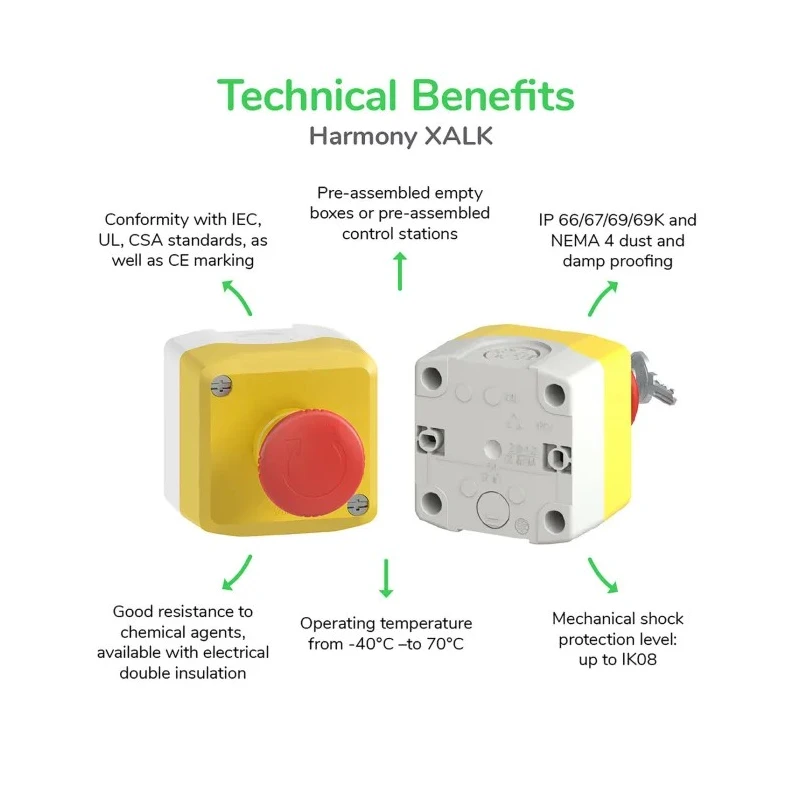

Key Features

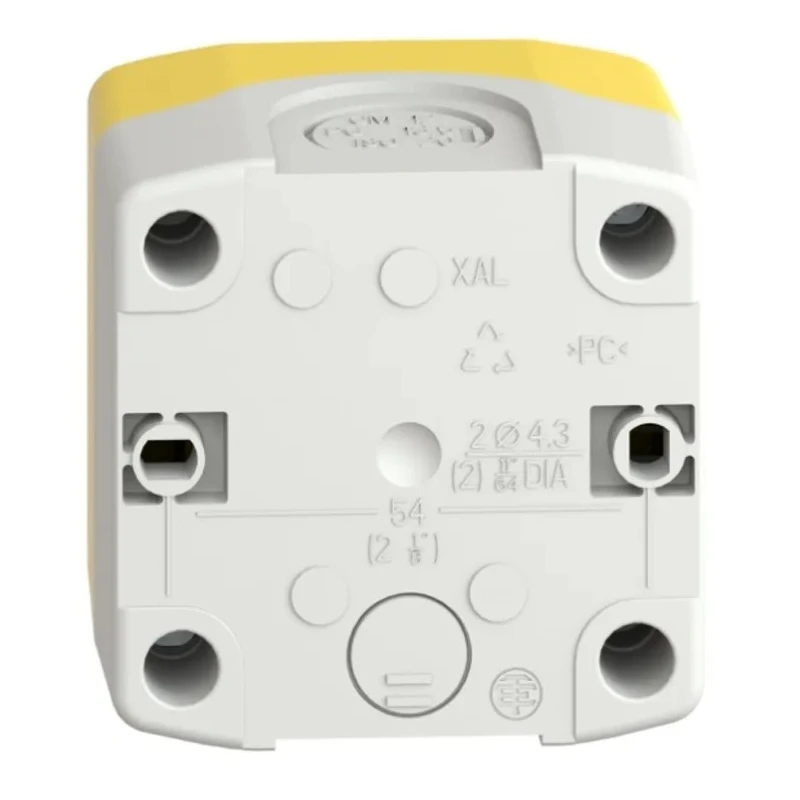

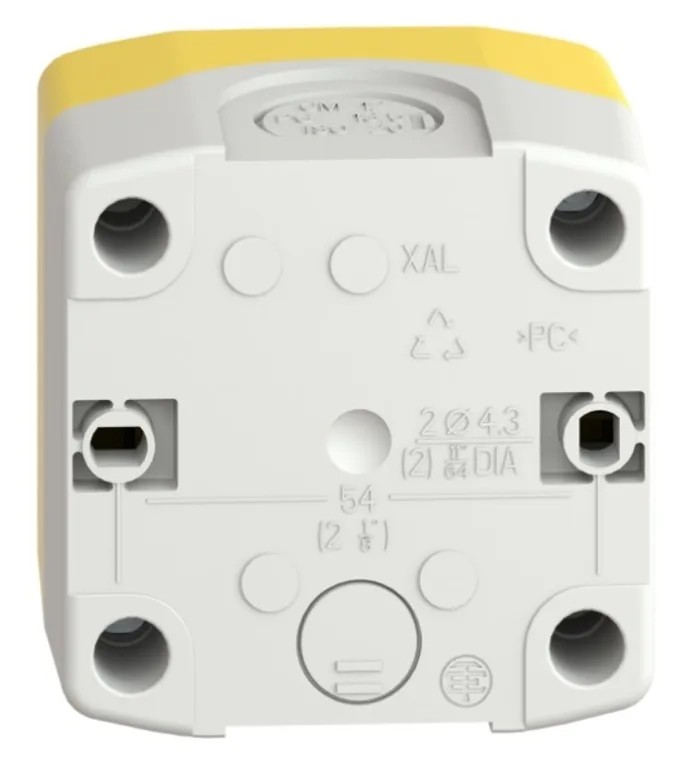

Designed for surface mounting on walls or control panels.
Features 1 normally closed (NC) contact for immediate power cut-off.
Key release mechanism ensures controlled restart after emergency stop.
Constructed with durable polycarbonate housing for industrial environments.
Rated IP69K, IP67, IP66, and IP69 for high resistance to dust and water ingress.
Capable of operating under temperature range from -40°C to +70°C.
Includes three auxiliary contacts to suit diverse control needs.
Supports AC voltage of up to 600V for use in high-power applications.

Product Description

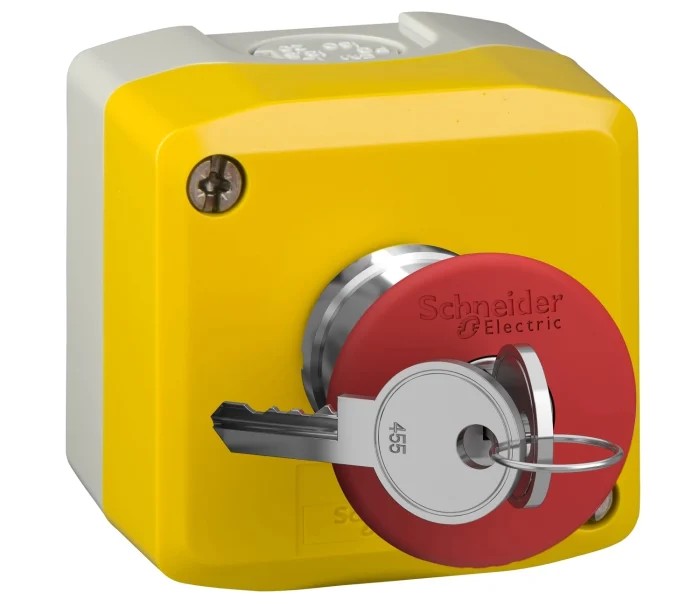

Schneider Electric XALK188 Harmony Series Key Release Emergency Stop Push Button is a surface mount device designed for immediate and secure machine shutdown in emergencies. This unit features a robust polycarbonate housing and a single normally closed contact that interrupts power upon activation.

The key release mechanism ensures that the button cannot be reset without a specific key, preventing accidental restarts and enhancing safety in industrial environments. Rated with ingress protection standards IP69K, IP67, IP66, and IP69, it withstands harsh conditions involving dust, water jets, and steam cleaning.

Dimensions of 68 mm in length and width, with a depth of 105.5 mm, enable compact installation on control panels, walls, or vehicle mounts. Its electrical rating supports application voltages of up to 600V AC, making it suitable for demanding electrical environments.

Three auxiliary contacts allow flexible connections tailored to specific control configurations. Silver-alloy contacts are used to maintain high conductivity and prevent corrosion, ensuring long-term reliability.

This emergency stop station is ideal for use in industries such as manufacturing, boating, and electrical control systems. Its wide operating temperature range from -40°C to +70°C accommodates both low-temperature and high-heat environments.

Reliable surface mounting for emergency control access. Key release prevents unauthorized or accidental reset. Robust polycarbonate construction for industrial durability. High ingress protection ensures suitability for harsh environments.

Three auxiliary contacts provide versatile connection options. 600V AC contact rating supports high-power applications. Compact size fits efficiently on crowded control panels. Wide temperature range for diverse operational conditions.

Silver-alloy contacts enhance performance and corrosion resistance. Explore more Schneider Electric switching solutions and emergency stop components on EnvMart for your industrial and automation projects.
