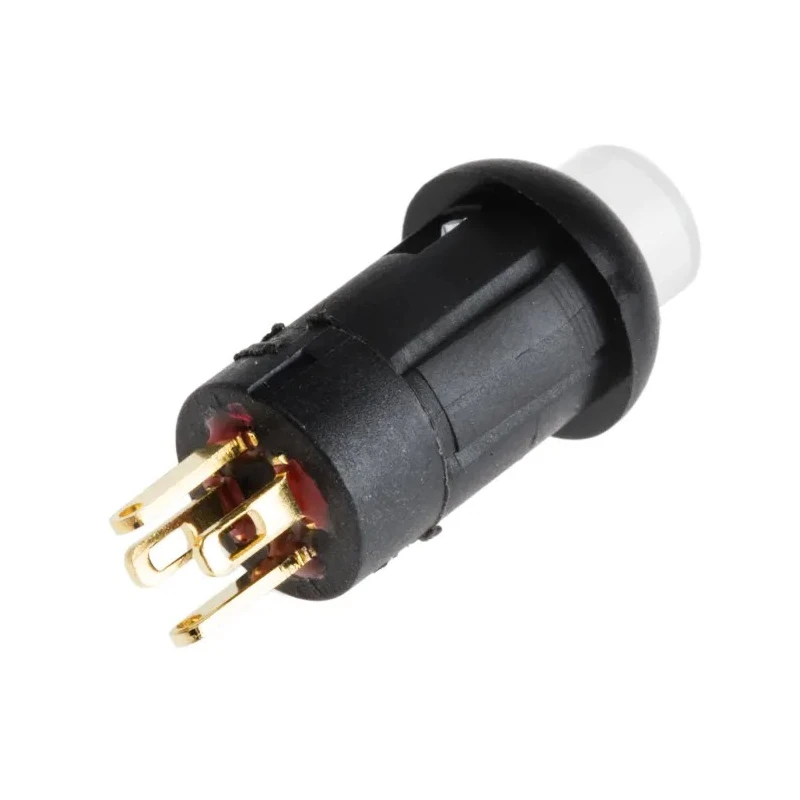

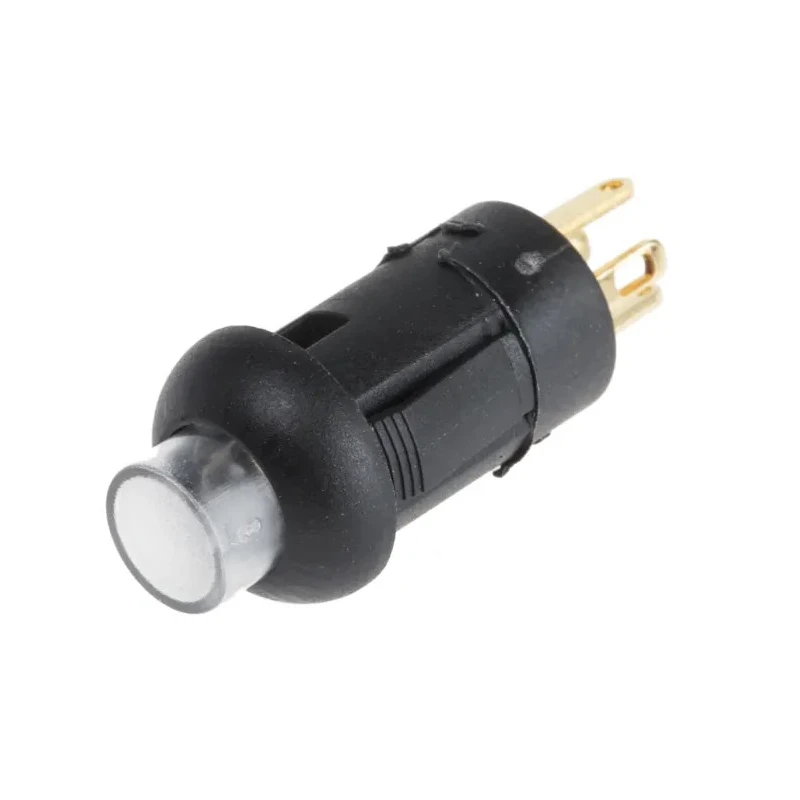

RS PRO Illuminated Miniature Push Button Switch, Momentary, PCB Mount, 8 mm Cutout, SPST, Red LED, 30V DC/AC 8207521P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 8207521P |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 8 mm |
| Terminal type | PCB Pin |
| LED Colour | Red |
| Switch Operation | Momentary |
| Contact DC Voltage | 30V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Operating Force | 250±100gf (gram-force) |
| Contact AC Voltage | 30V ac |
| Total travel | 1.2±0.3mm |
Key Features
- Momentary switch operation ensures precise control for various applications.
- Illuminated with a red LED for clear status indication.
- Compact design with 8 mm cutout and PCB mountable terminals.
- Supports both 30 V DC and 30 V AC contact voltages.
- Constructed with Nylon 6/6 housing and gold-plated copper alloy terminals for durability.
- Operates up to 85°C maximum temperature for robust performance.
- Offers a long operating life of 50,000 cycles for dependable use.
- Typical applications include test equipment, telecommunications, and handheld appliances.
Product Description
RS PRO 8207521P Illuminated Miniature Push Button Switch is a high-quality momentary switch designed for PCB mounting with an 8 mm panel cutout size. It features a single-pole single-throw (SPST) contact configuration with a cap-style actuator and a clear illuminated red LED for easy status recognition. This switch operates safely with contact voltages up to 30 V DC and 30 V AC and supports a switch contact current of 100 mA.
The switch housing is made from durable Nylon 6/6 while the terminals use copper alloy with gold plating to ensure reliable electrical connections and corrosion resistance. It can withstand maximum operating temperatures up to 85°C, making it suitable for demanding industrial and electronic environments.
The operating force for the switch is 250±100 gram-force, with a total travel distance of 1.2±0.3 mm. This miniature push button switch has an operating life rated at 50,000 cycles, providing longevity in repeated use scenarios.
It is ideal for various applications such as test equipment, telecommunications systems, networking devices, and handheld appliances, where momentary switch function and illuminated feedback are essential.
Momentary switch operation provides accurate control. Red LED illumination offers clear visual indication. Compact and easy PCB mounting with an 8 mm panel cutout. Durable materials with Nylon housing and gold-plated copper alloy terminals.
Supports contact voltages of 30 V DC and 30 V AC safely. Reliable switching with a 100 mA contact current rating. Designed to operate up to 85°C maximum temperature. Long-lasting performance with 50,000 operational cycles.
Suitable for industrial, laboratory, telecommunications, and manufacturing use.
RS PRO products undergo rigorous quality testing to meet high industry standards. This illuminated miniature push button switch combines compact design with functional reliability, making it an excellent choice for professional electronic and electrical assemblies.
Explore complete categories and more RS PRO products at EnvMart for comprehensive solutions in switches and automation components.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This switch features a single-pole single-throw (SPST) contact configuration.
The required panel cutout size for this switch is 8 mm.
It uses PCB pin terminals for mounting.
This model can handle contact voltages of up to 30 V DC and 30 V AC.
The rated contact current for this switch is 100 mA.
The operating life of this model is rated at 50,000 cycles.
The actuator style of this switch is cap-style.
The total travel distance for this model is 1.2 ± 0.3 mm.
The operating force for this switch is 250 ± 100 gram-force.
This switch is suitable for applications such as test equipment, telecommunications systems, and handheld appliances.
The country of origin for this switch is India.
