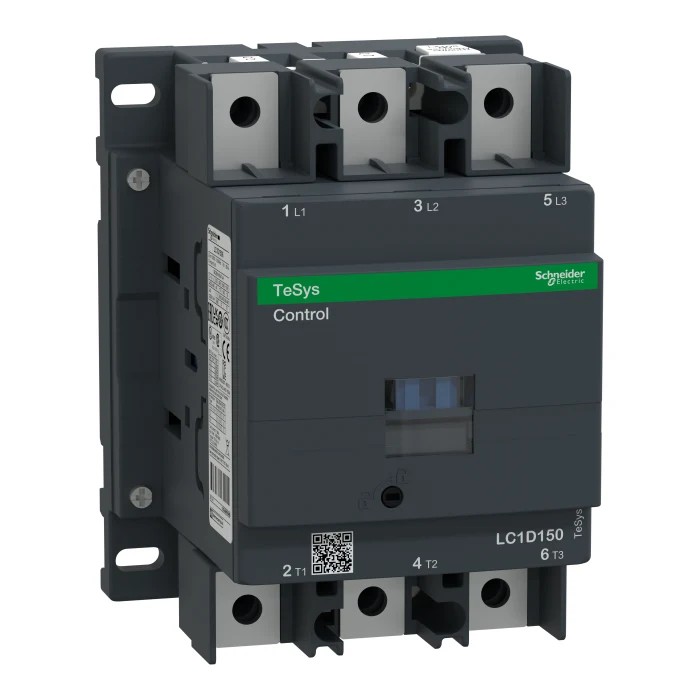

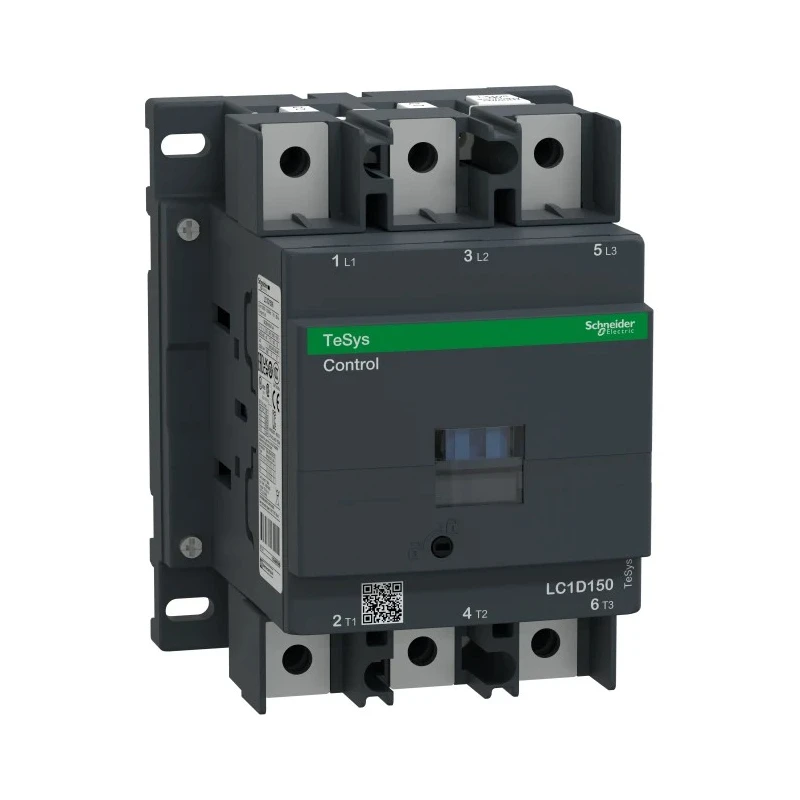

Schneider Electric LC1D Contactor, 48V AC Coil, 3-Pole, 150A, 100kW, 1kV AC Contacts LC1D1506E7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1506E7 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 100kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 150A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 150A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates efficiently with a coil voltage of 48V AC and contact voltage of 1kV AC.
- Designed for robust motor control and resistive load switching.
- Features 3 normally open (NO) contacts and 2 auxiliary contacts (1 NO, 1 NC).
- Compact DIN rail mount design with IP20 finger-safe screw terminals.
- Includes standards compliance with CSA and UL certifications.
- Operational temperature range from -5°C to 60°C supports varied environments.
- Measures 158mm length, 120mm width, and 136mm depth for space-efficient installation.
- Suitable for industrial use such as motor starters, pumps, compressors, and conveyors.
Product Description
Schneider Electric LC1D1506E7 Contactor is a premium 3-pole electrical contactor designed for motor control and resistive load applications. It features a 48V AC coil voltage and a high contact voltage rating of 1kV AC, ensuring reliable switching performance in demanding industrial environments.
This contactor supports a rated current of 150A and power rating of 100kW, suitable for robust motor control tasks. The device includes three normally open (3 NO) main contacts along with two auxiliary contacts configured as 1 NO and 1 NC, providing enhanced switching flexibility.
Manufactured with a DIN rail mount type for secure and convenient panel installation, it also features IP20 finger-safe screw terminals with international and North American markings for safety and ease of wiring. The operational temperature range from -5°C to 60°C makes it suitable for various industrial and commercial applications.
Installation dimensions are compact, with 158mm length, 120mm width, and 136mm depth, fitting well within control panels or system enclosures where space is a premium.
Designed for motor starters, pumps, compressors, lifts, escalators, conveyors, mixers, air conditioning units, and other industrial machinery, the LC1D1506E7 offers robust performance and is CSA and UL approved for quality assurance.
Additional features include built-in auxiliary contacts for expanded switching options and a bidirectional peak limiting diode suppressor that helps protect the coil against voltage spikes.
Operates with a coil voltage of 48V AC and maintains contact voltage up to 1kV AC. Supports 3-pole switching configuration and 150A contact current rating. Includes 2 auxiliary contacts (1 NO, 1 NC) for versatile control schemes.
DIN rail mountable with IP20 finger-safe terminals complying with international safety standards. Functional temperature range from -5°C to 60°C for reliable industrial operation. Dimensions: 158mm (L) x 120mm (W) x 136mm (D) for compact installation.
Meets CSA and UL standards ensuring compliance and operational safety. Ideal for motor control applications such as pumps, conveyors, compressors, and HVAC systems. Equipped with protective diode suppressors to enhance coil longevity and performance.
Facilitates easy installation and flexible accessory integration for tailored system setups. Explore EnvMart's wide range of Schneider Electric automation products for durable, efficient control solutions that meet rigorous industrial requirements.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 48V AC.
It supports a maximum contact voltage of 1kV AC.
This contactor has a rated current of 150A.
The dimensions are 158mm in length, 120mm in width, and 136mm in depth.
It features a 3-pole configuration.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The operational temperature range is from -5°C to 60°C.
It is designed for DIN rail mounting.
It is suitable for motor control and resistive load applications, including pumps, compressors, and conveyors.
It complies with CSA and UL standards.
It features IP20 finger-safe screw terminals with both North American and International markings.
The power rating is 100kW.
