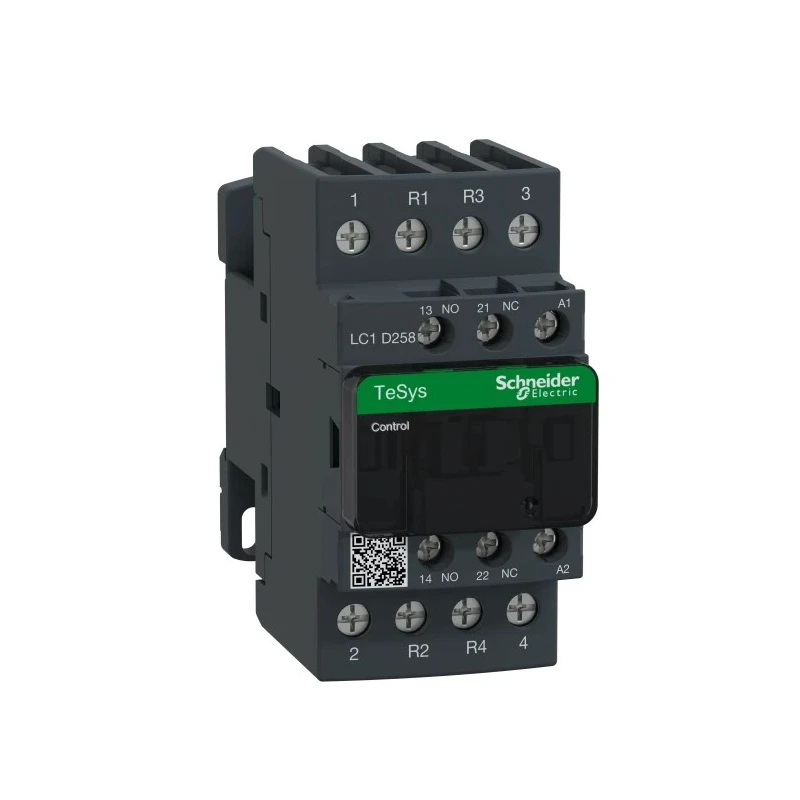

Schneider Electric Motor Control Contactor 36V AC Coil, 4-Pole, 40A, 5.5kW, 2 NO/2 NC, 690V AC/DC LC1D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 105mm |
| Model | LC1D |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | EN 60947-4-1 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 36V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 32V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 4-pole configuration supporting 40A contact current and 5.5kW power rating.
- Features 2 normally open and 2 normally closed contacts for versatile switching.
- Operates at contact voltage of 690V AC/DC, suitable for high voltage environments.
- Mountable on DIN rail with IP20 finger-safe screw terminals for secure and safe connections.
- Auxiliary contacts include 1 NO and 1 NC for additional control functions.
- Designed to withstand operational temperatures from -5°C to 60°C.
- Complies with EN 60947-4-1 standard ensuring high reliability and international compliance.
- Compact dimensions with length 105mm, width 45mm, and depth 99mm for space-efficient installation.
Product Description
Schneider Electric LC1D258C7 motor control contactor features a 36V AC coil voltage and four poles supporting a contact current of 40A and power rating of 5.5 kW at 32V control circuit voltage. This product is engineered for robust motor control and resistive load applications in diverse industrial environments.
Its 2 NO and 2 NC contacts, along with 1 NO/1 NC auxiliary contact configuration, provide flexible control capabilities. The contactor operates efficiently at a contact voltage of 690V AC/DC and supports operational temperatures ranging from -5°C to 60°C.
The product meets EN 60947-4-1 standards and offers reliable screw terminal IP20 finger-safe connections marked for North American and International standards. It can be easily mounted on panel screws or DIN rail, aiding fast and secure installation.
Common industry applications include motor starters for squirrel cage motors, elevators, escalators, conveyors, bucket elevators, compressors, pumps, mixers, and air conditioning units. Its design enhances long mechanical and electrical life, ensuring sustainable industrial performance.
Equipped with 4 poles supporting a 40A contact current for heavy-duty operations. Auxiliary contacts and flexible control circuit accommodate varied application requirements. Compact dimensions of 105 mm length, 45 mm width, and 99 mm depth fit most industrial panels.
IP20 finger-safe screw terminals for user safety and ease of wiring. Complies with international standards for quality and reliability.
Schneider Electric's TeSys LCD1 contactor range offers dependable motor control solutions widely used in automation, manufacturing, HVAC, and electrical distribution industries. This Better World product embraces sustainability with a design focused on disassembly and material reuse.
Explore the extensive category of Automation & Control Gear contactors at EnvMart for more industrial-grade control solutions.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 5.5 kW.
It supports a maximum contact current of 40A.
The coil voltage for this contactor is 36V AC.
The contact voltage rating is 690V AC/DC.
This unit features a 4-pole configuration.
The dimensions are 105mm in length, 45mm in width, and 99mm in depth.
It can be mounted on DIN rail.
It operates within a temperature range of -5°C to 60°C.
This model features IP20 finger-safe screw terminals.
It includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with the EN 60947-4-1 standard.
It is designed for motor control and resistive load applications, suitable for various industrial environments.
