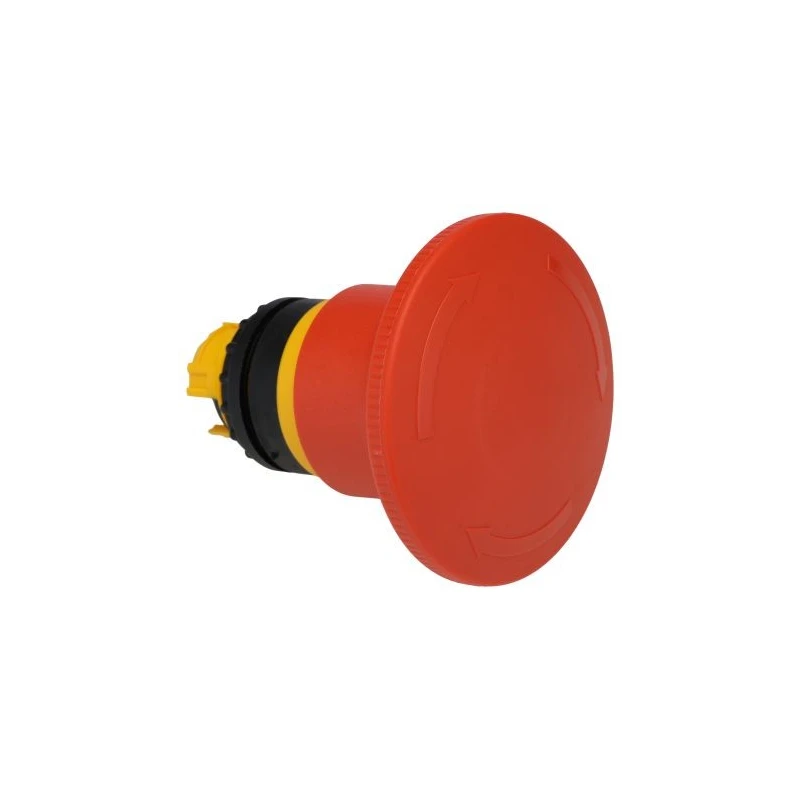

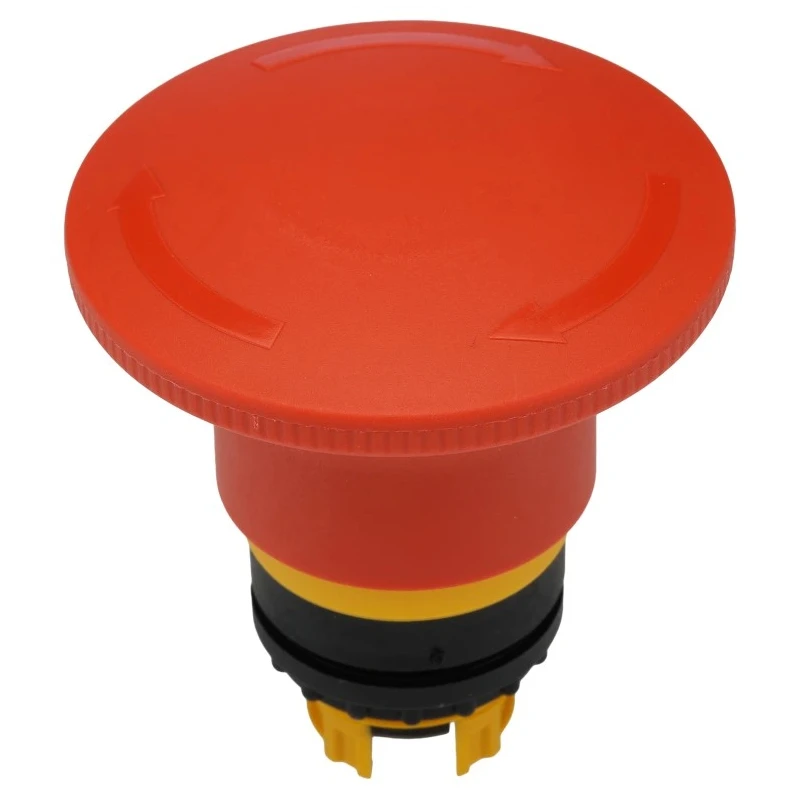

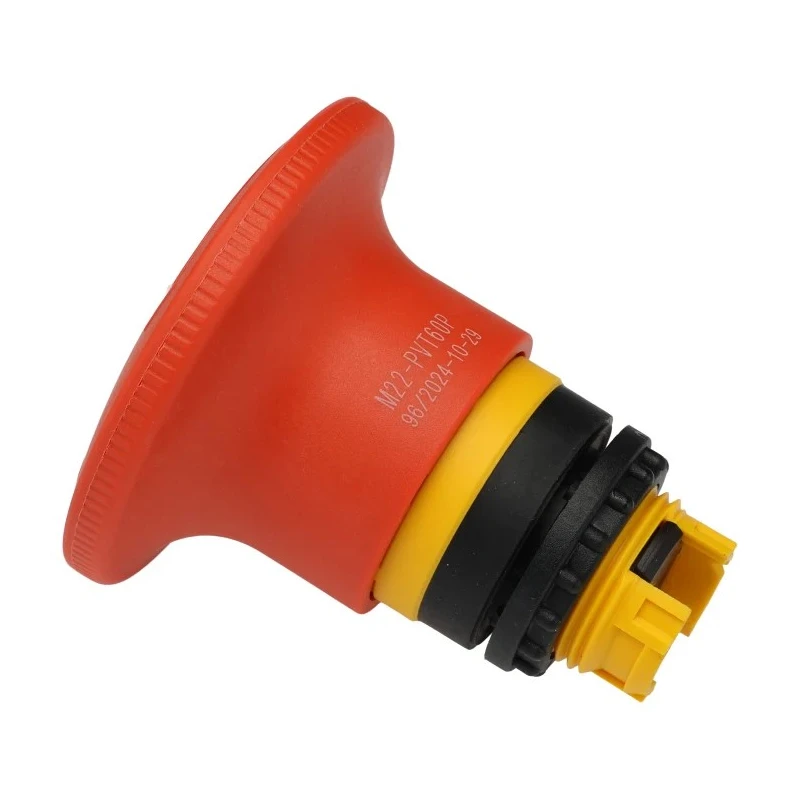

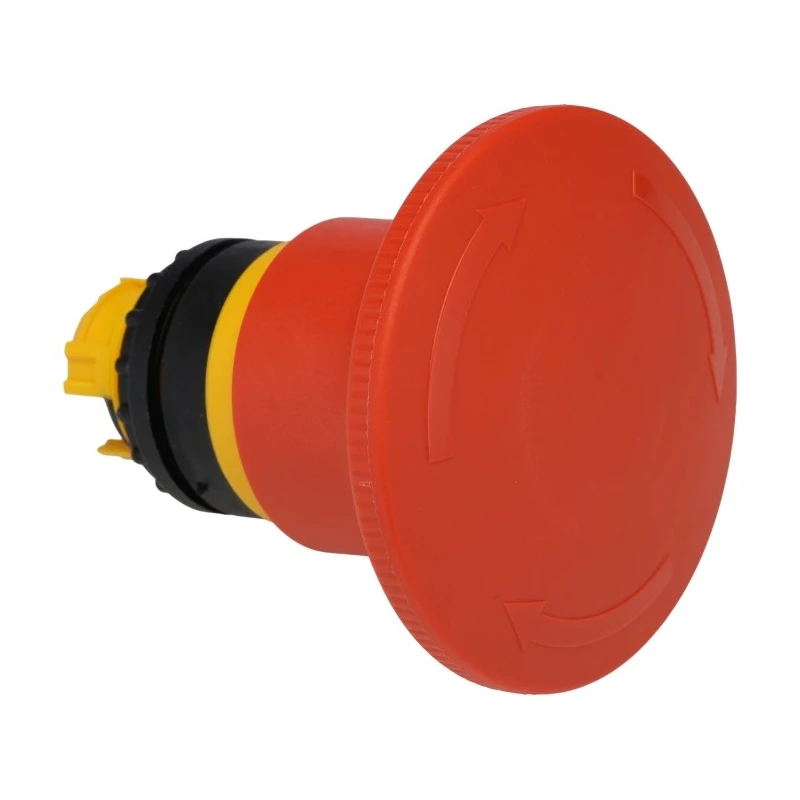

Eaton RMQ Titan M22 Series Latching Emergency Stop Push Button 22 mm Cutout 1 NO/1 NC IP67

Eaton 121464 M22-PVT60P RMQ Titan M22 Series Latching Emergency Stop Push Button features a 22 mm cutout diameter and 1 NO/1 NC contact configuration, providing reliable and fast machine stoppage for enhanced workplace safety.

This emergency stop push button utilizes a turn release mechanism and a mushroom head measuring 65 mm diameter, allowing operators to easily identify and activate the stop function during hazardous situations. The unit is rated IP67 for dust-tight and waterproof protection, capable of surviving immersion to depths of up to 1 meter, making it ideal for demanding industrial environments.

With a depth of 67 mm and width of 60 mm, it fits standard control panels and offers screw terminal connections for secure wiring. The red actuator requires a force of 50N for activation, providing tactile feedback ensuring deliberate engagement. This push button switch can perform up to 100,000 rated lifespan operations and sustain 600 operations per hour, demonstrating robustness for high usage scenarios.

The housing and push button materials are made of durable plastic, ensuring longevity while maintaining electrical insulation. It complies with international safety standards including CSA-C22.2 No. 14-10, UL 508, IEC/EN 60947-5, and ANSI/NFPA 79, ensuring it meets rigorous industrial safety requirements.

Common applications include machinery safety stop functions, emergency cutout controls in manufacturing plants, escalator safety controls, and automation systems that demand quick response to hazardous conditions. This product brings safety compliance and operational reliability to a broad range of industrial and commercial use cases.

The push button offers latching actuation for safety hold until manual reset. Red color enhances visibility in emergency situations. IP67 rating guarantees operation in dusty and wet environments. Turn release design ensures intentional reset after activation.

High durability with 100,000 operation lifespan rated. Support for 1 normally open and 1 normally closed contact configuration provides dual circuit options.

Set includes 1 Eaton RMQ Titan M22 Latching Emergency Stop Push Button unit, model 121464 M22-PVT60P, made in Germany and ready for integration into safety control panels. This product supports industrial, manufacturing, and commercial safety system implementations requiring robust emergency stop controls.

Explore more industrial safety equipment and Eaton brand products at EnvMart for comprehensive control solutions.
