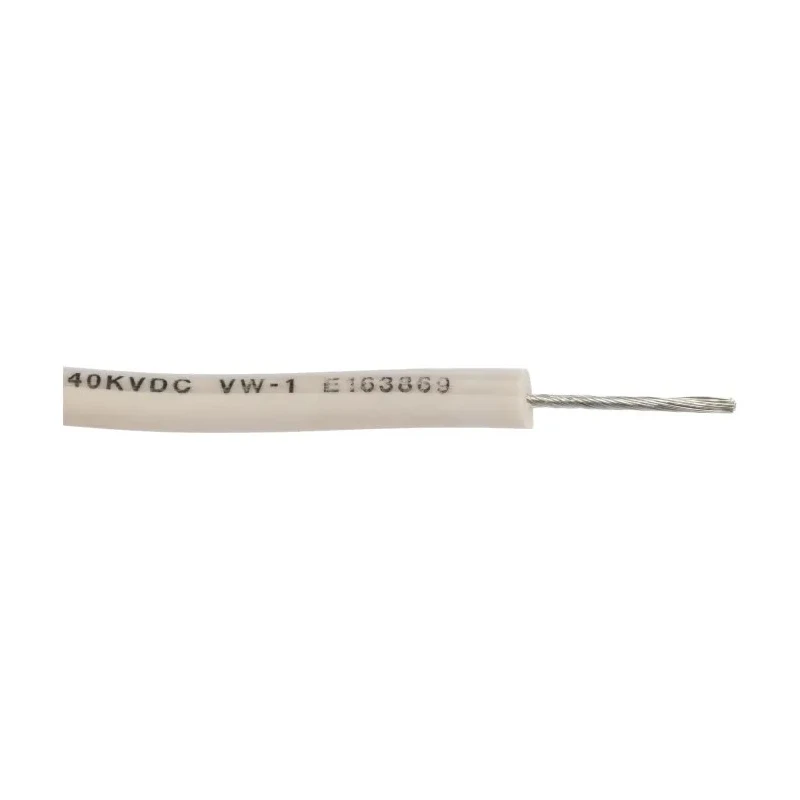

Alpha Wire High Temperature Silicone Hook Up Wire 1.3 mm² Cross Section, 16 AWG, 26/0.25 mm Strands, 30 m 391697 WH005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40000V dc |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 1.3mm² |
| Model | 391697 WH005 |
| Cable Length | 30m |
| Series | Hookup Wire Silicone |
| Outside diameter | 6.45mm |
| Maximum Operating Temperature | 150°C |
| Conductor Material | Copper |
| Sub Type | UL3239 |
| Cable Type | Hookup |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Silicone Rubber |
| Standards/Approvals | UL Listed |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 741-7884Brand: Alpha WireManufacturers Part No.: 391697 WH005 |
| Jacket Colour | White |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 16AWG |
| Number of Strands | 26 |
| Core Strands | 26 x 0.25mm |
| Size of Strands | 0.25mm |
Key Features
- The wire features a 1.3 mm² cross-sectional area for robust current carrying capacity.
- Constructed with 26 strands of 0.25 mm diameter tinned copper for enhanced conductivity and corrosion resistance.
- Equipped with a white silicone rubber jacket that is flame retardant and resistant to oils, solvents, and chemicals.
- Rated for a maximum operating voltage of 40,000 V DC and temperature range from -40°C to 150°C.
- Supplied in a 30-meter reel suitable for wiring in automation, automotive, and industrial machinery.
Product Description
Alpha Wire 391697 WH005 is a premium silicone series hook up wire designed for high temperature environments requiring superior flexibility and durability. It has a 1.3 mm² cross-sectional copper conductor with 26 strands of 0.25 mm diameter, plated with tin to improve corrosion resistance and conductivity. The insulation is made of flame retardant silicone rubber, providing resilience against oil, solvents, and various chemicals, ensuring longevity in harsh industrial settings.
This hook up wire supports a wide temperature range from -40°C up to 150°C, enabling reliable operation even in extreme thermal conditions. Its 16 AWG (American Wire Gauge) size is suitable for various electrical and automation system wiring applications where insulation performance and compliance are critical.
The wire is UL3239 compliant and UL listed, confirming adherence to important safety and performance standards. It carries a maximum voltage rating of 40,000 V DC, making it appropriate for high voltage electrical projects, industrial machinery, automotive wiring, and electrical appliances.
Applications include use in automation systems, industrial equipment wiring, automotive electrical harnesses, and consumer electronics where chemical exposure and temperature extremes are expected. The white-colored silicone jacket also aids in easy identification and wiring organization.
High temperature tolerance up to 150°C and minimum operating temperature of -40°C. Flame retardant silicone rubber jacket offers excellent flexibility and chemical resistance. UL listed and UL3239 standard compliant for safety assurance.
Tinned copper conductor strands enhance durability and conductivity. Suitable for high voltage applications up to 40,000 V DC.
This product is offered in a 30-meter length reel, ideal for laboratory, industrial, automotive, and commercial electrical wiring installations. Alpha Wire’s 391697 WH005 ensures reliable performance, safety, and compliance in demanding environments.
Explore more Hook Up Wires and related cables in the Electronics & Electricals category on EnvMart to find fittings and compatible products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 150°C.
It has a maximum voltage rating of 40,000 V DC.
The wire features a cross-sectional area of 1.3 mm².
The conductor consists of 26 strands of 0.25 mm diameter tinned copper.
This hook up wire is supplied in a 30-meter reel.
It is insulated with a flame retardant silicone rubber jacket.
Yes, it is UL listed and complies with the UL3239 standard.
The minimum operating temperature is -40°C.
The outside diameter of this model is 6.45 mm.
The wire is manufactured in India.
It is suitable for wiring in automation systems, industrial equipment, automotive electrical harnesses, and consumer electronics.
This wire is rated at 16 AWG (American Wire Gauge).
