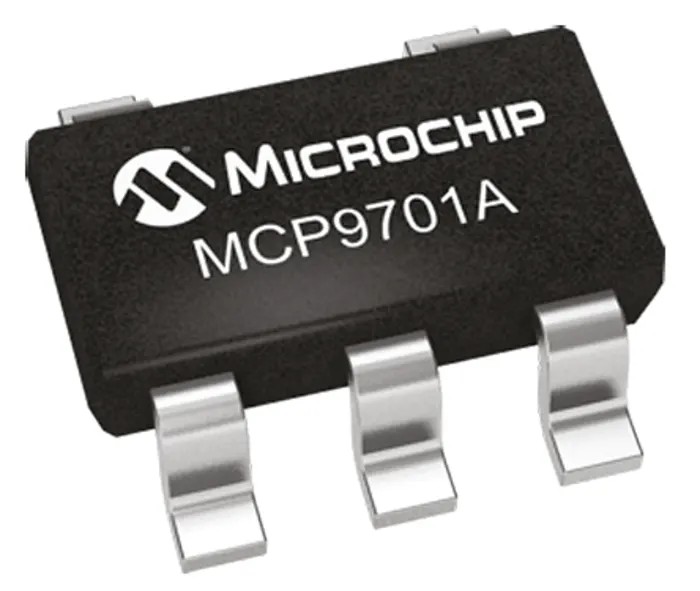

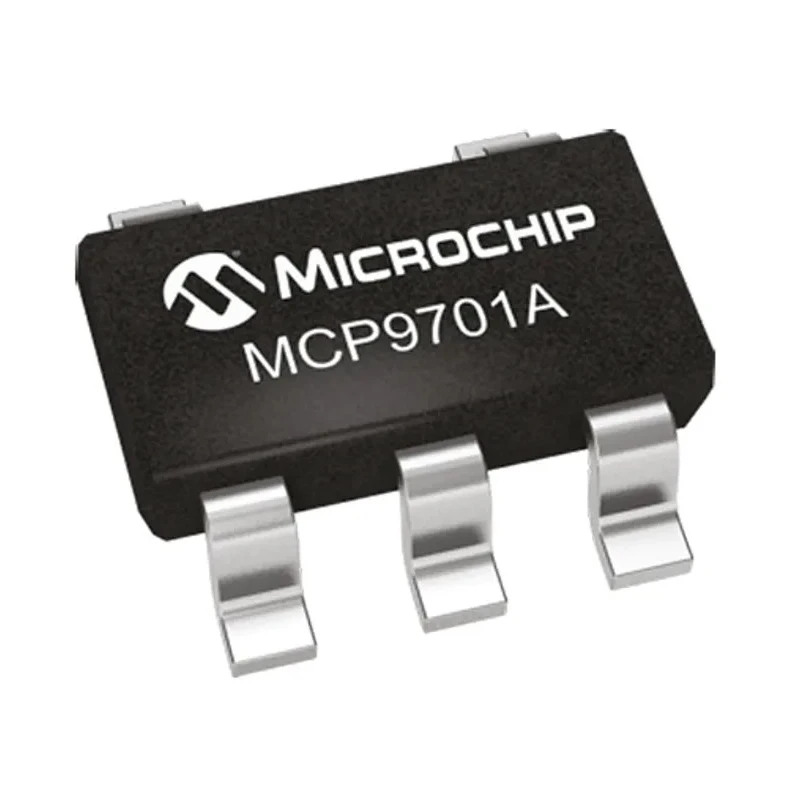

Microchip MCP9701AT Series Voltage Output Temperature Sensor, Analogue, Surface Mount, ±1°C Accuracy, 5-Pin SC-70 MCP9701AT
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±1°C |
| Brand | Microchip |
| Height | 1mm |
| Length | 2.2mm |
| Model | MCP9701AT |
| Width | 1.35mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9701AT |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -10°C |
| Interface Type | Analogue |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-7054PBrand: MicrochipManufacturers Part No.: MCP9701AT-E/LT |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.1V |
| Sensor Gain | 19.5mV/°C |
Key Features
- Offers ±1°C accuracy for reliable temperature sensing.
- Operates over a temperature range of -10°C to 125°C.
- Features a sensor gain of 19.5mV/°C for sensitive voltage output.
- Compatible with supply voltages from 3.1V to 5.5V.
- Compact surface mount design with 5-pin SC-70 package and dimensions 2.2mm x 1.35mm x 1mm.
- Resistant to parasitic capacitance and capable of driving large capacitive loads.
- Useful for applications such as temperature monitoring, office equipment, home appliances, entertainment systems, and battery packs.
- Manufactured in Thailand ensuring quality production standards.
Product Description
Microchip MCP9701AT is a voltage output temperature sensor known for its accurate temperature measurement with ±1°C accuracy. This analogue sensor is designed for surface mount applications in a compact, 5-pin SC-70 package measuring 2.2mm in length, 1.35mm in width, and 1mm in height. It operates reliably within a temperature range of -10°C to 125°C and requires supply voltages between 3.1V and 5.5V.
The MCP9701AT series is engineered to resist parasitic capacitance and is capable of driving large capacitive loads, making it suitable for various industrial and consumer electronics applications including temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery packs.
Its sensor gain of 19.5mV/°C provides sensitive voltage output relative to temperature changes, enhancing precision in measurement tasks. Provides precise temperature measurement with ±1°C accuracy. Wide operating temperature range from -10°C to 125°C.
Compact 5-pin SC-70 surface mount package for easy PCB integration. Operates at supply voltages between 3.1V and 5.5V. Designed to withstand parasitic capacitance and drive capacitive loads. Applicable in monitoring temperature for electronics, appliances, and battery systems.
Manufactured in Thailand with strict quality assurance.
This Temperature Sensor IC is ideal for use in industrial, consumer electronics, HVAC, and automotive applications requiring accurate and reliable temperature sensing. Explore more Microchip sensor IC solutions and components at EnvMart for precise and durable electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9701AT temperature sensor offers an accuracy of ±1°C, ensuring reliable temperature measurements.
This model operates over a temperature range of -10°C to 125°C, making it suitable for various applications.
The sensor gain of the MCP9701AT is 19.5mV/°C, allowing for sensitive voltage output relative to temperature changes.
The MCP9701AT requires supply voltages between 3.1V and 5.5V for proper operation.
This model has a compact size with dimensions of 2.2mm in length, 1.35mm in width, and 1mm in height.
The MCP9701AT provides a voltage output, which is typical for analogue temperature sensors.
The MCP9701AT features a 5-pin configuration, suitable for surface mount applications.
This temperature sensor is housed in a 5-pin SC-70 package, designed for easy integration onto PCBs.
Yes, the MCP9701AT is designed to resist parasitic capacitance and is capable of driving large capacitive loads.
The MCP9701AT is manufactured in Thailand, adhering to strict quality production standards.
This model is useful for applications such as temperature monitoring in office equipment, home appliances, entertainment systems, and battery packs.
The MCP9701AT utilizes an analogue interface type for its output.
