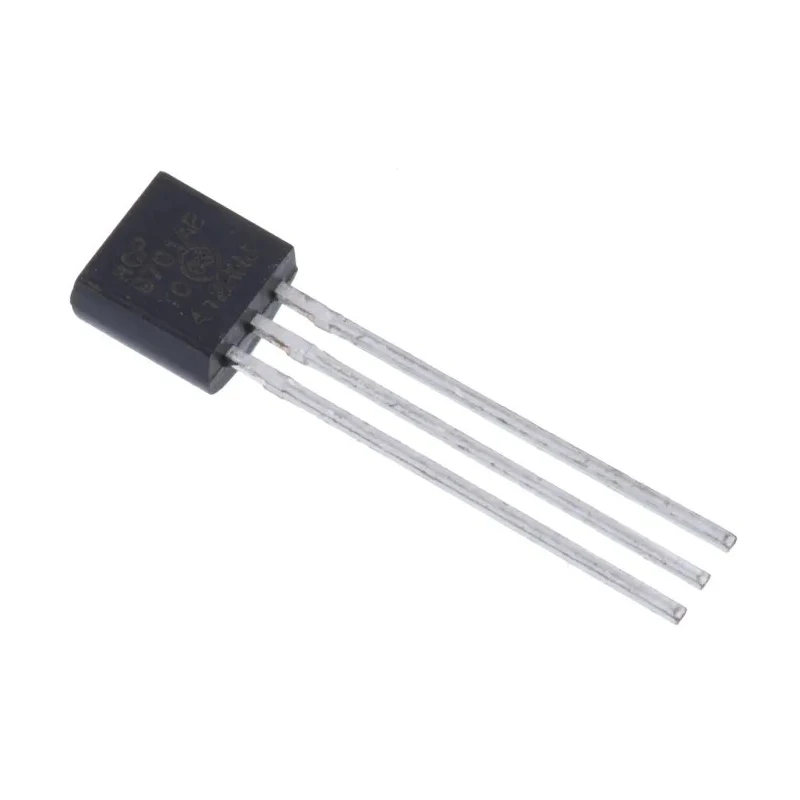

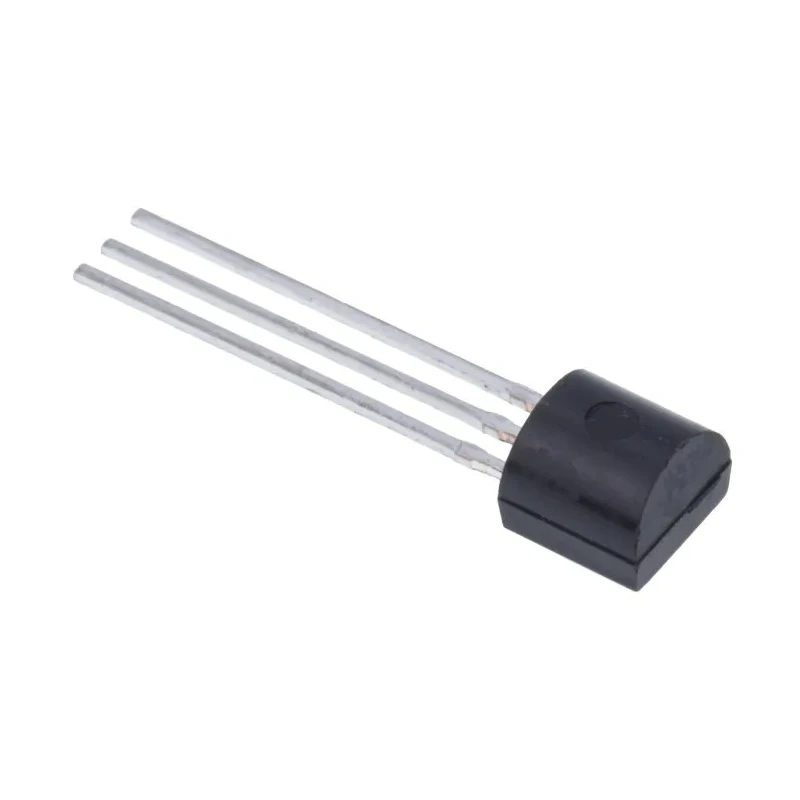

Microchip Series Voltage Output Voltage Temperature Sensor, Through Hole Mount, Analogue, ±1°C Accuracy, 3-Pin TO-92 MCP9701
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1°C |
| Brand | Microchip |
| Height | 5.33mm |
| Length | 5.21mm |
| Model | MCP9701 |
| Width | 107.95mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | MCP9701 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -10°C |
| Interface Type | Analogue |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-7051PBrand: MicrochipManufacturers Part No.: MCP9701A-E/TO |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.1V |
| Sensor Gain | 19.5mV/°C |
Key Features
- Provides analogue voltage output proportional to temperature.
- Operates within temperature range of -10°C to 125°C.
- Compatible with supply voltages from 3.1V to 5.5V.
- Features a compact TO-92 package with 3 pins for easy through-hole installation.
- Exhibits a sensor gain of 19.5mV/°C for sensitive temperature measurement.
- Designed to resist parasitic capacitance and drive large capacitive loads.
- Ideal for temperature monitoring in office equipment and home appliances.
- Suitable for use in entertainment systems, hard disk drives, and battery pack applications.
Product Description
Microchip MCP9701 Series Voltage Output Voltage Temperature Sensor MCP9701 provides accurate analogue temperature sensing with ±1°C accuracy. Featuring a 3-pin TO-92 through-hole mount package, this temperature sensor operates within a supply voltage range of 3.1V to 5.5V and an operating temperature range from -10°C to 125°C. It offers a sensor gain of 19.5mV/°C, converting temperature changes to corresponding analogue voltage outputs.
This series of thermistor ICs is resistant to parasitic capacitance effects and can drive substantial capacitive loads, ensuring stable and reliable performance in diverse industrial and consumer applications.
Applications span from temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, to battery packs. Its small footprint, with dimensions approximately 5.21mm length, 5.33mm height, and a narrow 3-pin configuration, enables easy integration on printed circuit boards using through-hole mounting technology.
Designed without specific automotive standards compliance, the MCP9701 focuses on general electronic component temperature sensing with analog interface ease. Its robust design suits industrial, laboratory, manufacturing, and consumer electronic device scenarios.
Provides analogue voltage output proportional to temperature. Operates within temperature range of -10°C to 125°C. Compatible with supply voltages from 3.1V to 5.5V. Features a compact TO-92 package with 3 pins for easy through-hole installation.
Exhibits a sensor gain of 19.5mV/°C for sensitive temperature measurement. Designed to resist parasitic capacitance and drive large capacitive loads. Ideal for temperature monitoring in office equipment and home appliances.
Suitable for use in entertainment systems, hard disk drives, and battery pack applications.
This Microchip MCP9701 temperature sensor series supports diverse environmental monitoring applications and enhances precise thermal management solutions. Explore the Temperature Sensor category at EnvMart for complementary components and temperature sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -10°C to 125°C.
The MCP9701 provides an accuracy of ±1°C.
It is compatible with supply voltages ranging from 3.1V to 5.5V.
This unit provides an analogue voltage output that is proportional to the temperature.
The sensor gain for this model is 19.5mV/°C, allowing for sensitive temperature measurements.
The MCP9701 has dimensions of approximately 5.21mm in length and 5.33mm in height.
This temperature sensor features a through-hole mount design, making it easy to install.
The MCP9701 comes in a TO-92 package type.
It is suitable for temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery packs.
This model features a 3-pin configuration.
The maximum operating temperature for this sensor is 125°C.
The minimum operating temperature for this model is -10°C.
