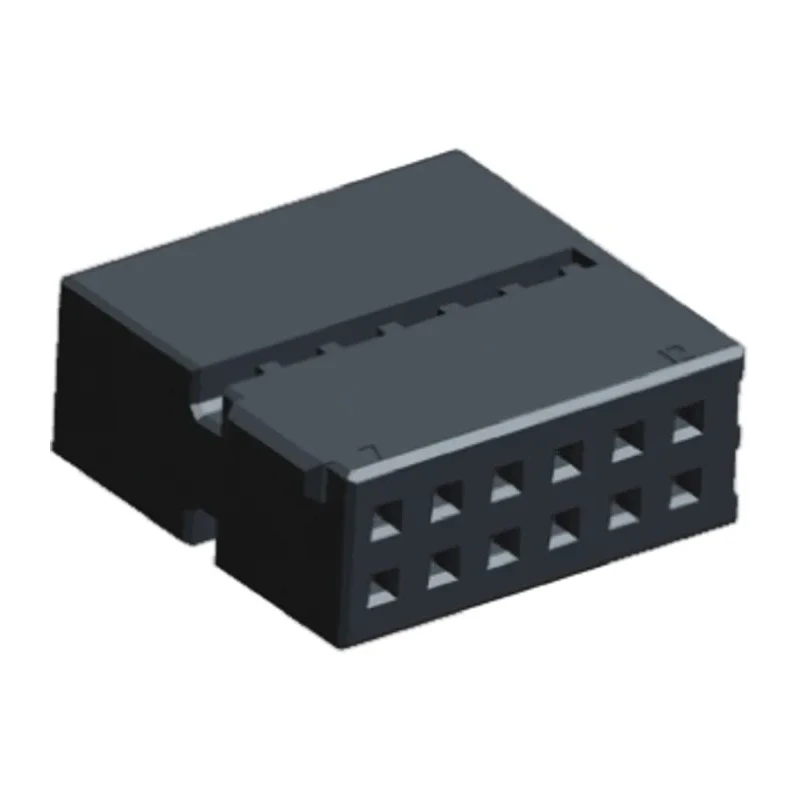

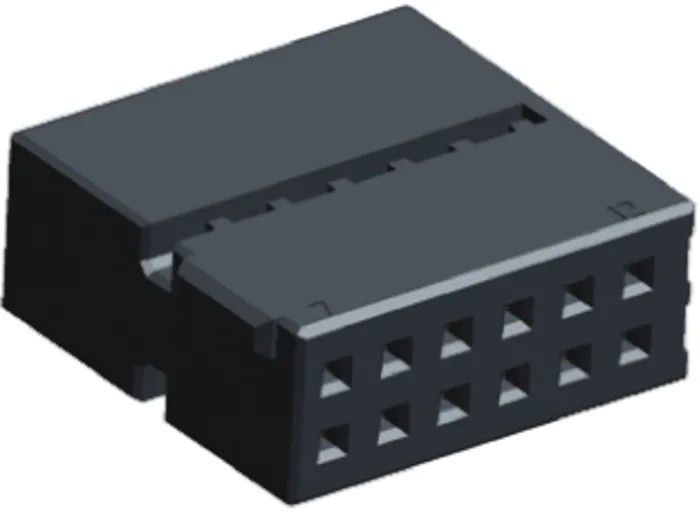

TE Connectivity Micro Quadlok System Automotive Connector Female Black Cable 12 Way Crimp Termination 1534100-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 7.5A |
| Height | 6.8mm |
| Depth | 16.2mm |
| Width | 16.6mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 731-3227P Brand: [TE Connectivity](https://in.rsdelivers.com/brands/te-connectivity)Manufacturers Part No.: 1534100-1 |
| Number of Contacts | 12 |
Key Features
- The connector features a 2.54 mm pitch for high density and compact design.
- It includes polarization and keying to prevent mismating during installation.
- The housing material is Polybutylene Terephthalate ensuring durability.
- It supports operational temperatures ranging from -40°C to 80°C.
- Current rating of this connector is 7.5A, suitable for automotive electrical systems.
- The connector housing has integral primary terminal locking for secure connection.
- This female connector supports crimp type termination on cable mount.
- The compact size with dimensions Height 6.8mm, Width 16.6mm, Depth 16.2mm suits multiple automotive powertrain and safety system applications.
Product Description
TE Connectivity 1534100-1 Micro Quadlok System Automotive Connector Female is a black cable mount connector housing with 12 positions and crimp termination for automotive electrical applications. It is manufactured with durable Polybutylene Terephthalate material to withstand harsh operating conditions.
This connector is part of the Micro Quadlok System (MQS) series, offering high density with a 2.54 mm pitch. Its compact and robust design ensures reliability in powertrain, safety, security, body, chassis, and driver information systems in vehicles.
The design incorporates integral primary terminal locking with stainless steel locking lances to firmly secure the contacts within the housing, preventing disconnection. Polarization and keying features prevent mismating, contributing to installation reliability.
Operating temperature range from -40°C to 80°C allows usage in various environmental conditions. The series includes sealed versions for waterproof protection, although this connector is non-sealed. Additional wire seals and accessories like covers and retainers are available separately.
These connectors support current ratings up to 7.5A, suitable for general automotive electrical connections. The female gender crimp termination type makes it compatible with cable harness assemblies requiring secure and reliable connections.
The connector features a 2.54 mm pitch for high density and compact design. Polarization and keying prevent mismating and installation errors. Manufactured using Polybutylene Terephthalate for durability. Operational temperature range from -40°C to 80°C for automotive applications.
Rated for currents up to 7.5A supporting vehicle electrical systems. Integral primary terminal locking with stainless steel lances for secure contacts. Female cable mount connector with crimp termination. Compact dimensions (6.8mm height, 16.6mm width, 16.2mm depth) optimize space in assemblies.
Suitable for powertrain, safety, and convenience automotive applications. Accessories such as wire seals, covers, and retainers available separately.
This connector is ideal for manufacturing, automotive electrical harness production, and repair workshops requiring reliable high-density connectors. Browse EnvMart for additional TE Connectivity automotive electrical connectors and related components.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 7.5A, making it suitable for automotive electrical systems.
It operates within a temperature range of -40°C to 80°C, allowing for use in various environmental conditions.
This connector features a pitch size of 2.54 mm, designed for high density and compact applications.
The housing is made from Polybutylene Terephthalate, which provides durability for automotive applications.
This model has 12 positions, allowing for multiple connections in automotive applications.
It utilizes crimp termination, suitable for cable mount applications.
The dimensions are 6.8 mm in height, 16.6 mm in width, and 16.2 mm in depth.
Yes, it includes polarization and keying features to prevent mismating during installation.
It is suitable for powertrain, safety, security, body, chassis, and driver information systems in vehicles.
It has integral primary terminal locking with stainless steel locking lances to secure the contacts within the housing.
The connector is manufactured in India.
