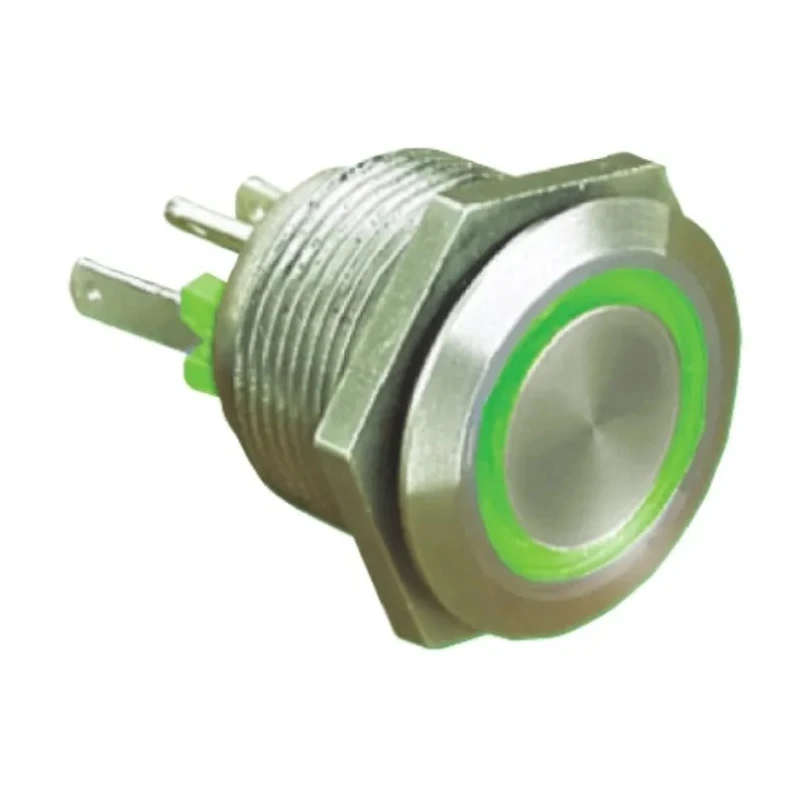

Bulgin MPI002 Series Illuminated Momentary Push Button Switch Panel Mount 19.2 mm Cutout SPST Green LED IP66 MPI002

Bulgin MPI002 series illuminated momentary push button switch is built for robustness and panel mounting with a 19.2 mm cutout. The switch operates with a SPST contact configuration and features a green LED illumination for visual indication in control panels, machinery, and automation systems. Its stainless steel actuator offers vandal resistance, enhancing durability in industrial and commercial environments. The product is sealed to IP66 at the front of the panel, providing outstanding protection against dust and water ingress.

Designed for reliable operation across a temperature range of -30°C to 70°C, the switch offers solder terminal type for solid electrical connection. It also includes internal TVS protection to protect against voltage transients, making it suitable for demanding electrical applications. The LED illumination includes integral supply resistors for 6V, 12V, and 24V configurations, ensuring compatibility with different supply voltages, though the user must connect an appropriate resistor if the illumination voltage is not specified.

The compact dimensions, approximately 31 mm length for screw terminals and 32.7 mm for 2.8 mm tab terminals, fit effectively into a range of panel applications. Manufactured to RoHS standards, it ensures environmental safety compliance. The switch is ideal for electrical control panels, industrial automation, manufacturing equipment, and any installation requiring robust, illuminated momentary push button switching with reliable sealing and indication.

Constructed with stainless steel actuator providing vandal resistance and long life. Momentary switch with SPST contact configuration for simple on/off control. Green LED illumination offers clear functional status feedback.

Panel mounting with 19.2 mm cutout ensures easy installation. Sealed IP66 front panel rating protects against dust and water ingress. Wide temperature operation range from -30°C to 70°C accommodates various environments.

Solder terminal type facilitates secure and reliable connections. Integral LED resistor available for standard voltage variants (6V, 12V, 24V). Internal TVS protection enhances resistance to electrical surges. Compact size enables integration into tight panel spaces.

RoHS compliant for environmental and safety standards adherence.

Choose the Bulgin MPI002 series switch for dependable, illuminated push button control in industrial and automation systems. Discover more electrical switches and panel components from Bulgin and trusted brands on EnvMart.
