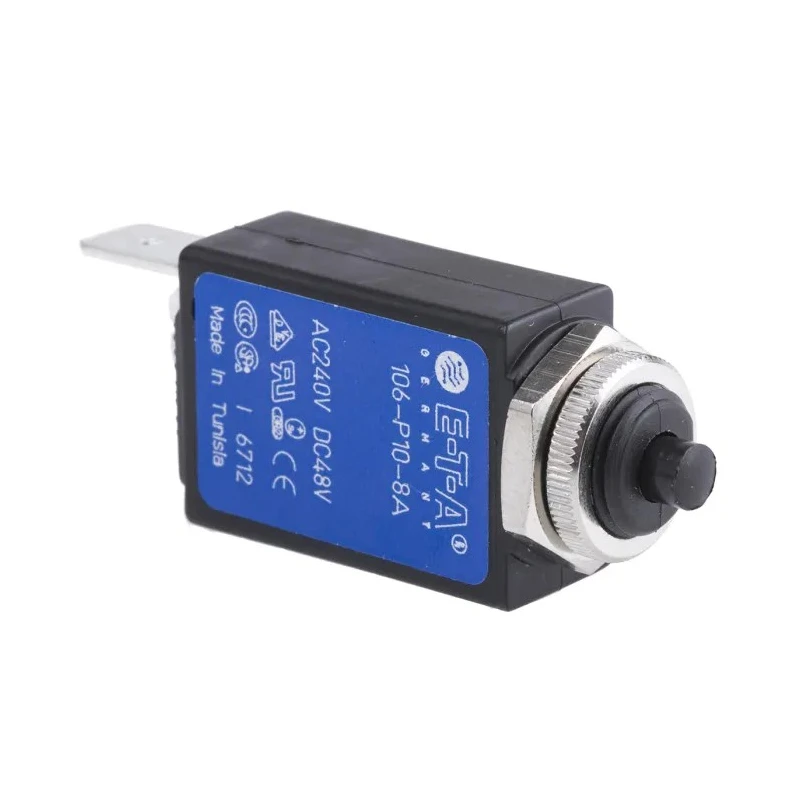

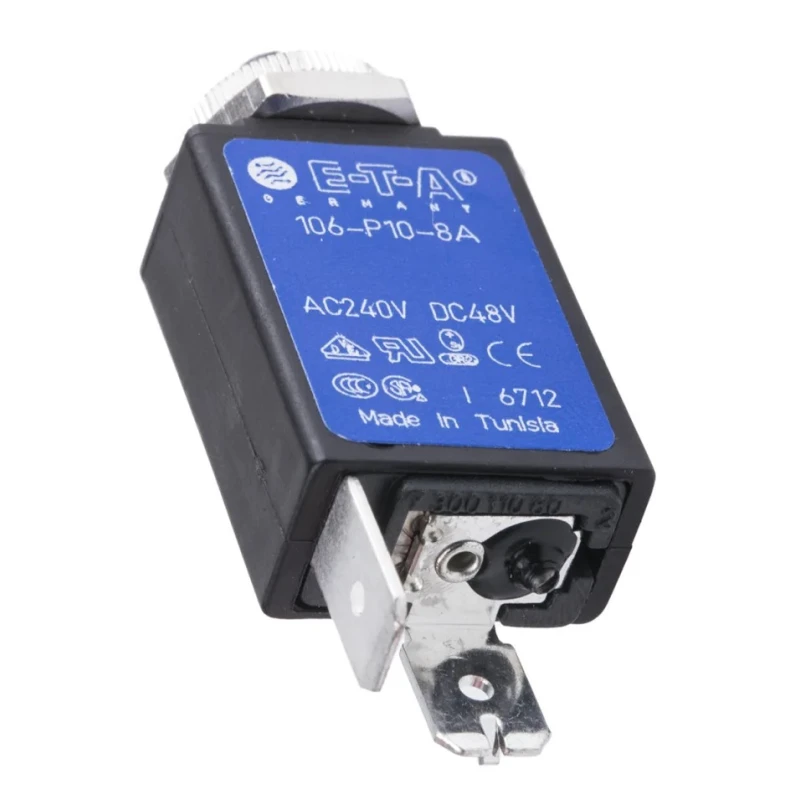

ETA Thermal Circuit Breaker 8A Current Rating 1-Pole Panel Mount 106-P10-000040-8A
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | ETA |
| Height | 44.1mm |
| Model | 106-P10-000040-8A |
| Depth | 27.6mm |
| Width | 11mm |
| Mount Type | Panel Mount |
| Current Rating | 8A |
| Series | 106 |
| Terminal type | Blade |
| Breaking Capacity | 25A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 728-8651Brand: ETAManufacturers Part No.: 106-P10-000040-8A |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type R |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Button |
| Mount Hole Size | 8.9 mm |
| Break Time | Medium |
Key Features
- Miniaturised single pole thermal circuit breaker with push-to-reset action.
- Trip-free snap action design ensures reliable and safe operation.
- Panel mount with single hole threadneck, hex, and knurled nut.
- Blade terminals provide secure electrical connection.
- Approved to CBE standard EN 60934 (IEC 60934).
- Wide application range including motors, transformers, and marine equipment.
- Type R tripping characteristics with medium break time.
- Breaking capacity of 25A.
Product Description
ETA 106-P10-000040-8A Thermal Circuit Breaker is a miniaturised single-pole thermal circuit breaker designed for efficient and reliable overcurrent protection. Featuring an 8A current rating and Type R tripping characteristics, this device is ideal for use in electrical systems requiring thermal tripping mechanisms.
The breaker uses a trip-free snap action mechanism coupled with a convenient push-to-reset button actuator, enabling quick and safe reset after a trip event. It is designed for panel mounting with single hole threadneck mounting and includes a hex and knurled nut, ensuring secure and sturdy installation.
Blade terminals facilitate simple and reliable electrical connections. The breaker complies with the CBE standard EN 60934 (IEC 60934) and carries CE and RoHS certifications, providing assurance of quality and environmental compliance.
Typical industrial and commercial applications include protection for motors, transformers, solenoids, printed circuit boards, hand-held machines, various appliances, and marine equipment, where thermal protection is crucial.
Rated for 240V AC and 48V DC operation, with a breaking capacity of 25A, this thermal circuit breaker can handle moderate fault currents safely. Its compact size (44.1mm height, 27.6mm depth, 11mm width) makes it suitable for installation in tight panel spaces.
Miniaturised single pole thermal circuit breaker with push-to-reset action. Trip-free snap action design ensures reliable and safe operation. Panel mount with single hole threadneck, hex, and knurled nut. Blade terminals provide secure electrical connection.
Approved to CBE standard EN 60934 (IEC 60934). Wide application range including motors, transformers, and marine equipment. Type R tripping characteristics with medium break time. Rated voltage: 240V AC, 48V DC. Breaking capacity of 25A.
Compact dimensions: 44.1mm H × 27.6mm D × 11mm W.
This product is manufactured in Tunisia and supplied new, making it a reliable choice for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial electrical protection needs.
Explore more Thermal Circuit Breaker products and related electrical components on EnvMart for efficient and safe electrical system protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 8A.
The breaking capacity of this model is 25A.
It is rated for 240V AC and 48V DC operation.
This model is designed for panel mounting with a single hole threadneck.
The dimensions are 44.1mm in height, 27.6mm in depth, and 11mm in width.
It features blade terminals for secure electrical connections.
It has Type R tripping characteristics with medium break time.
Yes, it is approved to CBE standard EN 60934 (IEC 60934) and carries CE and RoHS certifications.
It features a push-to-reset button actuator for easy resetting after a trip event.
It is suitable for a wide range of applications including motors, transformers, and marine equipment.
This thermal circuit breaker is manufactured in Tunisia.
The tripping mechanism used is thermal, designed for reliable overcurrent protection.
