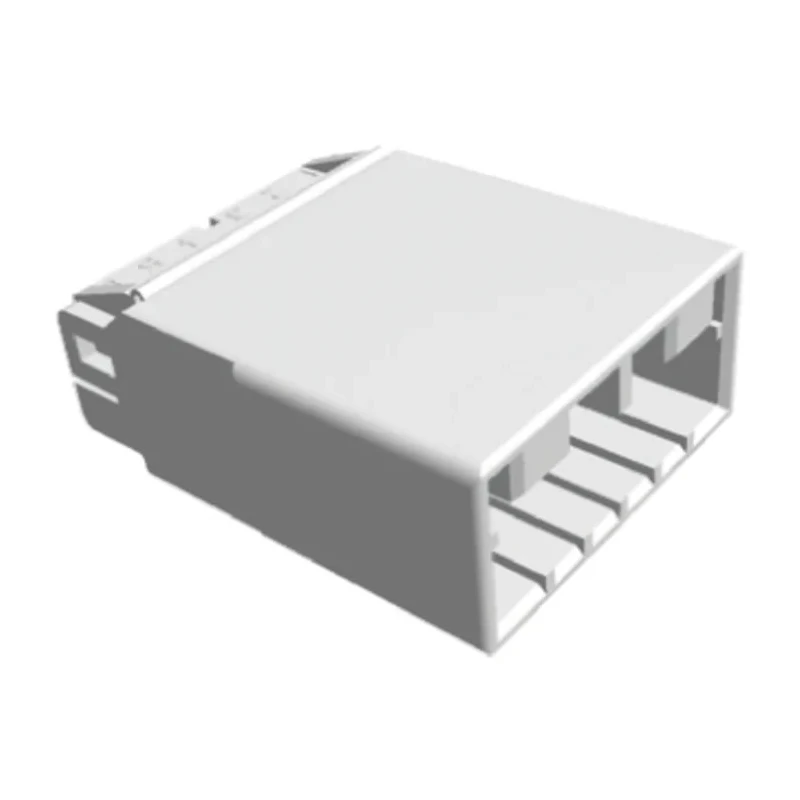

TE Connectivity MULTILOCK 070 Female Connector Housing 6 Way 1 Row Straight 3.5mm Pitch 1-174930-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 24.8mm |
| Width | 24.8mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 070 |
| Interfaces | lance design |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-1225PBrand: TE ConnectivityManufacturers Part No.: 1-174930-1 |
| Number of Contacts | 6 |
| Connector Gender | Female |
Key Features
- Compact and durable housing design ensures reliable connection retention.
- High density 3.5 mm pitch suitable for space-saving wiring solutions.
- Integral double lock mechanism provides secure contact retention.
- Housing material made of Polybutylene Terephthalate for durability and insulation.
- Designed for use in automotive wire-to-wire and wire-to-board connections.
- Protects contacts from damage due to rocking actions during mating and unmating.
- Supports female crimp contacts; contacts must be ordered separately.
- Straight orientation and cable mount type for easy integration.
Product Description
TE Connectivity 1-174930-1 MULTILOCK 070 Female Connector Housing is a 6-way, single-row connector with a 3.5 mm pitch, ideal for automotive and electronic connection systems. This Connector Housing is crafted from Polybutylene Terephthalate, providing robust durability and excellent insulation. It features a compact design with an integral double locking system ensuring secure retention of female crimp contacts used in wire-to-wire and wire-to-board interfaces.
The MULTILOCK 070 series is renowned for its protection of contacts against damage caused by the KOJIRI action, common during the mating and unmating stages. The housing enables use of lance-less contacts, preventing deformation and tangling issues. The connector's straight orientation and cable mount type facilitate straightforward assembly in automotive safety, convenience, and powertrain applications.
With a length and width of 24.8 mm, this connector maintains a compact footprint, suitable for use where space constraints exist. The secure locking mechanism and durable housing enhance the reliability needed in demanding environments.
Compact and durable design for automotive use. High density 3.5 mm pitch with 6 contacts in a single row. Polybutylene Terephthalate housing material for strength and insulation. Integral double lock mechanism for secure contact retention.
Protection against contact damage from KOJIRI action. Supports female crimp contacts; must be ordered separately. Straight orientation and cable mount type for easy installation. Length and width of 24.8 mm for compact application areas.
This connector is well-suited for industrial, automotive, and electronics manufacturing applications requiring robust and reliable wire housings. Discover more connectors and components to support your next project on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity MULTILOCK 070 Female Connector Housing is 3.5 mm.
This model supports 6 female crimp contacts.
The housing is made of Polybutylene Terephthalate, which provides durability and insulation.
The length and width of this connector housing are both 24.8 mm.
It utilizes a cable mount type for easy integration.
The connector housing has a straight orientation.
This connector belongs to the MULTILOCK 070 series.
It features an integral double lock mechanism for secure contact retention.
Yes, it is designed for use in automotive wire-to-wire and wire-to-board connections.
It supports female crimp contacts, which must be ordered separately.
It protects contacts from damage due to KOJIRI action during mating and unmating.
The country of origin for this connector housing is India.
