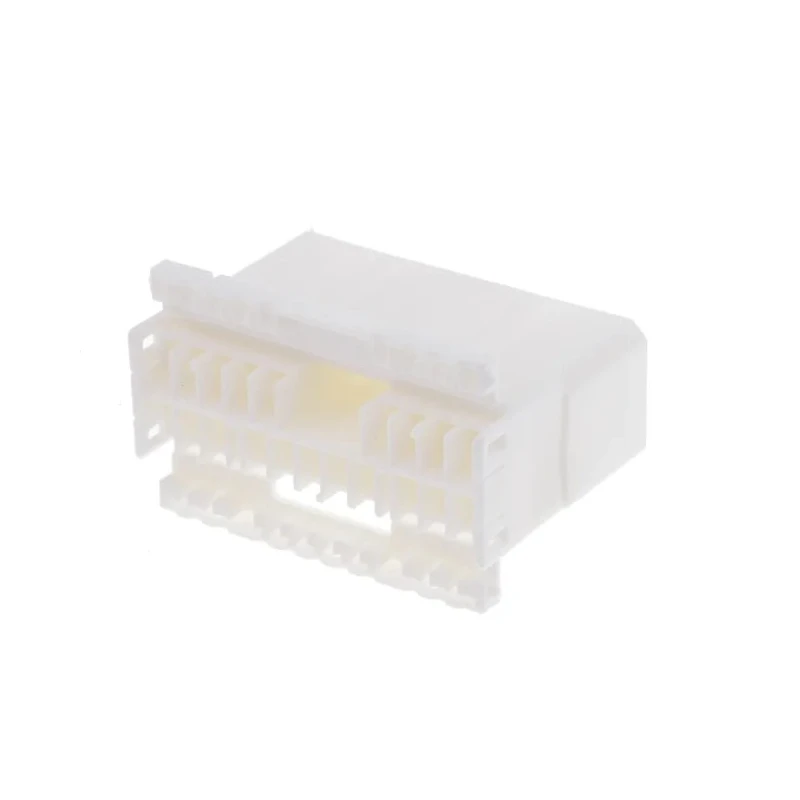

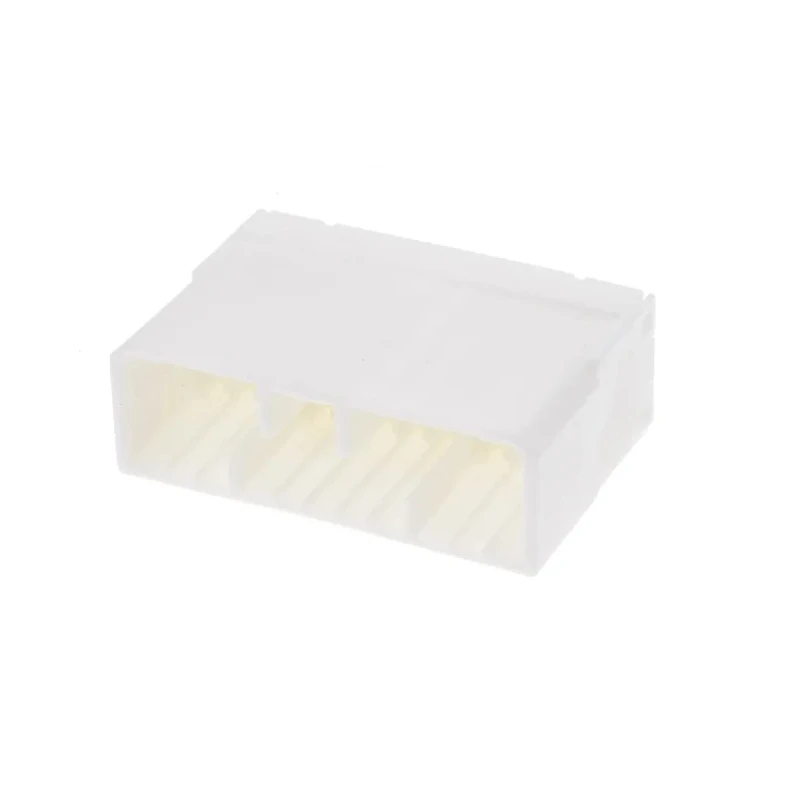

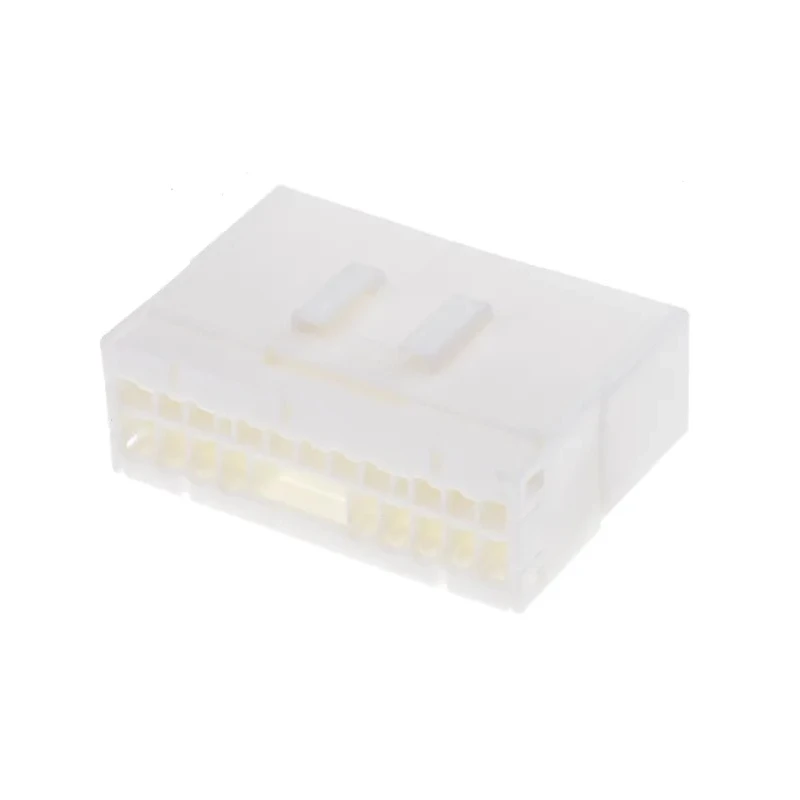

TE Connectivity MULTILOCK 070 Female Connector Housing, 3.5 mm Pitch, 20 Way, 2 Row Straight 1-174936-1

TE Connectivity 1-174936-1 MULTILOCK 070 Female Connector Housing is a high-density, miniaturized 3.5 mm pitch automotive connector housing designed for reliable wire to wire and wire to board connections in automotive electrics. It features a 20 way, 2 row straight layout suitable for demanding automotive applications.

The housing is crafted from durable polybutylene terephthalate material, offering resistance to mechanical stress and environmental factors. Its design integrates a housing lance system that allows use of lanceless contacts, preventing deformation and contact tangling during assembly.

A key feature is the integral double locking mechanism on the wire side, providing secure contact retention and ensuring reliable electrical connections even under vibration and movement. The housing also protects the contacts against rocking motion damage known as KOJIRI action during mating and unmating steps.

This connector housing is ideal for a broad range of automotive systems including powertrain controls, safety and security electronics, driver information, convenience features, and body and chassis wiring harnesses. The straight cable orientation facilitates straightforward cable routing.

The MULTILOCK 070 series supports the use of female crimp contacts which must be ordered separately. This series is a compact yet durable solution for automotive wire harness design.

Compact and durable Connector Housing designed for automotive wire to wire and wire to board connections. High-density 3.5 mm pitch and 20 contact positions in 2 rows. Housing made from polybutylene terephthalate for robustness and longevity.

Features an integral double locking system ensuring secure contact retention. Protects contacts against damage from rocking action (KOJIRI Action) during mating and unmating. Designed with a housing lance to enable lanceless contacts, avoiding deformation issues.

Suitable for powertrain, safety, driver information, convenience, body, and chassis automotive systems. Connector gender is female with straight cable orientation for ease of installation. Length measures 46.7 mm and width 43.7 mm, supporting compact assembly requirements.

Requires female crimp contacts (sold separately) for proper termination. EnvMart offers a comprehensive selection of TE Connectivity automotive connectors and housings to support industrial and commercial electronics needs.
