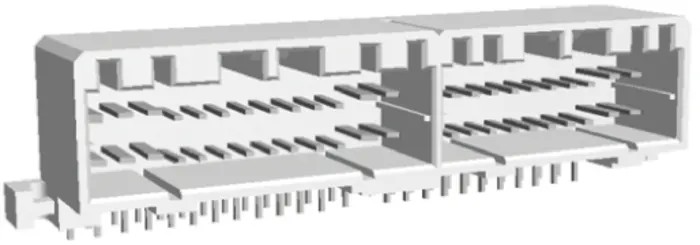

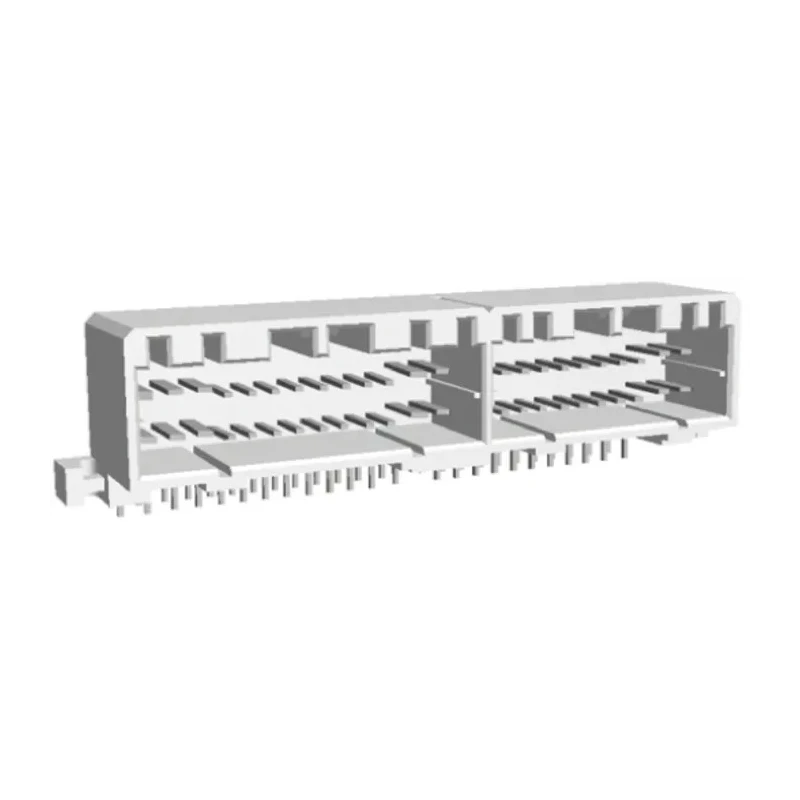

TE Connectivity MULTILOCK 040/070 Female Connector Housing, 3.5 mm Pitch, 48 Way, 2 Row Right Angle 174917-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 91.1mm |
| Model | 174917-1 |
| Width | 21.9mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 040/070 |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| For Use With | Wire-to-Board Connector |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-1001PBrand: TE ConnectivityManufacturers Part No.: 174917-1 |
| Number of Contacts | 48 |
| Connector Gender | Female |
Key Features
- This connector housing is designed for through-hole mounting with a right angle orientation.
- Made from durable polybutylene terephthalate material for reliable performance.
- Part of the MULTILOCK 040/070 series offering high-density wire-to-board hybrid I/O connections.
- Compatible with cable mount MULTILOCK 040/070 plug assemblies for versatile connectivity.
- Ideal for automotive industry and signal transfer applications requiring compact and sturdy connectors.
- Provides a compact size with length 91.1 mm and width 21.9 mm for PCB mounting.
Product Description
TE Connectivity 174917-1 MULTILOCK 040/070 female connector housing is a high-density, right-angle wire-to-board connector featuring 48 contact positions arranged in 2 rows with a 3.5 mm pitch. It is designed for through-hole mounting applications on printed circuit boards.
This connector housing utilizes robust polybutylene terephthalate material, ensuring durability and reliability in demanding environments. The MULTILOCK 040/070 series is a miniature hybrid I/O connector system widely used in the automotive sector as well as other industries requiring dense and secure signal and power transfer.
The right-angle orientation and compact dimensions of 91.1 mm length and 21.9 mm width allow effective PCB space utilization. These connectors mate with cable mount MULTILOCK 040/070 plug assemblies, supporting flexible wire-to-wire and wire-to-board configurations.
The design supports snap-in crimp contacts for cable receptacles and preloaded male contacts for board mounting. It facilitates hybrid signal and power connections tailored for complex electronic assemblies.
This connector housing uses a 3.5 mm contact pitch for high-density wiring. It offers 48 contact positions in two rows, enabling robust connections. Material construction from polybutylene terephthalate provides strength and heat resistance.
Suitable for industrial, automotive, and electronic manufacturing applications. Through-hole mount with right-angle orientation ensures stable PCB integration. Compact size conserves PCB footprint while enabling high performance.
TE Connectivity MULTILOCK connectors are proven solutions for reliable wire-to-board hybrid I/O connections, supporting both data and power lines with secure mechanical locking features. This Connector Housing is part of a broader ecosystem including matching plug assemblies to support diverse wiring needs.
Explore EnvMart to discover more high-quality electronic components and connector solutions from TE Connectivity and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity MULTILOCK 040/070 female connector housing is 3.5 mm.
This model supports 48 contact positions arranged in 2 rows.
The connector housing is designed with a right-angle orientation for through-hole mounting.
It is constructed from polybutylene terephthalate, providing durability and heat resistance.
The connector housing has a length of 91.1 mm and a width of 21.9 mm.
This model is designed for through-hole mounting on printed circuit boards.
It is part of the MULTILOCK 040/070 series, which is designed for high-density wire-to-board connections.
Yes, it is compatible with cable mount MULTILOCK 040/070 plug assemblies for versatile connectivity.
The connector gender of this housing is female.
It is suitable for applications in the automotive industry and signal transfer requiring compact connectors.
It supports snap-in crimp contacts for cable receptacles and preloaded male contacts for board mounting.
The country of origin for this connector housing is India.
