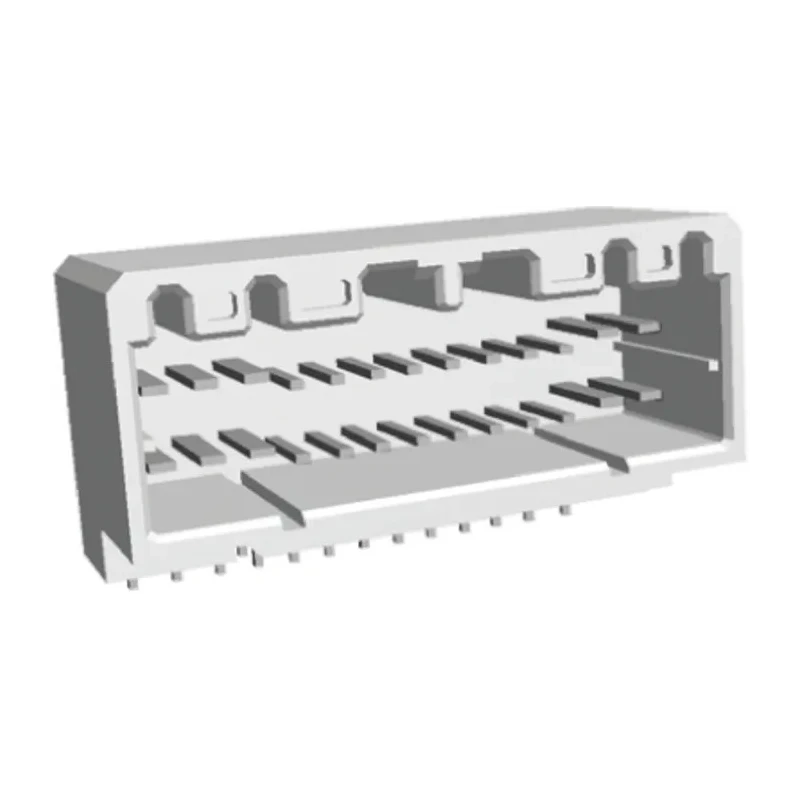

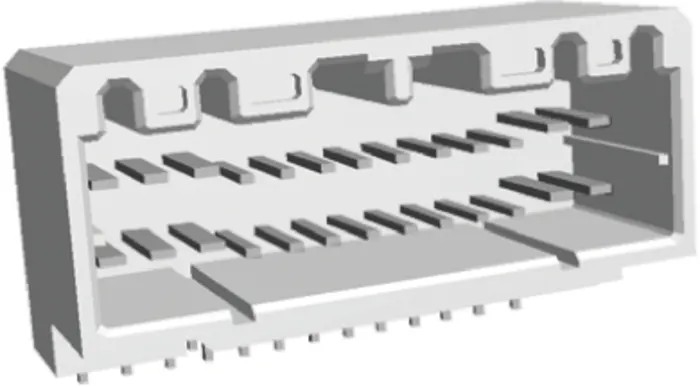

TE Connectivity MULTILOCK 040/070 Female Connector Housing 3.5 mm Pitch 26 Way 2 Row Right Angle 178811-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 45.4mm |
| Model | 178811-1 |
| Width | 21.9mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 040/070 |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| For Use With | Wire-to-Board Connector |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-0967PBrand: TE ConnectivityManufacturers Part No.: 178811-1 |
| Number of Contacts | 26 |
| Connector Gender | Female |
Key Features
- High density miniature connector system widely used in automotive and industrial signal transfer.
- Features 26 contacts arranged in 2 rows with 3.5 mm pitch spacing.
- Constructed from durable Polybutylene Terephthalate housing for robust mechanical protection.
- Designed for through-hole mount with right angle orientation for efficient PCB layout.
- Compatible with MULTILOCK 040/070 series for cable and board mating connectors.
- Snap-in crimp contacts ensure secure electrical connections with cable receptacles.
- Cable cap accepts female contacts to mate with cable plug for wire-to-wire connections.
Product Description
TE Connectivity 178811-1 MULTILOCK 040/070 female connector housing offers a reliable and high density wire-to-board connection solution. It features 26 contact positions arranged in two rows with a 3.5 mm pitch spacing, making it suitable for compact PCB assemblies requiring robust signal transfer.
Constructed from Polybutylene Terephthalate (PBT), this connector housing provides excellent mechanical strength, chemical resistance, and thermal stability, essential for automotive and industrial environments.
The connector is designed for through-hole mounting and right angle orientation, optimizing PCB space utilization and mechanical robustness. It is compatible with the MULTILOCK 040/070 connector series, allowing seamless mating with compatible cable plugs and caps for wire-to-wire or wire-to-board configurations.
The modular design offers snap-in crimp contacts for secure cable termination, ensuring reliable electrical contacts. The cable cap accepts female contacts and mates with the cable plug to facilitate flexible wiring options.
Key technical dimensions include a length of 45.4 mm and a width of 21.9 mm, providing a compact footprint suitable for dense electronic assemblies in automotive, industrial controls, and other electronic applications.
High density 26 way female connector housing with 3.5 mm pitch. Durable Polybutylene Terephthalate housing material. Through hole mount and right angle orientation for PCB integration. Compatible with MULTILOCK 040/070 series connectors and contacts.
Snap-in crimp contacts for cable termination. Suitable for automotive, industrial, and general electronics applications. Compact 45.4 mm length and 21.9 mm width footprint.
TE Connectivity’s MULTILOCK series addresses demanding applications where secure, compact, and reliable electrical connections are required. This Connector Housing is ideal for industrial, automotive, manufacturing, and electronic assembly uses. Browse more high-quality connector solutions on EnvMart to enhance your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing features a 3.5 mm pitch and has 26 contact positions arranged in two rows.
The housing is constructed from Polybutylene Terephthalate (PBT), which provides excellent mechanical strength and chemical resistance.
The connector housing has a length of 45.4 mm and a width of 21.9 mm, making it suitable for compact PCB assemblies.
It is designed for through-hole mounting, allowing for secure installation on PCBs.
Yes, it is compatible with the MULTILOCK 040/070 series connectors, allowing for seamless mating with compatible cable plugs and caps.
This model has a right angle orientation, which optimizes PCB space utilization.
The housing features snap-in crimp contacts that ensure secure electrical connections with cable receptacles.
It is suitable for automotive, industrial, and general electronics applications, providing reliable wire-to-board connections.
The connector gender of this housing is female, designed for use with wire-to-board connections.
The model number for this connector housing is 178811-1.
The country of origin for this connector housing is India.
This housing can facilitate wire-to-wire or wire-to-board configurations, enhancing flexible wiring options.
