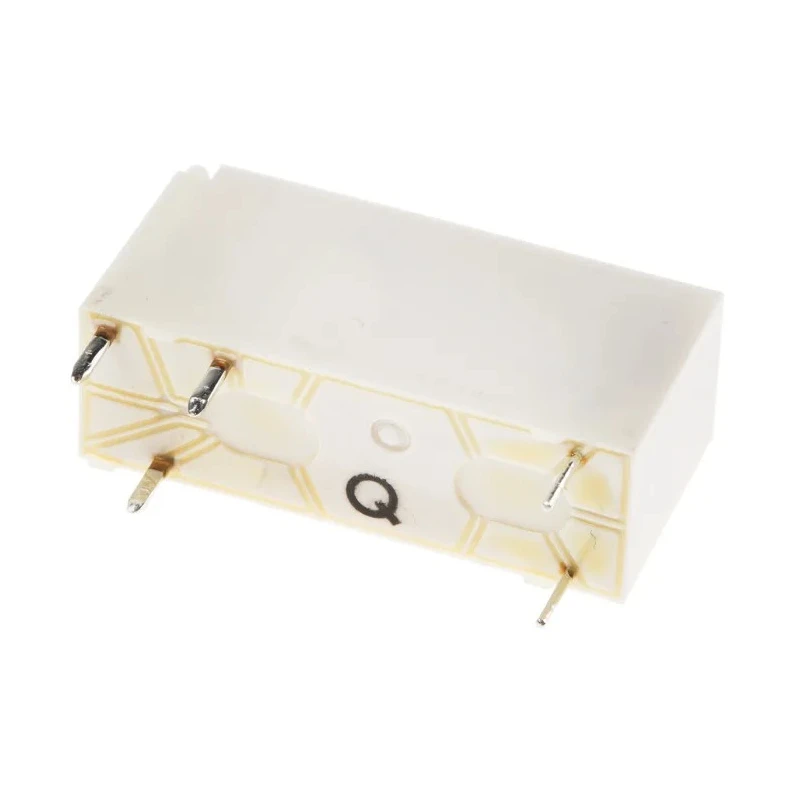

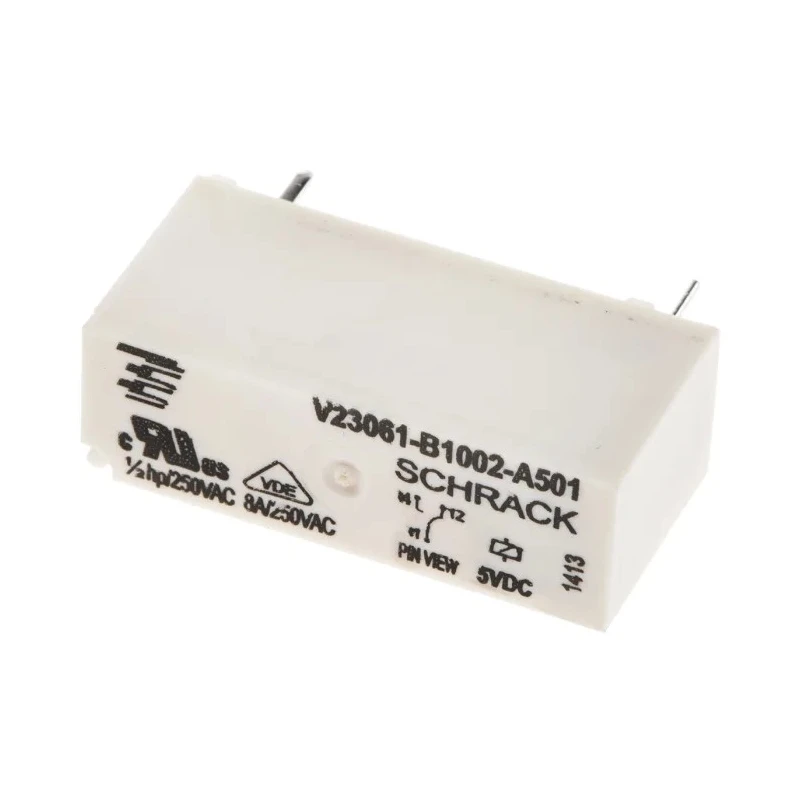

TE Connectivity PCB Power Relay 5V dc Coil 8A Switching Current SPDT MSR Series V23061B1002A501
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 30mm |
| Model | V23061B1002A501 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MSR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, REACH |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-6335PBrand: TE ConnectivityManufacturers Part No.: V23061B1002A501 |
| Coil Resistance | 118Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
Key Features
- Miniature MSR series relay with durable AgSno silver alloy contacts.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Supports switching AC voltage up to 400V for varied applications.
- Designed for through hole PCB mounting with solder terminal type for secure connections.
- Compact dimensions of 30mm length, 15mm height, and 10mm width for space saving.
- Low coil power consumption at 220mW ensures energy efficiency.
- Complies with VDE, UL, RoHS, and REACH standards for quality and safety.
Product Description
TE Connectivity V23061B1002A501 PCB Power Relay is a compact and reliable MSR series miniature power relay suitable for industrial, laboratory, and manufacturing applications. It features high-quality silver alloy (AgSno) contacts designed for high inrush currents and reinforced insulation, ensuring robust performance on PCB assemblies.
This relay operates with a 5V dc coil voltage and supports a switching current of 8A, capable of handling switching AC voltages up to 400V. Its operating temperature range from -40°C to 85°C makes it suitable for diverse environmental conditions.
The relay is designed for PCB through-hole mounting with solder-type terminals that provide stable electrical connections. Its compact size with dimensions 30mm (length) x 15mm (height) x 10mm (width) helps in efficient use of board space.
With a coil resistance of 118Ω and coil power consumption of 220mW, it balances power efficiency and performance for demanding automation and electrical control systems. Miniature MSR series relay with durable AgSno silver alloy contacts.
Operates reliably in temperatures ranging from -40°C to 85°C. Supports switching AC voltage up to 400V for varied applications. Designed for through hole PCB mounting with solder terminal type for secure connections. Compact dimensions of 30mm length, 15mm height, and 10mm width for space saving.
Low coil power consumption at 220mW ensures energy efficiency. Complies with VDE, UL, RoHS, and REACH standards for quality and safety.
This power relay is ideal for use in electrical, automation, manufacturing, industrial machinery, and commercial electronic equipment where reliable switching and high inrush current capability are essential. The robust construction with AgSno contacts and reinforced insulation improves longevity and safety in demanding electrical control applications.
Explore EnvMart’s selection of Power Relays for precise and dependable switching components designed to meet your industrial automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 8A.
This model operates with a coil voltage of 5V dc.
The relay has compact dimensions of 30mm in length, 15mm in height, and 10mm in width.
It can handle switching AC voltages up to 400V.
The relay operates reliably in temperatures ranging from -40°C to 85°C.
This relay is designed for through-hole PCB mounting with solder-type terminals.
The contacts are made of durable silver alloy (AgSno).
It complies with VDE, UL, RoHS, and REACH standards.
The coil resistance is 118Ω.
The coil power consumption is 220mW.
It is suitable for industrial, laboratory, and manufacturing applications requiring reliable switching.
The contact configuration is SPDT (Single Pole Double Throw).
