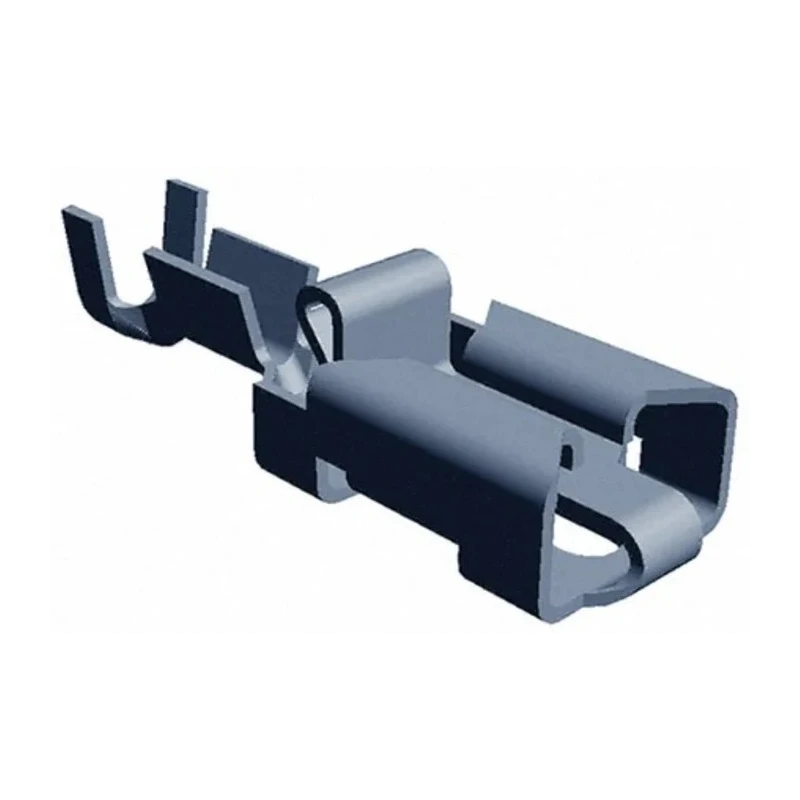

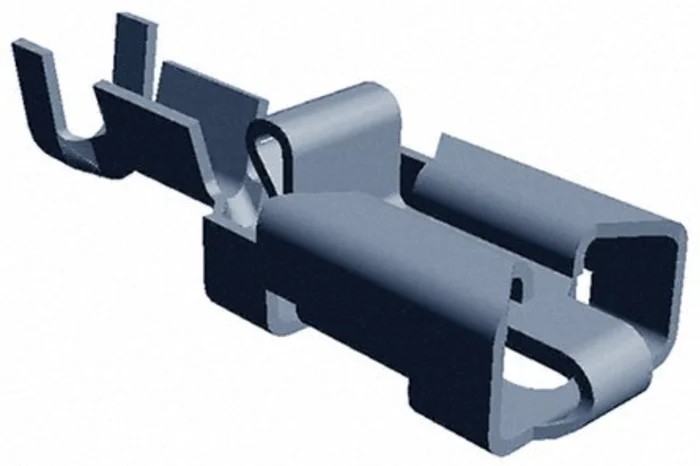

TE Connectivity Automotive Connector Terminal MK1 Female Receptacle Nickel Plated Phosphor Bronze 22.9mm 6.35mm 1-160773-0

TE Connectivity 1-160773-0 Automotive Connector Terminal MK1 Female Receptacle is a high-quality electrical connector designed specifically for automotive use, offering reliable and secure connections in demanding environments.

This positive lock connector contact belongs to the MK1 250 Series and features a flag-style crimp terminal with reduced insertion force and snap action locking, enhancing assembly efficiency and connection reliability.

The receptacle is compatible with wire sizes ranging from 20 to 10 AWG, making it suitable for diverse automotive wiring applications. The contact plating is nickel, providing effective corrosion resistance, while the contact material is phosphor bronze, known for its excellent electrical conductivity and mechanical strength.

Operating temperature ranges from -40°C to 100°C, making it suitable for automotive environments subject to temperature extremes. Key dimensions include a length of 22.9 mm, a width of 6.35 mm, and a diameter of 3.3 mm, ensuring compatibility with standard automotive terminals.

The design incorporates a positive lock feature that mechanically snaps onto mating tab terminals containing holes or dimples, offering a secure and vibration-resistant connection. The integral depressor on the receptacle terminal allows for easy disconnection when needed, facilitating maintenance and repairs.

This product is ideal for automotive electrical connectors in applications requiring robust and reliable terminal connections, including wiring harnesses, control units, and sensor interfaces.

The MK1 250 Series positive lock receptacle offers reduced insertion force with snap action locking for ease of use. Nickel plating on contacts enhances corrosion resistance and durability in harsh environments. Phosphor bronze contact material ensures superior electrical conductivity and mechanical strength.

Supports wire sizes from 20 to 10 AWG, providing compatibility with a broad range of automotive wiring. Mechanical snap locking onto mating terminals ensures secure and vibration-resistant connections. Integral depressor enables safe and simple disconnection for maintenance and replacement.

Reliable performance over a temperature range of -40°C to 100°C for automotive applications. Compact dimensions facilitate integration into existing automotive connector systems.

Explore EnvMart for a broad selection of automotive electrical connectors and terminals from TE Connectivity and other leading brands to support your industrial, automotive, and manufacturing needs.
