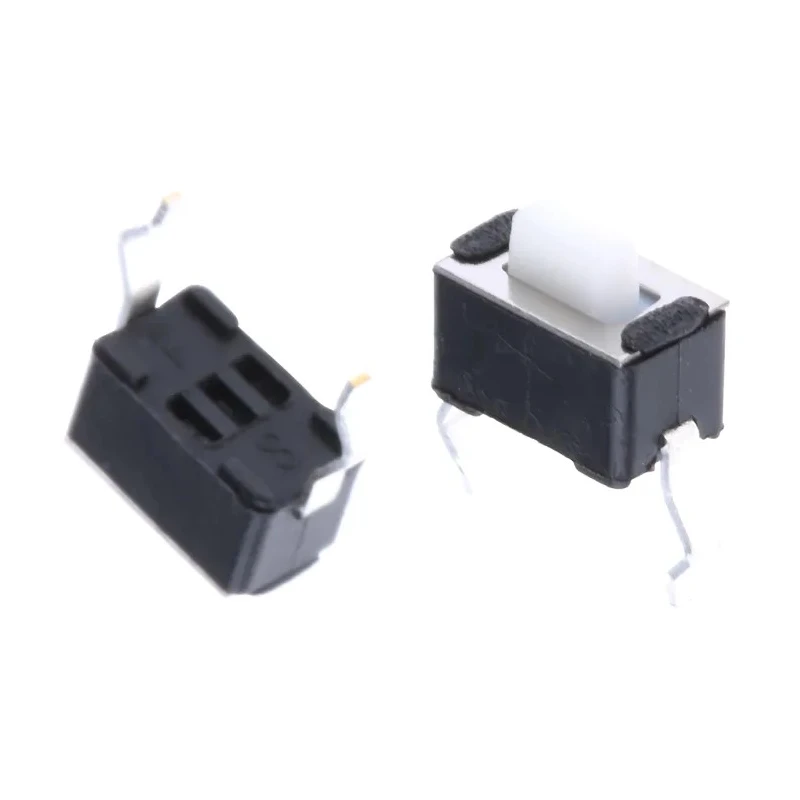

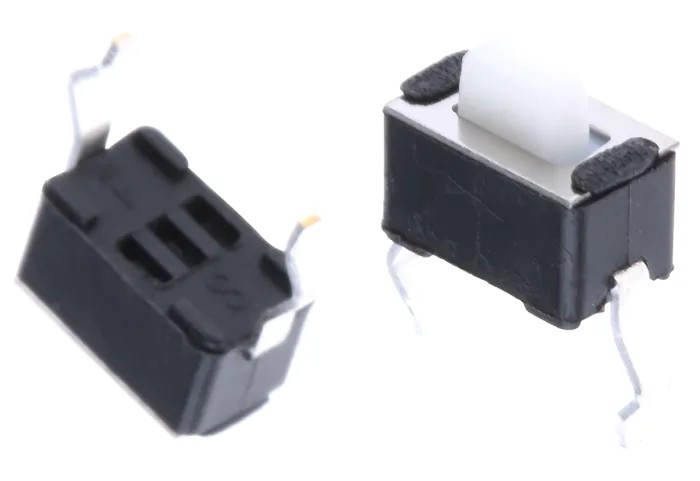

TE Connectivity White Tactile Switch Button 1.5 mm SPST 50mA 24 V dc Through Hole 1825965-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5mm |
| Length | 6mm |
| Width | 3.5mm |
| Mount Type | Through Hole |
| Series | FSM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Terminal type | Solder |
| Standards/Approvals | EU RoHS, EU REACH, EU ELV, China RoHS 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-2424PBrand: TE ConnectivityManufacturers Part No.: 1825965-1 |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Length | 1.5mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Actuator Orientation | Top |
| Switch Contact Current | 50mA |
| Operating Force | 1.28N |
| Mechanical Life | 20000Cycles |
Key Features
- The tactile switch features a Single Pole Single Throw (SPST) contact configuration.
- Operates at a maximum contact current of 50 mA and voltage of 24 V dc.
- Mounting type is Through Hole Technology suitable for PCB assembly.
- The actuator color is white with a button style and 1.5 mm actuator length.
- It provides a mechanical life of 20,000 cycles ensuring durability.
- Operating force is 1.28 Newtons, with low profile and small PCB footprint.
- Suitable for use in keyboards, keypads, telephones, radios, and general consumer electronics.
- Temperature operating range is from -35°C to 85°C for versatile environments.
Product Description
TE Connectivity 1825965-1 White Tactile Switch Button 1.5 mm SPST 50mA 24 V dc Through Hole is part of the FSM series known for their high performance and durability. These Tactile Switches are made from durable Nylon 66 housing with copper alloy-silver moving contacts, offering excellent conductivity and reliability for circuit closure on PCBs.
This tactile switch is designed for momentary operation with a SPST contact configuration, making it ideal for applications such as keyboards, keypads, telephones, radios, and other consumer electronic devices.
The switch has a compact footprint (6 mm length, 3.5 mm width, and 5 mm height) and features a white button actuator with a 1.5 mm travel length, allowing for low-profile installation while ensuring user tactile feedback.
With an operating force of 1.28N and a mechanical life expectancy of up to 20,000 cycles, it offers both precision and longevity in use. The switch supports a contact current up to 50mA at 24V dc and functions reliably within a temperature range of -35°C to 85°C, suitable for diverse industrial and consumer environments.
Mount type is Through Hole Technology, enabling easy solder terminal mounting on printed circuit boards. The product complies with EU RoHS, EU REACH, EU ELV, and China RoHS 2 standards, ensuring environmental safety in manufacturing and disposal.
The tactile button actuator is of top orientation, promoting convenient user access. Its small PCB footprint facilitates compact designs in electronic equipment. Excellent for industrial, laboratory, telecommunications, and consumer electronics applications requiring reliable switch input control.
The switch characteristics allow for excellent tactile feedback with low actuation travel. Recommended for use in keyboards, keypads, telephones, radios, and general consumer electronics for circuit closing operations.
EnvMart offers this durable and precision-engineered tactile switch as a reliable choice for your electronic design projects under the trusted TE Connectivity brand and model 1825965-1.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch operates at a maximum contact current of 50 mA and a voltage of 24 V dc.
This model has a length of 6 mm, width of 3.5 mm, and height of 5 mm.
The switch operates within a temperature range of -35°C to 85°C.
It uses Through Hole Technology for mounting, which is suitable for PCB assembly.
The mechanical life expectancy of this switch is up to 20,000 cycles.
The actuator length is 1.5 mm, and the actuator style is a button.
The contact configuration is Single Pole Single Throw (SPST).
The operating force required for actuation is 1.28 Newtons.
This product complies with EU RoHS, EU REACH, EU ELV, and China RoHS 2 standards.
The switch features solder terminals for connection.
It is suitable for use in keyboards, keypads, telephones, radios, and general consumer electronics.
The switch is made from durable Nylon 66 housing with copper alloy-silver moving contacts.
