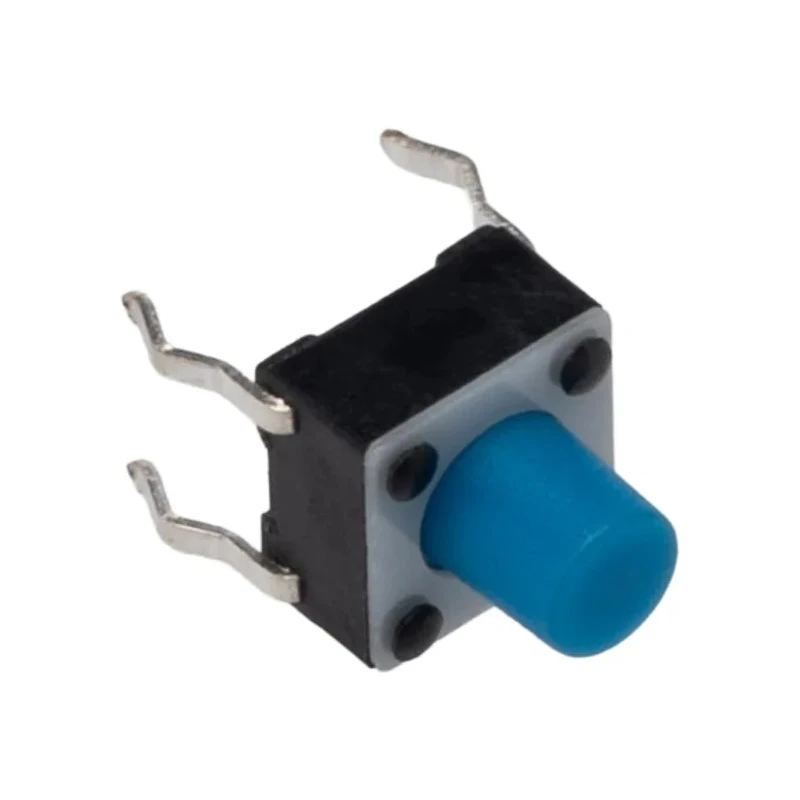

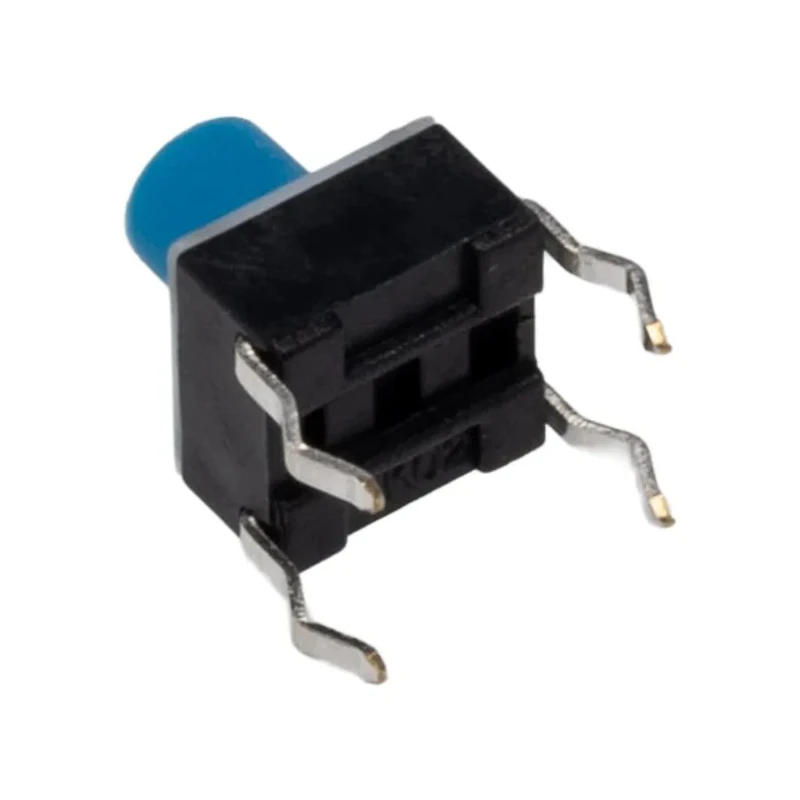

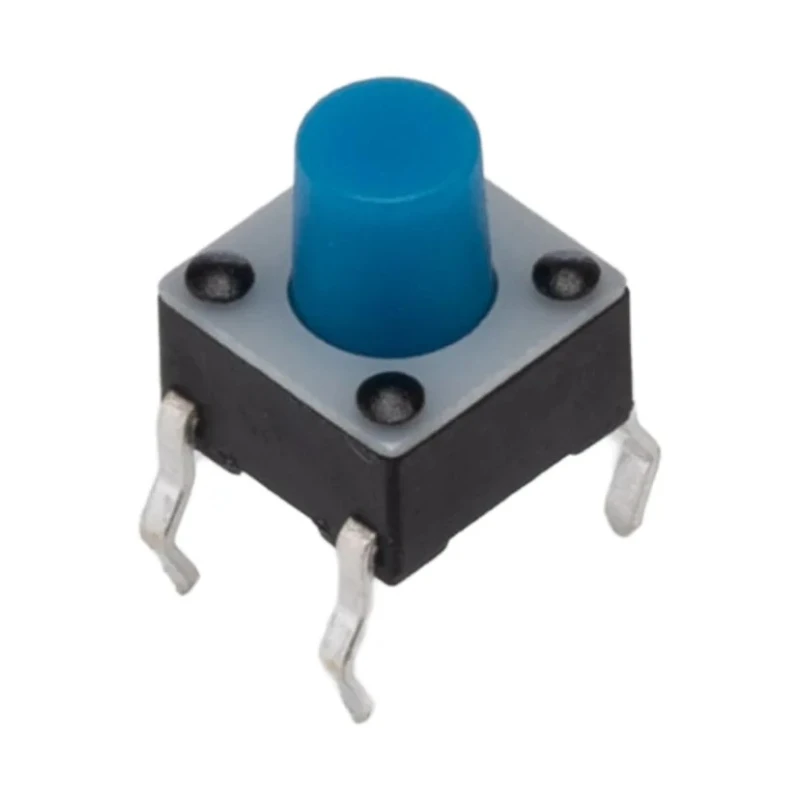

TE Connectivity Blue Tactile Switch Button SPST 50mA 24 V dc, 3.4 mm Actuator Length, Through Hole Mount 1-1825910-0

Name: TE Connectivity Blue Tactile Switch Button SPST 50mA 24 V dc, 3.4 mm Actuator Length, Through Hole Mount 1-1825910-0
Brand: TE Connectivity
SKU: 358064
Price: 0.22 USD
Availability: InStock



Category Tactile Switches Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	7mm
Length	6mm
Width	6mm
Mount Type	Through Hole
Series	FSM
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	SPST
Minimum Operating Temperature	-35°C
Terminal type	Solder
Standards/Approvals	China RoHS 2, EU ELV, EU REACH, EU RoHS
Pay online using	Or choose to pay later via bank transfer
Switch Operation	Momentary
Actuator Colour	Blue
Actuator Length	3.4mm
Contact DC Voltage	24V dc
Actuator Style	Button
Actuator Orientation	Top
Switch Contact Current	50mA
Operating Force	1.569N
Mechanical Life	100000Operations

Key Features

Features a 3.4 mm blue actuator with a top button style for easy tactile feedback.
Designed for through hole mounting on PCBs, ensuring stable mechanical fixation.
Operates at 24 V dc with a contact current rating of 50 mA.
Rated for mechanical life of 100,000 operations with an operating force of 1.569 N.
Compact dimensions of 6 mm length, 6 mm width, and 7 mm height fit small footprint applications.
Constructed using Nylon 66 housing and copper alloy-silver moving contact for durability.
Certified compliant with China RoHS 2, EU ELV, EU REACH, and EU RoHS standards.
Suitable for use in keyboards, keypads, telephones, radios, and general consumer electronic devices.

Product Description

TE Connectivity 1-1825910-0 blue tactile switch button is a durable, professional-grade component designed for PCB mounting applications requiring momentary switch functionality. With a compact 3.4 mm actuator length and blue actuator color, this switch offers precise tactile feedback in small form factor designs.

The switch uses a Single Pole Single Throw (SPST) contact configuration rated at 50 mA and 24 V dc, suitable for low current signal circuits. It features through hole mounting type, enabling secure PCB installation and stable electrical connections.

Its housing is made of Nylon 66, a robust insulating material, and the moving contact is constructed from copper alloy-silver for reliable conductivity and long operational life. The mechanical life expectancy is rated for 100,000 operations with a consistent operating force of 1.569 N, providing dependable performance over extended use.

Operating within a temperature range from -35°C to 85°C, this tactile switch conforms to several international environmental standards including China RoHS 2, EU ELV, EU REACH, and EU RoHS, ensuring environmental compliance in electronics manufacturing.

Typical industrial and commercial usage scenarios include integration into keyboards, keypads, telecommunication devices such as telephones and radios, as well as various general consumer electronics requiring compact, reliable switch components.

3.4 mm blue actuator with button style for tactile feedback. Through hole mount for secure PCB installation. SPST contact with 50 mA, 24 V dc rating. Nylon 66 housing and copper alloy-silver contact materials. Mechanical life of 100,000 operations and operating force of 1.569 N.

Compliance with China RoHS 2, EU ELV, EU REACH, and EU RoHS. Designed for keyboards, keypads, telephones, radios, and general consumer electronics.
