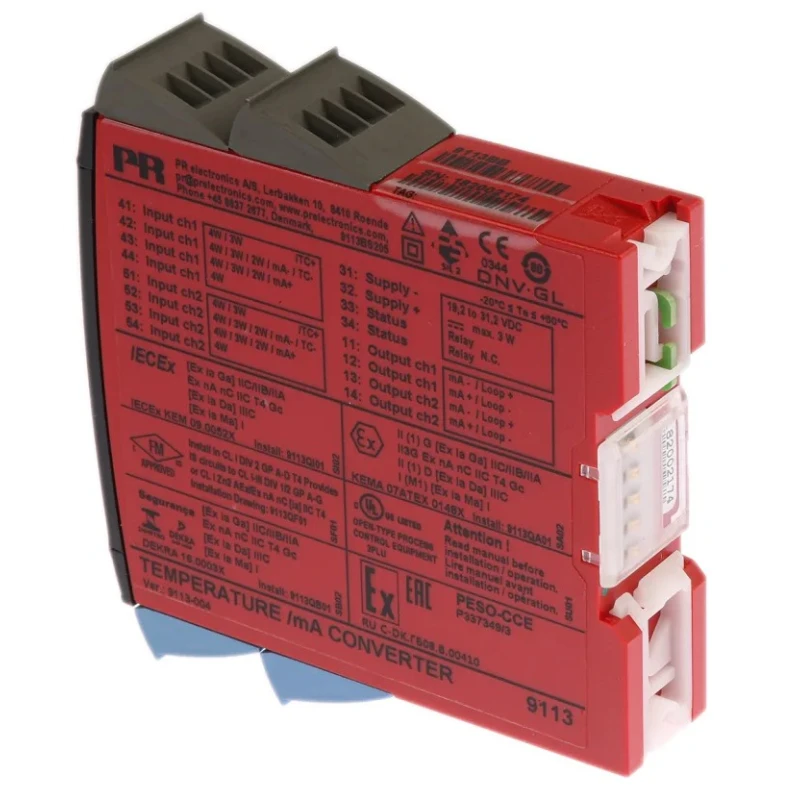

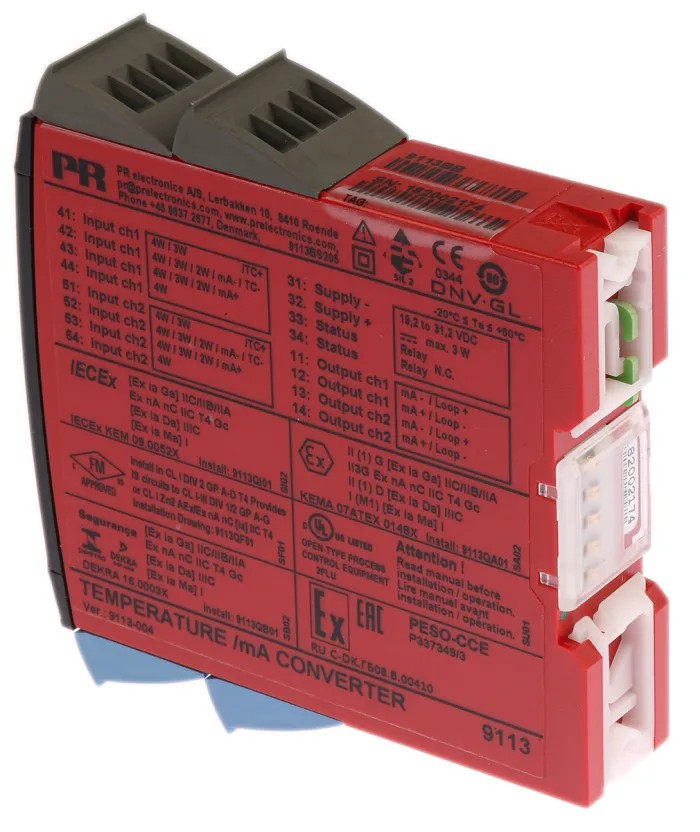

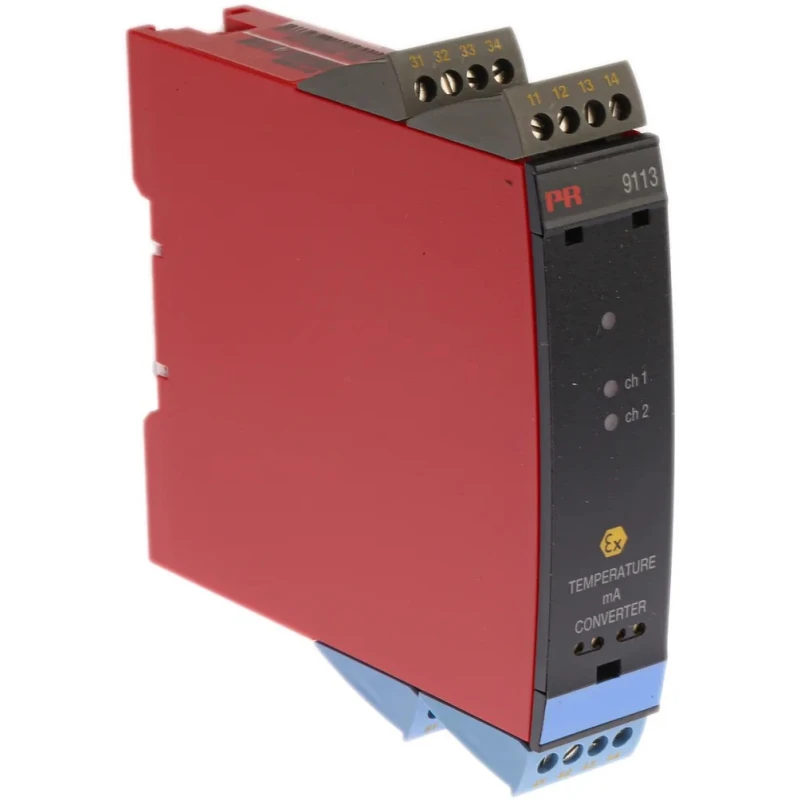

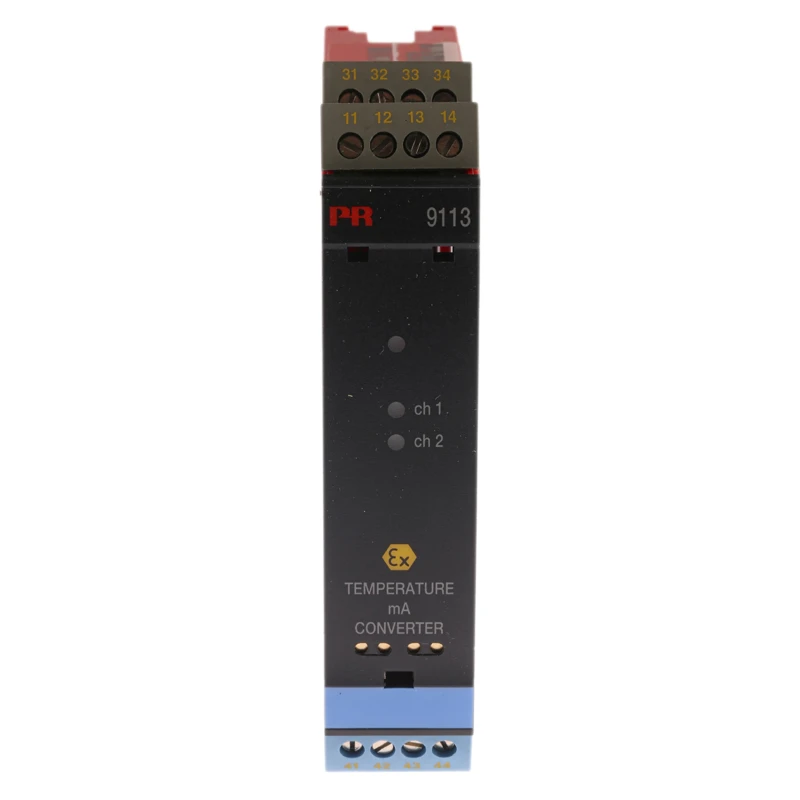

PR Electronics 9100 Series Temperature Converter Thermocouple Current RTD Input Current Relay Output 19.2V dc 9113BB

PR Electronics 9113BB Temperature Converter is a high-quality signal conditioner designed for the conversion and scaling of temperature signals including Pt, Ni, Thermocouples, and active current. This model features thermocouple, current, and RTD input capabilities with current and relay output signals operating at 19.2V dc.

The device provides 2.6kV AC galvanic isolation between input, output, and supply, ensuring safe and reliable operation in industrial and hazardous environments. Certified for use in SIL 2 safety applications according to IEC 61508, it supports hazardous zones with ATEX certification.

This temperature converter supports a maximum operating temperature of 60°C and a minimum operating temperature of -20°C, suitable for various industrial, laboratory, manufacturing, HVAC, and process automation applications. It is mounted on a DIN rail with IP20 protection and screw terminal connections for ease of installation and maintenance.

Configuration and monitoring are facilitated via a detachable display front (sold separately), allowing process calibration, signal simulation, and password-protected programming for higher security. The device supports copying configurations between units through the display front, enhancing operational efficiency.

Its compact and flexible design makes it appropriate for electrical panels and signal conditioning setups requiring precise and reliable temperature measurement and signal conditioning. The PR Electronics 9113BB comes from a trusted brand with a manufacturing origin in Denmark and compliance with multiple standards including SIL, CE, IEC, UL, FM, DNV GL, and EAC.

Supports thermocouple, current, and RTD input signals for versatile temperature measurement. Output options include current and relay signals for adaptable control integration. Equipped with 2.6kV AC galvanic isolation for safe and reliable operation.

Designed for SIL 2 applications, meeting IEC 61508 requirements for safety integrity. Compact DIN rail mount type suitable for industrial signal conditioning installations. Programmable via detachable display front offering calibration and diagnostics.

Certified for hazardous area usage with ATEX approval. Operates between -20°C and 60°C temperature range. Screw terminal connections with IP20 rating enhance durability and safety. Manufactured in Denmark with compliance to multiple international standards.

Explore more signal conditioning solutions and Temperature Converters at EnvMart for industrial and laboratory needs.
