TE Connectivity PCB Power Relay 115V AC Coil 8A Switching Current DPDT RT2 Series 9-1393243-2

Free Delivery in India | Lowest Global Shipping Charges

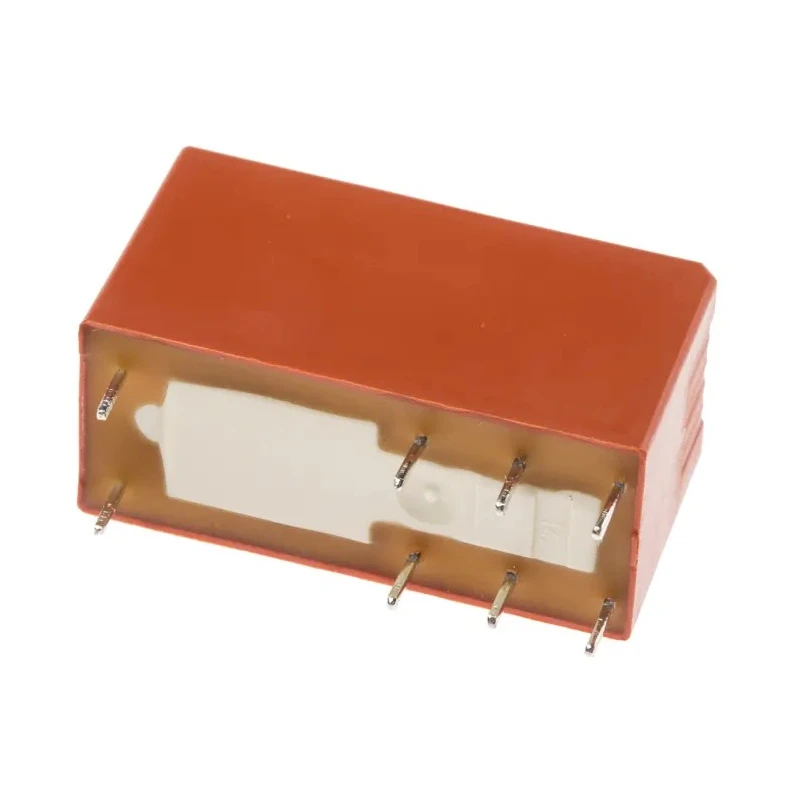

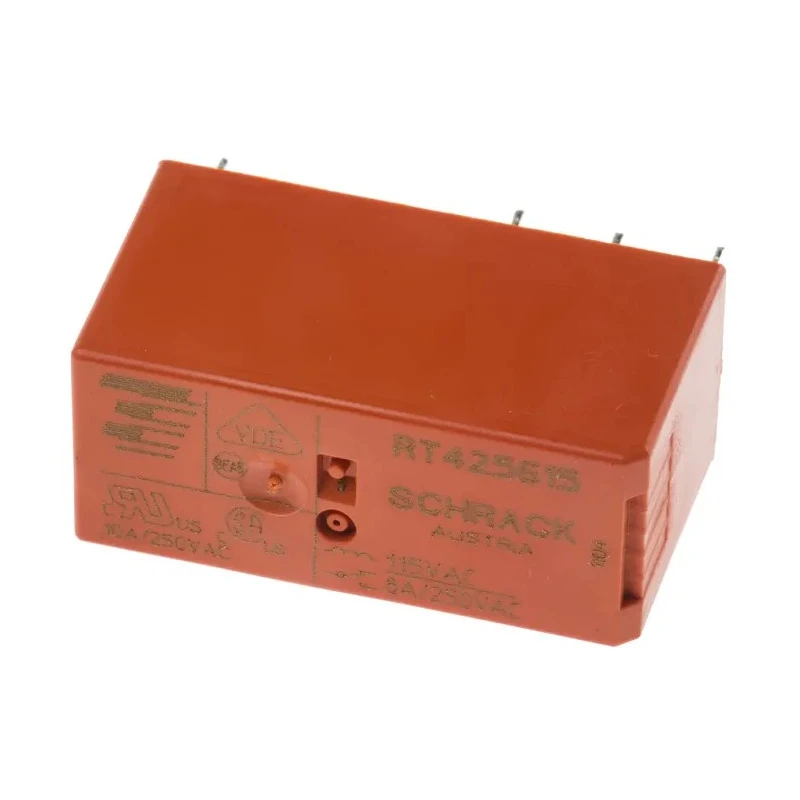

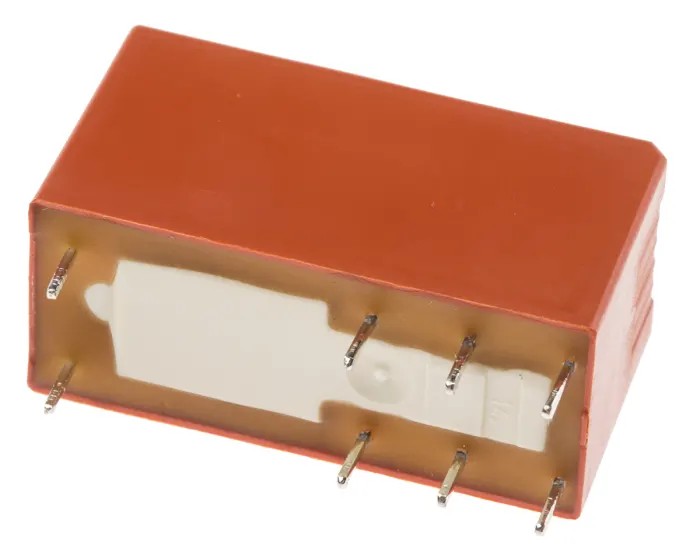

TE Connectivity PCB Power Relay 115V AC Coil 8A Switching Current DPDT RT2 Series 9-1393243-2

Name: TE Connectivity PCB Power Relay 115V AC Coil 8A Switching Current DPDT RT2 Series 9-1393243-2
Brand: TE Connectivity
SKU: 358051
Price: 26.24 USD
Availability: InStock



Category Power Relays Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	15.7mm
Length	29mm
Width	12.7mm
Mount Type	PCB
Contact Material	Gold Plated
Series	RT2
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	8A
Terminal type	Solder
Standards/Approvals	VDE, UL, RoHS, REACH, IEC
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	718-2008PBrand: TE ConnectivityManufacturers Part No.: 9-1393243-2
Coil Resistance	8.1kΩ
Coil Voltage	115V ac
Switching AC Voltage	400V ac
Coil Power	750mW

Key Features

Operates with a 115V AC coil voltage for efficient power control.
Features a double-pole double-throw (DPDT) contact configuration.
Supports a maximum switching AC voltage of 400V AC.
Equipped with solder terminals for PCB mounting compatibility.
Gold-plated contacts enhance conductivity and durability.
Coil resistance is rated at 8.1 kΩ ensuring stable operation.
Capable of operating within temperature ranges from -40°C to 85°C.
Compact dimensions with a length of 29mm, width of 12.7mm, and height of 15.7mm.

Product Description

TE Connectivity 9-1393243-2 PCB Power Relay is a high-quality electromechanical relay designed for reliable switching in industrial, automation, and domestic control systems. Featuring an 8A switching current and a 115V AC coil, this relay suits applications requiring efficient circuit control and safety.

Its double-pole double-throw (DPDT) contact arrangement allows versatile switching operations, providing enhanced control over loads. The gold-plated contact material ensures excellent conductivity and corrosion resistance, enhancing long-term reliability.

The relay is designed for PCB mounting using solder terminals, compatible with RT2 series through-hole layouts with 5mm pinning spacing. Its compact physical dimensions (29mm length, 12.7mm width, 15.7mm height) facilitate integration into space-constrained assemblies.

Operating temperature range from -40°C up to 85°C makes it suitable for harsh environmental conditions encountered in industrial and commercial applications.

With a coil resistance of 8.1 kΩ and a coil power rating of 750mW, this power relay balances efficient power consumption with robust performance. The relay supports switching AC voltages up to 400V, making it ideal for a wide range of electrical control systems.

Operates with a 115V AC coil voltage for efficient power control. Features a DPDT contact configuration for flexible switching. Gold-plated contacts ensure electrical reliability and durability. Compact size fits standard PCB mounting layouts.

Wide operating temperature range suitable for varied conditions. Meets stringent international standards including VDE, UL, RoHS, REACH, and IEC. Coil resistance and power designed for optimal energy efficiency. Ideal for interface, automation, security lighting, and heating systems.

RT2 series relay supports flux-proof through-hole mounting with 5mm pinning.

This relay is well suited for industrial automation systems, HVAC controls, manufacturing equipment, and other applications requiring dependable power relay performance. Its robust certifications ensure compliance with global safety and quality requirements. Choose TE Connectivity PCB Power Relay 9-1393243-2 for your reliable low-power switching needs.

Explore the Power Relays category to discover more high-quality relays and components suitable for your application requirements on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The relay operates with a coil voltage of 115V AC, allowing for efficient power control in various applications.

It supports a maximum switching AC voltage of 400V AC, making it suitable for a range of electrical control systems.

This power relay has a switching current rating of 8A, enabling it to handle various load requirements.

The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, facilitating integration into space-constrained assemblies.

It features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching operations.

This model is equipped with solder terminals, designed for PCB mounting compatibility.

The coil resistance is rated at 8.1 kΩ, ensuring stable operation during use.

It can operate within a temperature range from -40°C to 85°C, making it suitable for harsh environmental conditions.

This relay meets several international standards including VDE, UL, RoHS, REACH, and IEC, ensuring compliance with global safety and quality requirements.

The coil power rating is 750mW, balancing efficient power consumption with robust performance.

The contacts are made of gold-plated material, which enhances conductivity and corrosion resistance.

It is well suited for industrial automation systems, HVAC controls, and other applications requiring dependable power relay performance.
