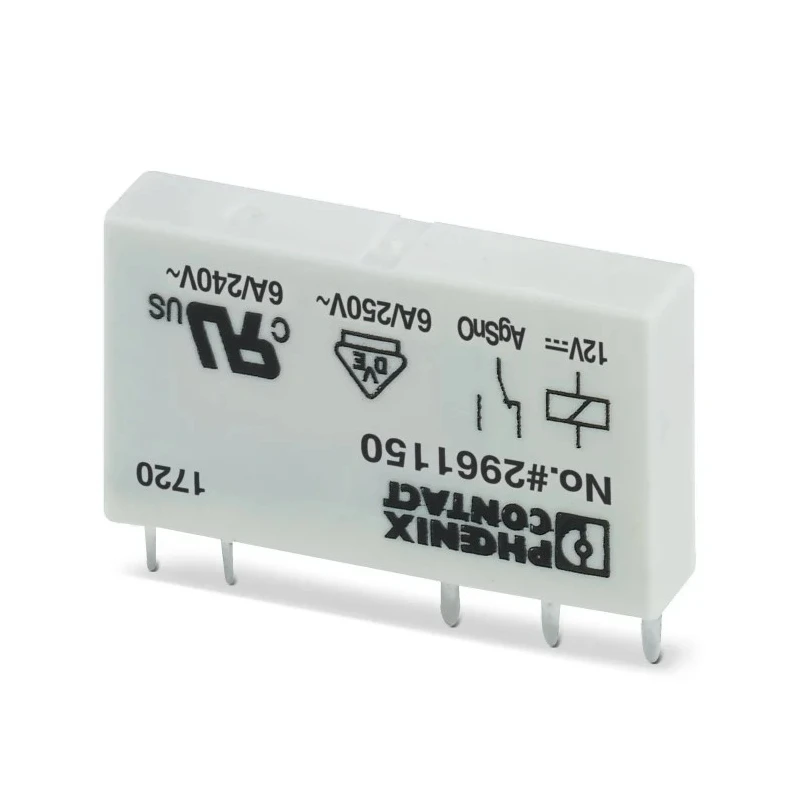

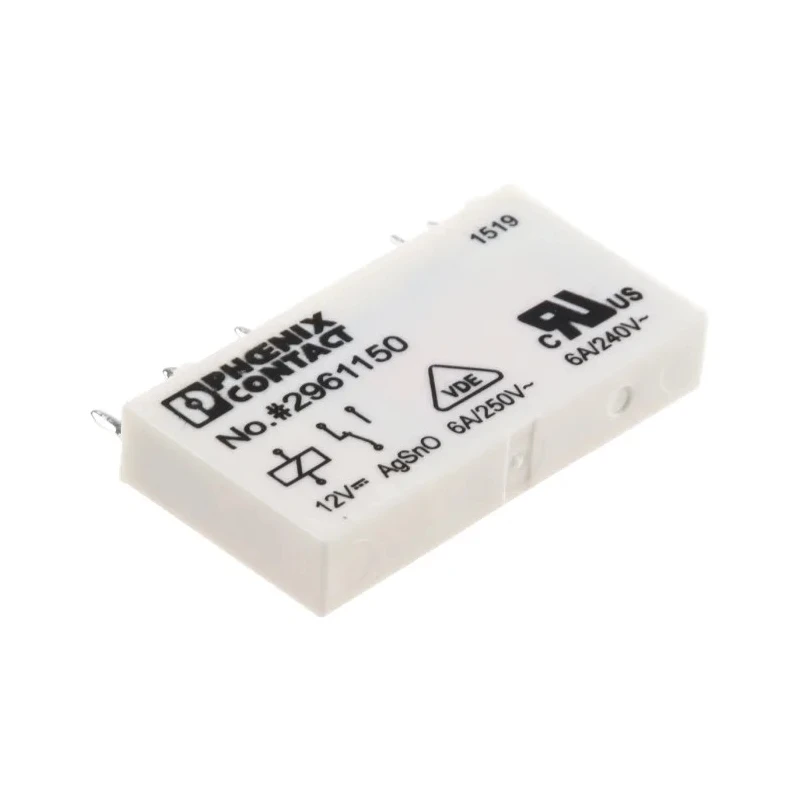

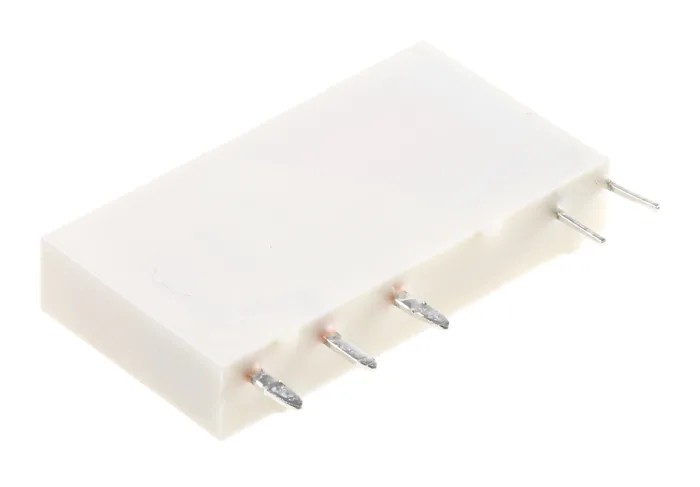

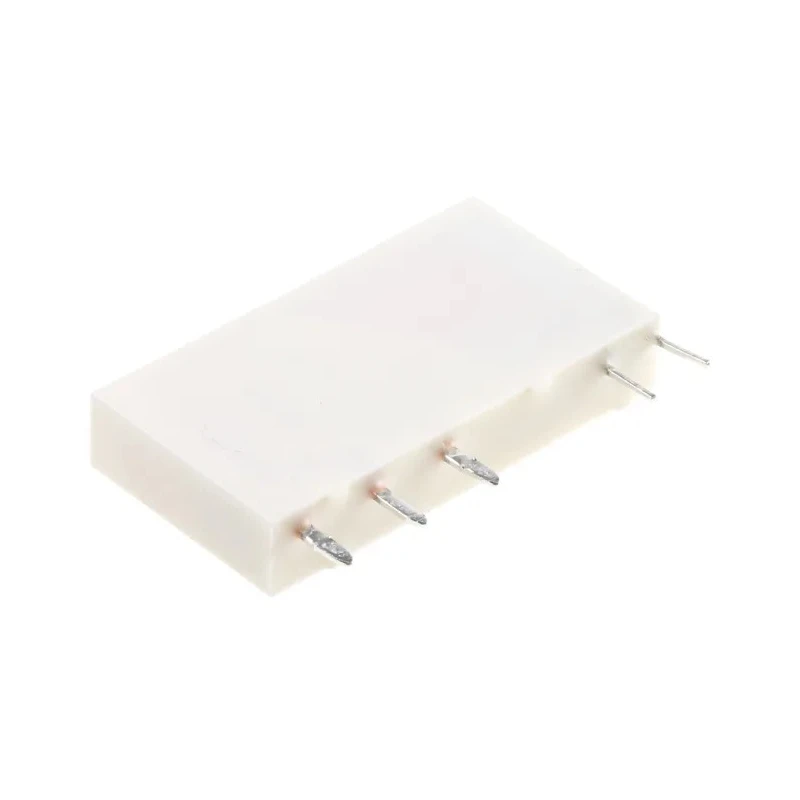

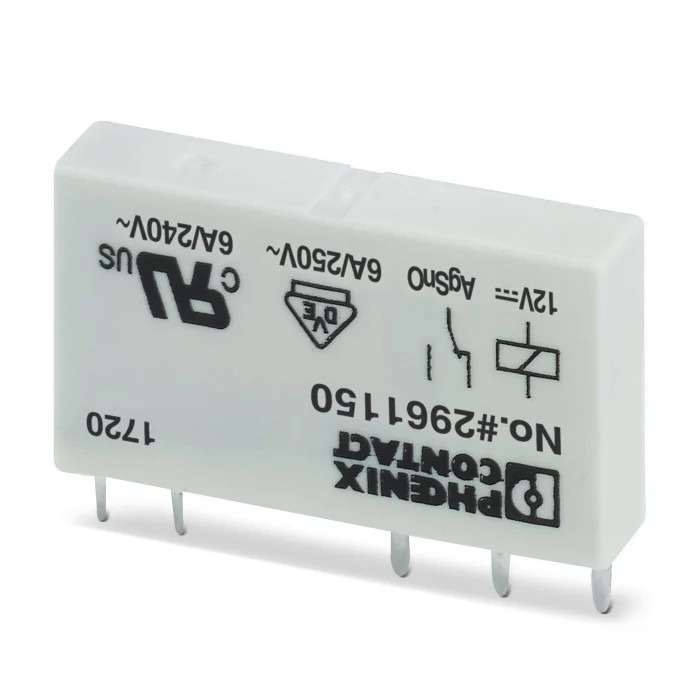

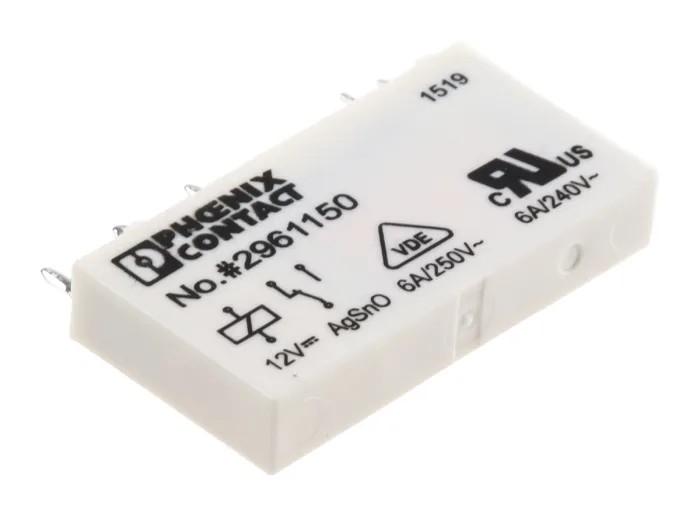

Phoenix Contact PCB Power Relay 12V DC Coil 6A Switching Current SPDT 2961150

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact PCB Power Relay 12V DC Coil 6A Switching Current SPDT 2961150

Name: Phoenix Contact PCB Power Relay 12V DC Coil 6A Switching Current SPDT 2961150
Brand: PHOENIX CONTACT
SKU: 373358
Price: 14.31 USD
Availability: InStock



Category Power Relays Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Czech Republic
Brand	Phoenix Contact
Height	28mm
Length	5mm
Model	2961150
Width	5mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	REL-MR- 12DC/21
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	6A
Terminal type	PCB Pin
Standards/Approvals	cUL, GL, GOST, UL, VDE-PZI, CSA
Coil Resistance	848Ω
Coil Voltage	12V dc
Switching DC Voltage	250V dc
Switching AC Voltage	250V ac

Key Features

Operates with a 12V DC coil voltage for wide compatibility.
Features SPDT contact configuration for versatile circuit control.
Supports switching currents up to 6A suitable for demanding loads.
Compact dimensions of 5mm width, 28mm height, and 15mm depth for easy PCB integration.
Wide operating temperature range from -40°C to 85°C ensures durability under harsh conditions.
Silver alloy contacts provide excellent conductivity and corrosion resistance.
Mechanical service life rated at 20 million cycles for long-term reliability.
PCB pin terminal type enables secure mounting on printed circuit boards.

Product Description

Phoenix Contact 2961150 PCB Power Relay is a durable, high-quality SPDT power relay designed for precise electronic switching on PCBs. It features a coil voltage of 12V DC and a switching current capacity of 6A, making it ideal for controlling diverse electrical loads in industrial, telecommunications, automotive, and automation equipment.

This relay offers a compact form factor measuring 5mm in width, 28mm in height, and 15mm in depth, allowing seamless integration into crowded PCB layouts. The device operates reliably within a temperature range of -40°C to 85°C, ensuring performance stability in challenging environments.

Equipped with silver alloy contacts, the relay assures minimal resistance and excellent corrosion resistance, promoting smooth electrical conductivity. The mechanical service life extends to 20 million cycles, providing extended operational reliability for demanding applications.

The SPDT contact configuration supports switching between two circuits, enhancing versatility. The PCB pin terminals facilitate easy mounting and secure electrical connections. Coil resistance is specified at 848 ohms, with a fast response time conducive to rapid switching requirements.

Standards and approvals include cUL, GL, GOST, UL, VDE-PZI, and CSA, confirming compliance with international quality and safety norms. The product is manufactured in the Czech Republic and belongs to the REL-MR-12DC/21 series.

Operates with a 12V DC coil and features 6A switching current capacity. SPDT contact configuration for flexible switching applications. Compact size and PCB pin terminals for easy board mounting. Silver alloy contacts ensure high conductivity and corrosion resistance.

Wide operating temperature range from -40°C to 85°C for harsh environments. Robust mechanical life of 20 million switching cycles. Certified to international standards including cUL, GL, GOST, UL, VDE-PZI, CSA. Manufactured in Czech Republic with reliable build quality.

This relay is suitable for use in industries such as manufacturing automation, telecommunications systems, automotive electronics, and other applications requiring high reliability power switching. Enhance your PCB designs with the compact and efficient Phoenix Contact 2961150 PCB Power Relay.

Explore more high-quality relays and electronic components at EnvMart to support your industrial and technological needs.

Explore more products in our Power Relays category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The coil voltage of this power relay is 12V DC, allowing for wide compatibility in various applications.

This model supports a maximum switching current of 6A, making it suitable for demanding electrical loads.

It features a Single Pole Double Throw (SPDT) contact configuration, which allows for versatile circuit control.

The relay has compact dimensions of 5mm in width, 28mm in height, and 15mm in depth, facilitating easy integration into PCBs.

It operates reliably within a temperature range of -40°C to 85°C, ensuring performance stability in harsh environments.

The contacts are made of silver alloy, which provides excellent conductivity and corrosion resistance.

The mechanical service life is rated at 20 million cycles, providing extended reliability for demanding applications.

This relay complies with several international standards, including cUL, GL, GOST, UL, VDE-PZI, and CSA.

It uses PCB pin terminals for secure mounting on printed circuit boards, ensuring reliable electrical connections.

The coil resistance is specified at 848 ohms, which is suitable for its operational requirements.

The maximum switching voltage is 250V for both AC and DC applications, making it versatile for different electrical systems.

This relay is suitable for use in manufacturing automation, telecommunications systems, automotive electronics, and other applications requiring high reliability power switching.
