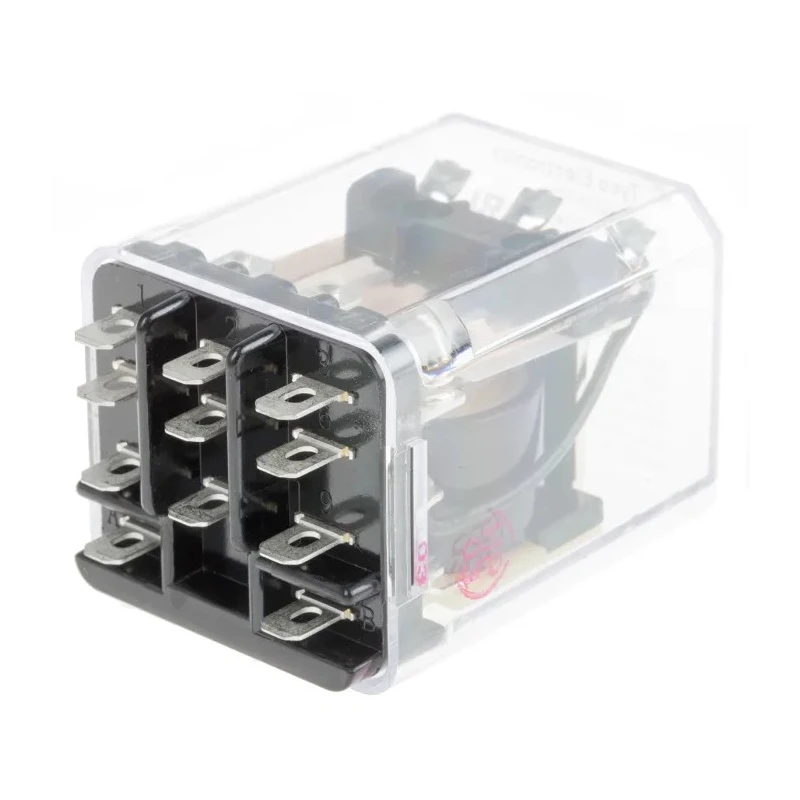

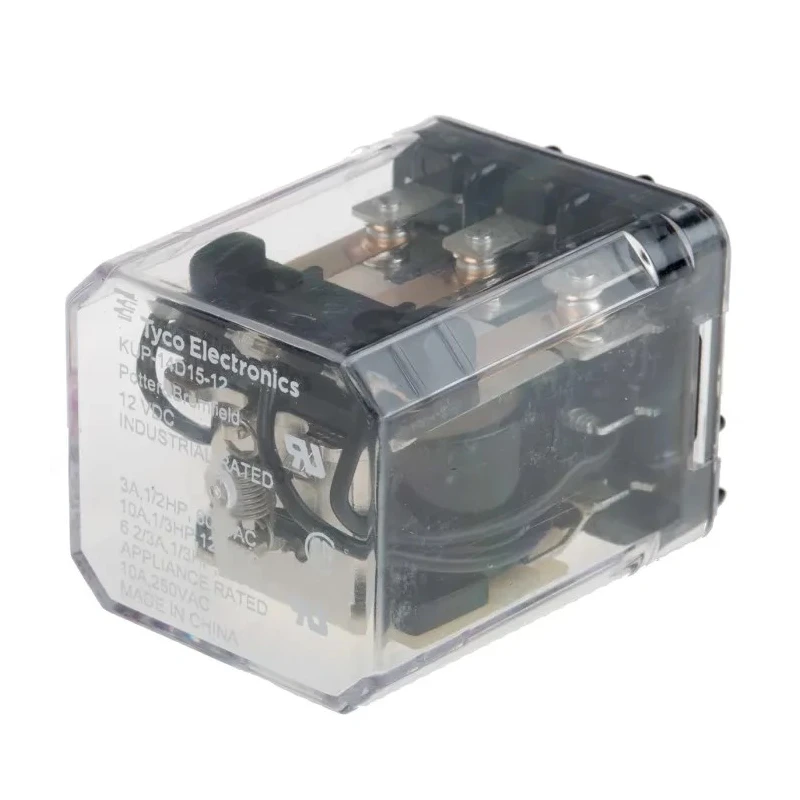

TE Connectivity Power Relay 12V DC Coil 10A Switching Current 3PDT KUP-14D15-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 48.4mm |
| Length | 38.9mm |
| Model | KUP-14D15-12 |
| Width | 35.7mm |
| Contact Material | Silver Alloy |
| Series | KUP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 120Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.2W |
| Switching Power | 1.2W |
Key Features
- The relay includes a KUP series panel plug-in design with bracket mounting.
- It has quick connect solder terminals measuring 4.75mm for easy installation.
- The coil resistance is precisely 120 ohms, ensuring efficient operation.
- This relay is suitable for temperatures ranging from -45°C to 70°C.
- The contact material is silver alloy, optimized for durability and conductivity.
- It complies with UR, UL, and CSA standards for safety and quality.
- Compact dimensions of 38.9mm length, 35.7mm width, and 48.4mm height make it versatile for various applications.
- Low coil power consumption of 1.2W helps improve energy efficiency in systems.
Product Description
TE Connectivity KUP-14D15-12 power relay is an industrial-grade electrical component designed for reliable switching in automation and electrical control systems. It operates with a 12V DC coil voltage and supports a switching current of 10A, making it ideal for robust power relay applications.
This relay features a 3PDT (Triple Pole Double Throw) contact configuration, allowing multiple circuits to be switched simultaneously within control panels or machinery. The relay belongs to the KUP series and comes with a panel plug-in design housed in an enclosed bracket mounting case, providing secure installation and protection in industrial environments.
Designed with 4.75mm (0.187") quick connect/solder type terminals, it allows for swift wiring and replacement. The coil's resistance is rated at 120 ohms, with coil power consumption of only 1.2 watts, which enhances overall system efficiency.
Operating temperature ranges from -45°C to a maximum of 70°C, ensuring reliable performance even in harsh conditions. Contacts are made of silver alloy, enhancing conductivity and providing durable switching capability.
The relay meets industry safety standards including UR, UL, and CSA approvals, ensuring compliance for commercial and industrial applications. The compact form factor measures 38.9mm in length, 35.7mm in width, and 48.4mm in height.
It is suited for use in industrial automation, control panels, HVAC systems, manufacturing equipment, and electrical signal conditioning. The KUP-14D15-12 is designed to facilitate easy panel installation and maintenance due to its plug-in feature and durable construction.
This relay offers dependable switching power rated at 1.2 watts and AC voltage switching capability up to 240V AC, providing flexibility across various electrical loads. This TE Connectivity power relay represents a high-quality, efficient solution for demanding relay applications, combining electrical precision and mechanical robustness.
Explore EnvMart's wide range of relays and electrical components to find complementary products for your electronic and industrial automation needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 12V DC coil voltage.
This model supports a maximum switching current of 10A.
It features a 3PDT (Triple Pole Double Throw) contact configuration.
The relay measures 38.9mm in length, 35.7mm in width, and 48.4mm in height.
The coil resistance is rated at 120 ohms.
It can operate within a temperature range of -45°C to 70°C.
It is equipped with quick connect solder terminals measuring 4.75mm.
The contacts are made of silver alloy, which enhances conductivity.
It complies with UR, UL, and CSA standards for safety and quality.
The coil power consumption is 1.2 watts, which helps improve energy efficiency.
It is suited for industrial automation, control panels, HVAC systems, and manufacturing equipment.
This relay can switch AC voltage up to 240V AC.
