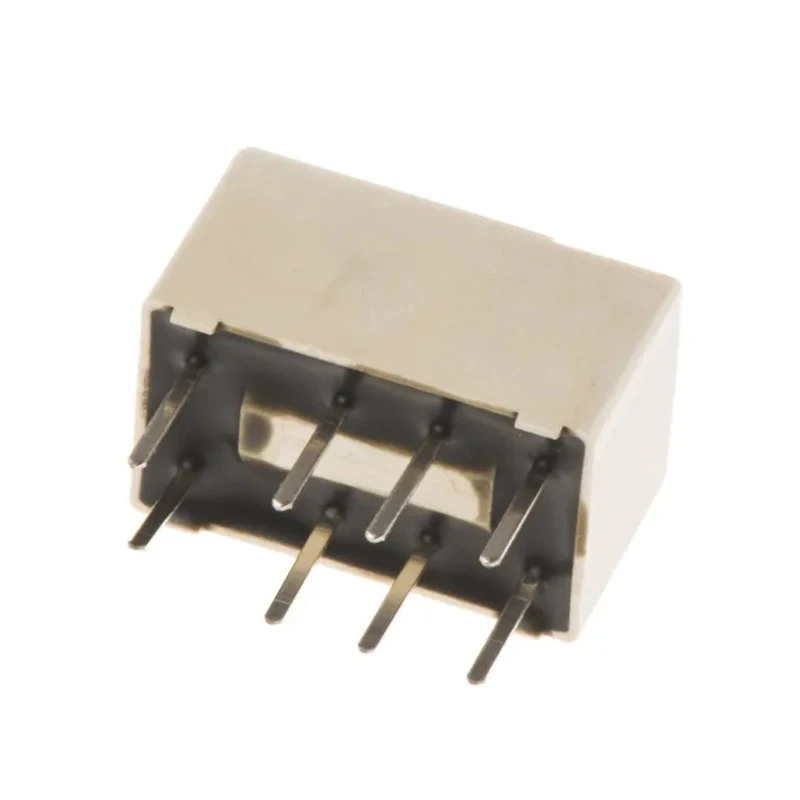

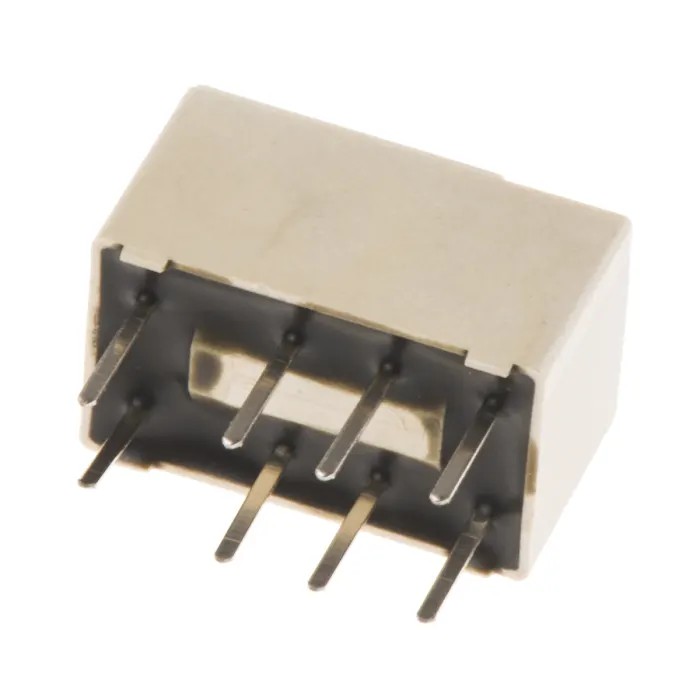

TE Connectivity PCB Signal Relay 12V DC Coil 2A Switching Current DPDT IM Series 10x6x5.65 mm 1-1462038-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1935Brand: TE ConnectivityManufacturers Part No.: 1-1462038-7Distrelec Article No.: 30119682 |
| Coil Resistance | 1000Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- Features a slimline IM series design with low profile size of 10x6x5.65 mm.
- Gold plated bifurcated contacts ensure reliable electrical connectivity.
- Hermetically sealed and IP67 rated for protection against environmental factors.
- Operates reliably between -40°C to 85°C with high mechanical shock resistance.
- Low coil power consumption of 140mW supports energy-efficient operation.
- Designed for PCB mount with solder terminal type for secure installation.
- Excellent dielectric surge capability meeting Telcordia and ITU standards.
- Suitable for telecommunication, office, automotive, and medical equipment applications.
Product Description
TE Connectivity 1-1462038-7 PCB Signal Relay is a high-quality IM series relay providing a 12V DC coil voltage and a 2A switching current with a DPDT contact configuration. It is designed for compact PCB mounting with dimensions of 10mm length, 6mm width, and 5.65mm height, occupying minimal board space of 60mm².
This slimline relay features gold plated bifurcated contacts which provide consistent and reliable electrical connectivity. The relay is hermetically sealed and rated IP67, ensuring resistance to dust and moisture ingress for dependable performance in demanding environments.
It operates across a temperature range from -40°C to 85°C and exhibits exceptional mechanical shock resistance up to 300G functional and 500G survival, making it suitable for industrial and harsh environment applications.
The coil power is kept low at 140mW, supporting energy-efficient designs. The relay also meets high dielectric surge requirements with a surge protection of 1500V between open contacts and 2500V between coil and contacts, compliant with Telcordia GR 1089, FCC Part 68, and ITU-T K20, K21, and K45 standards.
This product is ideal for various industrial, telecommunications, automotive, medical, office, and test and measurement equipment applications where precise and reliable switching is essential.
Features a slimline IM series design with low profile size of 10x6x5.65 mm. Gold plated bifurcated contacts ensure reliable electrical connectivity. Hermetically sealed and IP67 rated for protection against environmental factors.
Operates reliably between -40°C to 85°C with high mechanical shock resistance. Low coil power consumption of 140mW supports energy-efficient operation. Designed for PCB mount with solder terminal type for secure installation.
Excellent dielectric surge capability meeting Telcordia and ITU standards. Suitable for telecommunication, office, automotive, and medical equipment applications. Explore more high-quality relays and signal conditioning products within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current of 2A.
This model measures 10mm in length, 6mm in width, and 5.65mm in height.
The coil voltage for this relay is 12V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The relay operates reliably between -40°C and 85°C.
The coil power consumption is 140mW.
This relay is designed for PCB mounting with solder terminal type for secure installation.
Yes, it is hermetically sealed and rated IP67 for protection against dust and moisture ingress.
It meets Telcordia GR 1089, FCC Part 68, and ITU-T K20, K21, and K45 standards.
The maximum switching voltage is 220V DC and 250V AC.
The contacts are made of gold plated material, ensuring reliable electrical connectivity.
This relay is suitable for telecommunications, office, automotive, medical equipment, and test and measurement applications.
