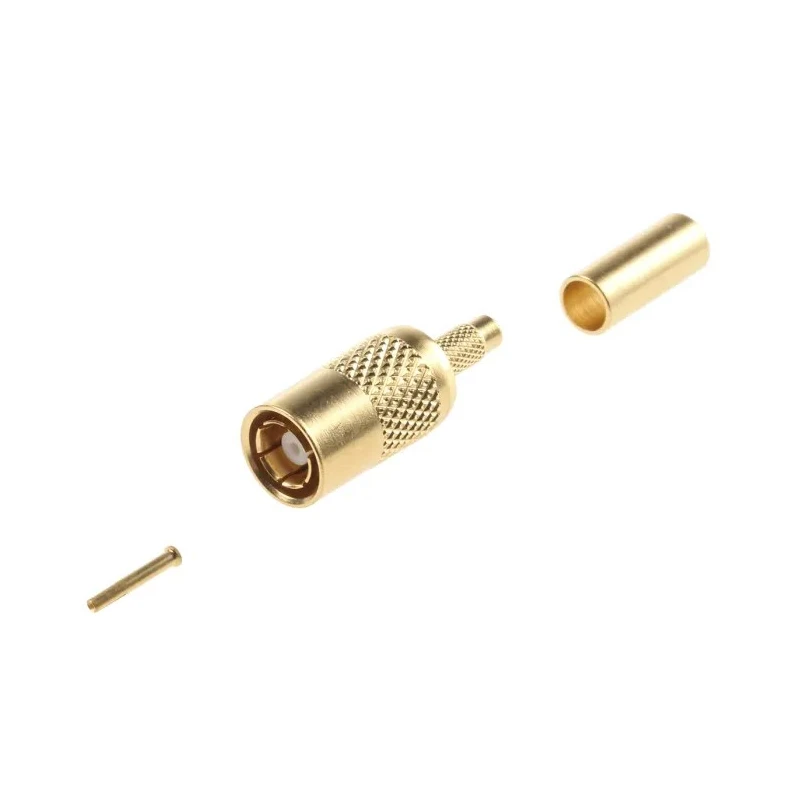

TE Connectivity SMB Series Coaxial Connector Cable Male SMB 50 Ω Straight Body Crimp 413985-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity SMB Series Coaxial Connector Cable Male SMB 50 Ω Straight Body Crimp 413985-1

Name: TE Connectivity SMB Series Coaxial Connector Cable Male SMB 50 Ω Straight Body Crimp 413985-1
Brand: TE Connectivity
SKU: 356921
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Size	Standard
Brand	TE Connectivity
Orientation	Straight
Model	413985-1
Mount Type	Cable
Operating Frequency	4GHz
Contact Material	Brass
Series	SMB
Termination Type	Crimp
Maximum Operating Temperature	165°C
Cable Type	RG174, RG188, RG-316
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	713-1108P Brand: [TE Connectivity](https://in.rsdelivers.com/brands/te-connectivity)Manufacturers Part No.: 413985-1
Contact Plating	Gold over Nickel
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	SMB
Body Plating	Gold

Key Features

This male SMB coaxial connector has a 50 ohm impedance suitable for high frequency signals.
The straight body design with crimp termination offers ease of installation on RG174, RG188, and RG-316 cables.
Gold plated body and gold over nickel contacts ensure low signal loss and corrosion resistance.
Operating frequency supports up to 4 GHz, ideal for RF and microwave applications.
The connector supports a temperature range from -65°C to 165°C for versatility in harsh environments.
Contact material is brass with gold over nickel plating for durability and conductivity.
Standard size connector type SMB with normal polarity and a hexagonal crimp sleeve for secure crimps.
No bulkhead mounting; designed for cable mount applications in electronic systems.

Product Description

TE Connectivity 413985-1 SMB Series Coaxial Connector Cable is a high-performance cable mount coaxial connector designed for signal integrity and durability in RF systems. Featuring a male SMB type with a straight body and crimp termination, it is compatible with RG174, RG188, and RG-316 cables. The connector has a characteristic impedance of 50 ohms and supports an operating frequency of up to 4 GHz, making it suitable for various communication and electronic test equipment.

The body is plated with gold for excellent conductivity and corrosion resistance, while contacts are brass plated with gold over nickel to ensure long-term reliability and low insertion loss. It operates effectively in harsh temperature environments, ranging from -65°C minimum to a maximum of 165°C, supporting industrial and laboratory conditions.

The product's crimp termination, including a hexagonal crimp sleeve, allows for secure and consistent cable connection, enhancing production efficiency in assembly environments. It features normal polarity and does not include a bulkhead mount, emphasizing cable mount usage.

This coaxial connector is ideal for use in industrial electronics, telecommunications, laboratory testing, and manufacturing processes requiring reliable high-frequency cable connections. Its straight body design facilitates easy routing and installation in tight spaces.

This SMB connector is part of the TE Connectivity SMB gold plated series designed for quick connect/disconnect applications. Compatible with standard RG174, RG188, and RG-316 cables, offering versatility. The gold plating on the body and contacts ensures signal clarity and corrosion resistance.

Supports operating temperatures from -65°C to 165°C, suitable for harsh environments. Provides 50 ohm impedance for consistent RF performance up to 4 GHz frequency. Crimp termination style with a hexagonal crimp sleeve enhances assembly reliability.

Male straight connector type with normal polarity. No bulkhead mount, designed solely for cable mounting applications. Explore a broad range of coaxial connectors and cables at EnvMart for all your electronic component needs.

Explore more products in our Electronic Components, Power & Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a characteristic impedance of 50 ohms, making it suitable for high-frequency signal applications.

It supports an operating frequency of up to 4 GHz, ideal for RF and microwave applications.

It features a crimp termination style, which includes a hexagonal crimp sleeve for secure connections.

The contact material is brass, and it is plated with gold over nickel to ensure low signal loss and corrosion resistance.

No, this model is designed solely for cable mount applications and does not include bulkhead mounting capabilities.

It has a straight body orientation, facilitating easy routing and installation in tight spaces.

The connector features a male contact gender, making it suitable for specific connection requirements in electronic systems.

The body is plated with gold, which enhances conductivity and provides corrosion resistance.

This connector is manufactured in India, ensuring compliance with relevant standards.

It is suitable for use in industrial electronics, telecommunications, laboratory testing, and manufacturing processes requiring reliable high-frequency connections.
